OH531A Drop-in Circulator

← Back to circulator catalogDrop-in RF circulator

1805–1880 MHz · 0.30 dB insertion loss max.
20 dB isolation min. · 100 W

OH531A-1805-1880

SKU: OHYH531A-1805-1880 Categories: Circulators, Drop-In Series Circulators

Description

Technical specifications

1805–1880 MHzFrequency range
0.30 dB max.Insertion loss
20 dB min.Isolation
Frequency range
1805–1880 MHz
Insertion loss
0.30 dB maximum
Isolation
20 dB minimum
Return loss
20 dB minimum
Power rating
100 W
IMD3
−62 dBc at 2 × 10 W
Operating temperature
−40 to +85 °C
Body dimensions
12.70 × 12.70 × 8.00 mm
Mounting holes
4 × M2 through; 9.70 mm pitch
RF tab height above base
3.0 ± 0.3 mm
RF tab width / extension
0.60 mm / 2.0 ± 0.3 mm

Circulator details

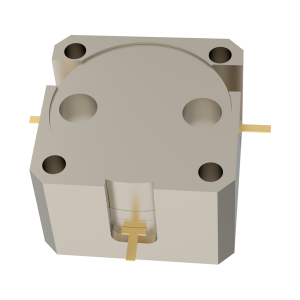

OH531A  —  1805–1880 MHz  —  Three-port drop-in circulator

The OH531A-1805-1880 is an embedded stripline circulator with three RF tab connections. The specified insertion loss is 0.30 dB maximum, with isolation and return loss of 20 dB minimum.

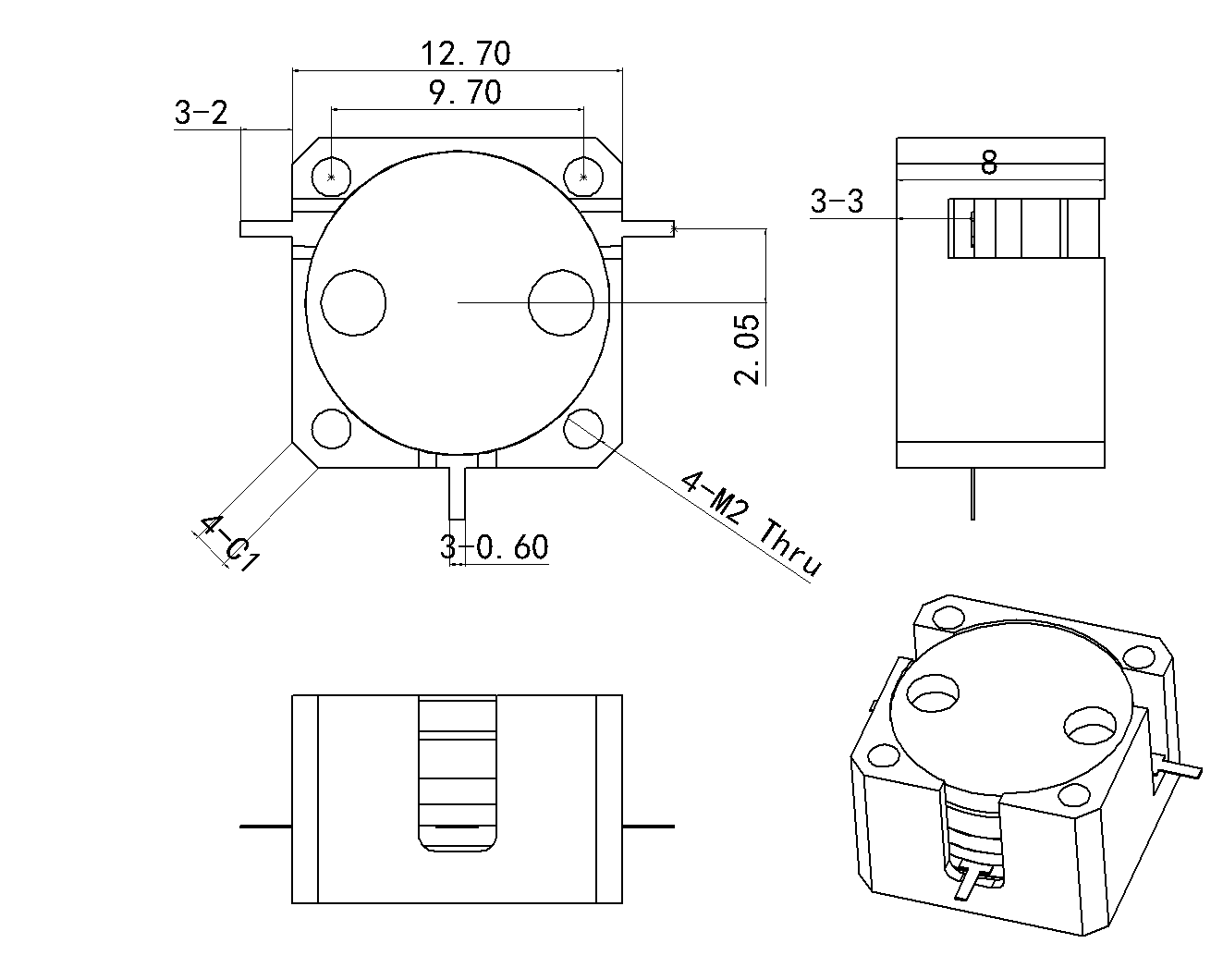

Mechanical outline

OH531A solid orthographic dimension views
Top, side, front and isometric views. Dimensions in mm; RF tab height: 3.0 ± 0.3 mm above the base.

Performance illustrations

S11

S11 frequency-remapped illustration

S11 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
1805 -22.9990
1880 -32.2540

S21

S21 frequency-remapped illustration

S21 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
1805 -0.2069
1880 -0.1990

S22

S22 frequency-remapped illustration

S22 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
1805 -21.4400
1880 -24.7660

S12

S12 frequency-remapped illustration

S12 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
1805 -26.0390
1880 -31.0090

Product datasheet

Full specifications, solid mechanical dimensions and frequency-remapped performance illustrations.

Download PDF datasheet

OH531A Drop-in Circulator-Outline
