1.805 GHz to 2.17 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Isolator-OHYG505M-1805-2170
$0.00
Embedded Stripline Isolator
Low Insertion Loss
High Isolation
Wide Operating Temperature Range
High Forward/Reverse Power Handling
- Description
- Datasheet

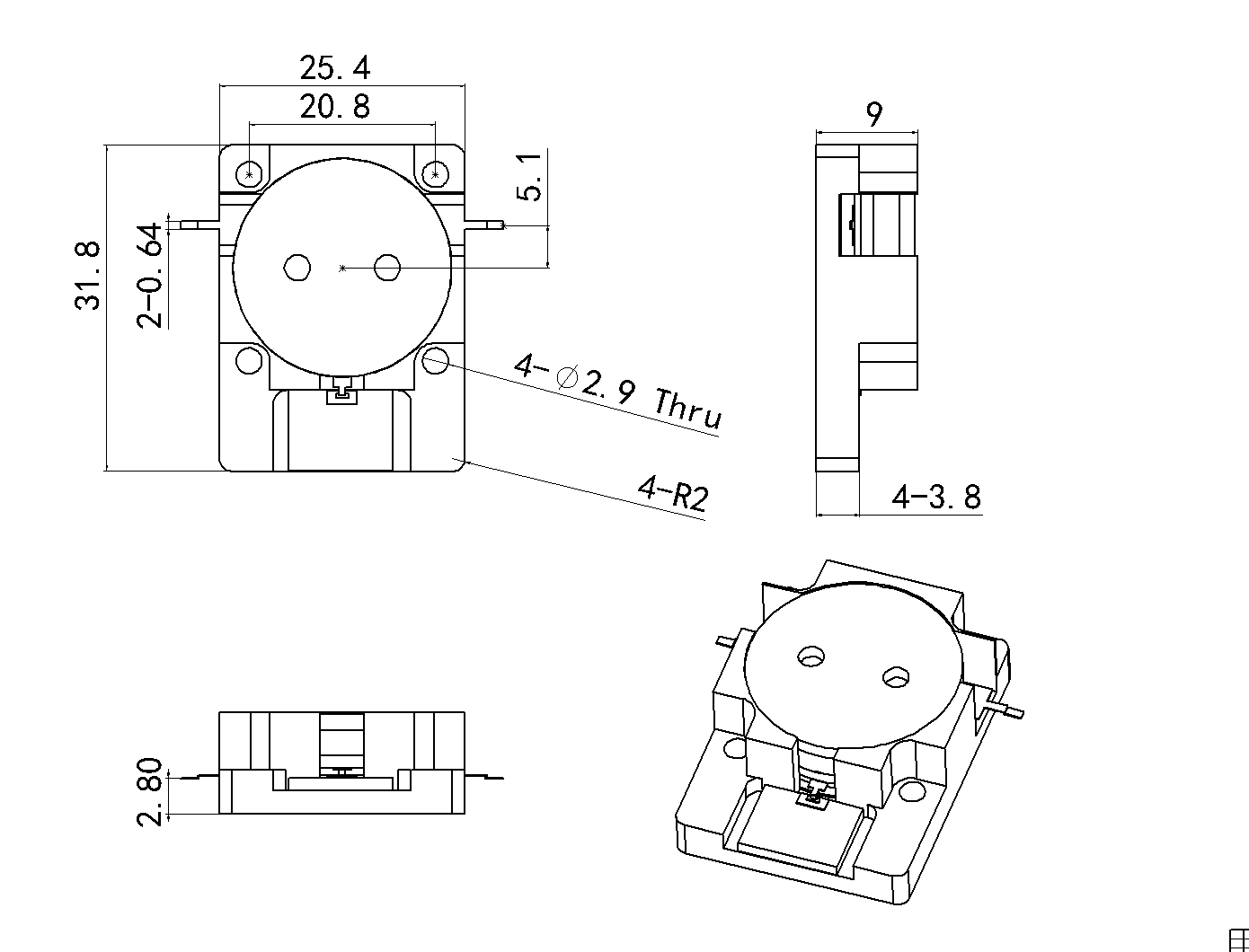

- Outline
- Reviews (0)
Description
The product named OHYG505M-1805-2170 is high-performance embedded isolator designed for stripline applications, offering excellent isolation and low insertion loss across the 1805-2170 MHz frequency range.
OHYG505M-1805-2170 |
|
|
1.805 GHz to 2.17 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Isolator-OHYG505M-1805-2170 |
|
Property |
Value |
|
Frequency (MHz) |
1805-2170 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Embedded Stripline Isolator |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
Wide Operating Temperature Range |
|
|
High Forward/Reverse Power Handling |
|
Applications |
|
|
Designed for reliable signal isolation in communication systems. |
|
Reviews
There are no reviews yet.
