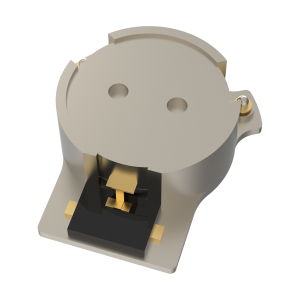

1.805 GHz to 2.17 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Isolators Isolator-OHYG111B-1805-2170
$0.00
Surface-mounted design
Stripline structure
Low insertion loss
High isolation
High power handling capacity
Wide operating temperature range
- Description
- Datasheet

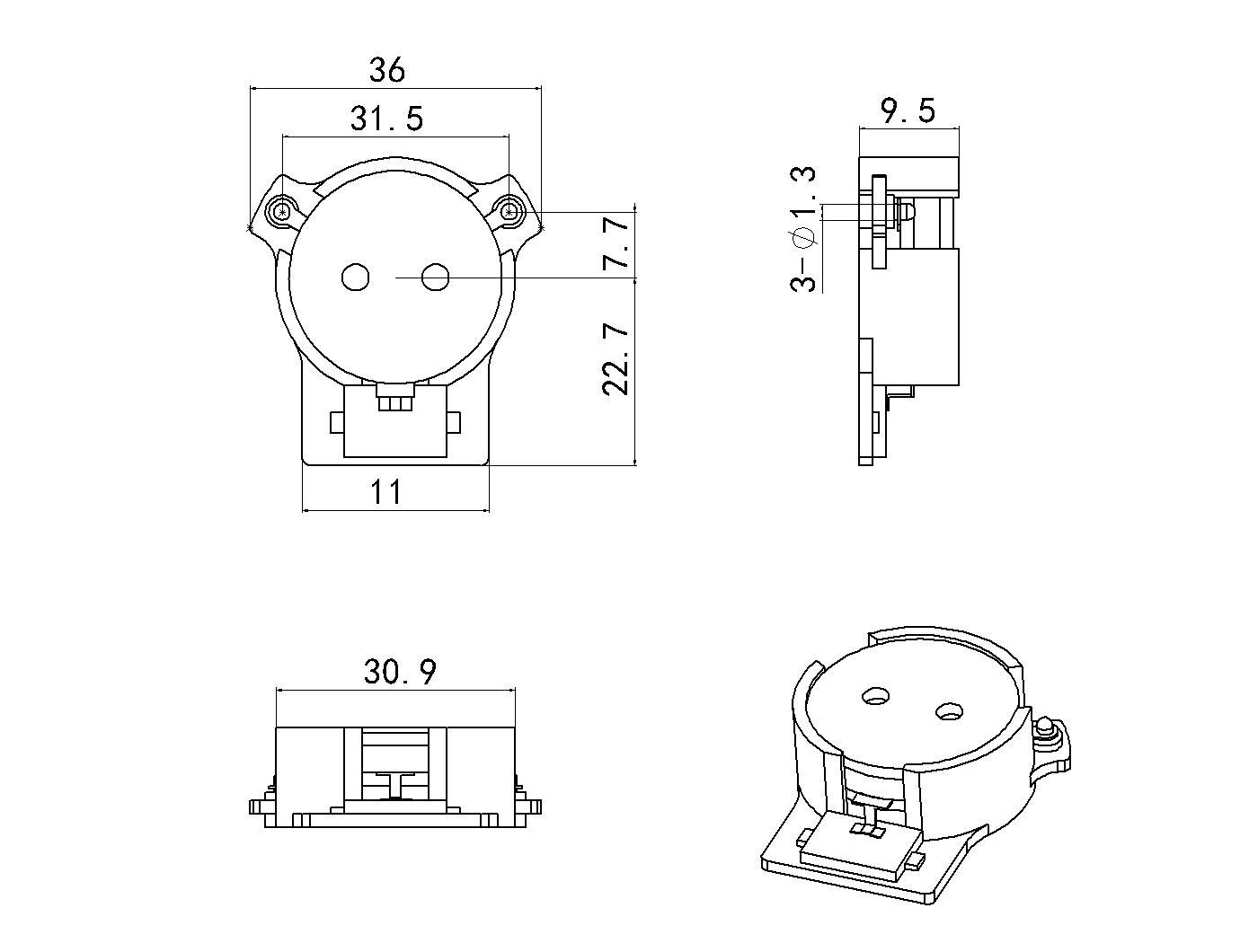

- Outline
- Reviews (0)
Description
The product named OHYG111B-1805-2170 is high-performance stripline surface-mounted isolator designed for robust signal conditioning and power management in wireless communication systems.
OHYG111B-1805-2170 |
|
|
1.805 GHz to 2.17 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Isolators Isolator-OHYG111B-1805-2170 |
|
Property |
Value |
|
Frequency (MHz) |
1805-2170 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
50 to 200 |
Features |
|
|
Surface-mounted design |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High isolation |
|
|
High power handling capacity |
|
|
Wide operating temperature range |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
