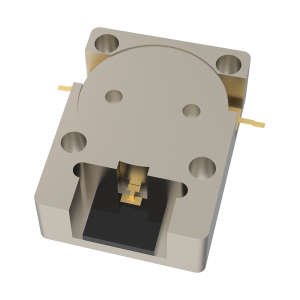

1.93 GHz to 2.02 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYG502H-1930-2020
$0.00
High Isolation
Low Insertion Loss
Compact Embedded Design
Excellent IMD3 Performance
Broad Operating Temperature Range
- Description
- Datasheet

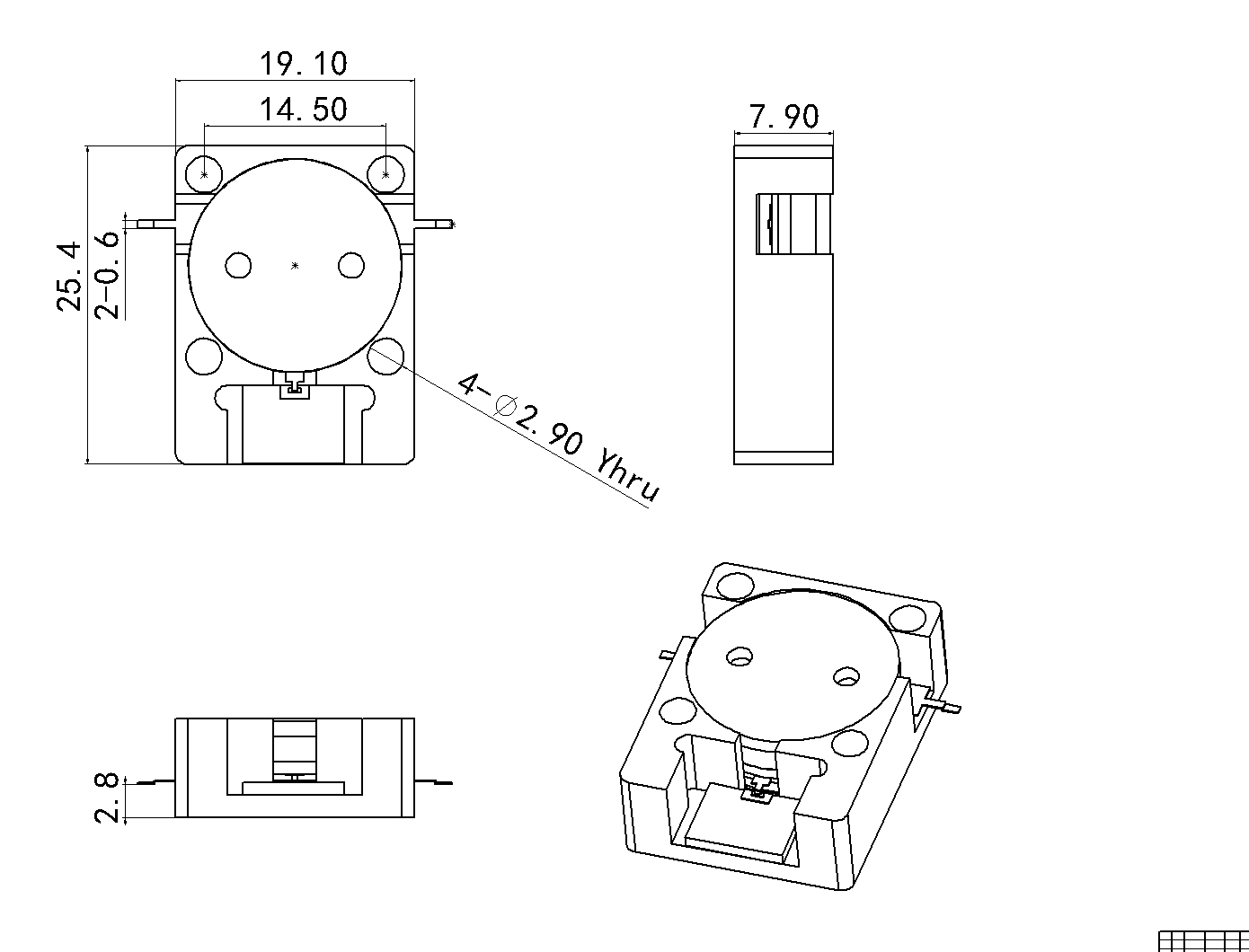

- Outline
- Reviews (0)
Description
The product named OHYG502H-1930-2020 is high-performance stripline embedded isolator designed for stable signal isolation in communication systems. It offers a compact footprint and reliable performance over a wide temperature range.
OHYG502H-1930-2020 |
|
|
1.93 GHz to 2.02 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYG502H-1930-2020 |
|
Property |
Value |
|
Frequency (MHz) |
1930-2020 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-69 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
High Isolation |
|
|
Low Insertion Loss |
|
|
Compact Embedded Design |
|
|
Excellent IMD3 Performance |
|
|
Broad Operating Temperature Range |
|
Applications |
|
|
Designed for reliable signal isolation in communication systems. |
|
