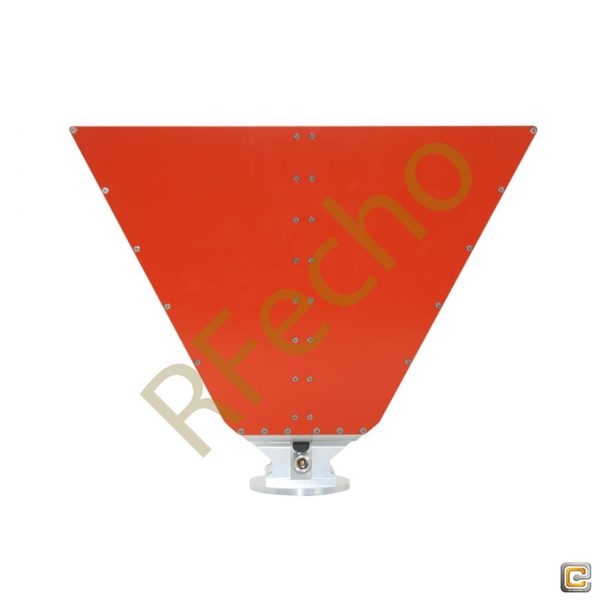

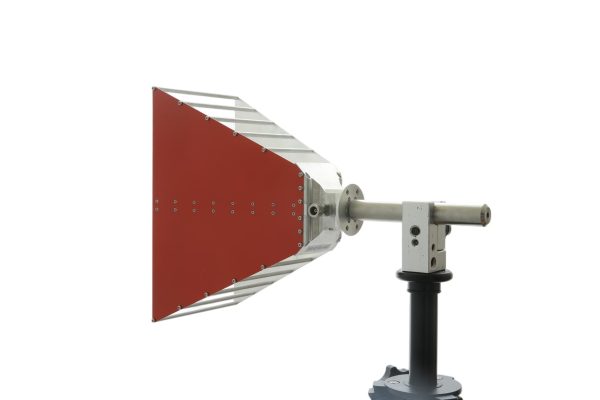

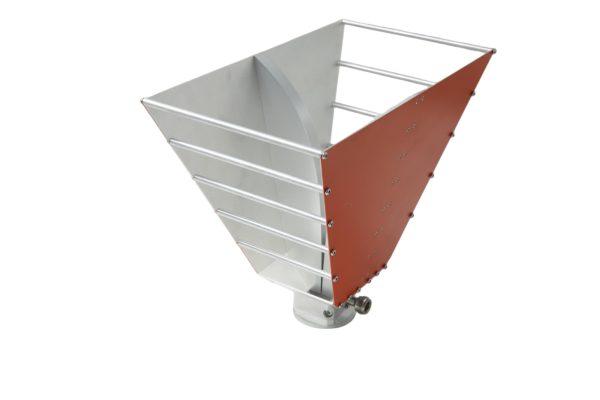

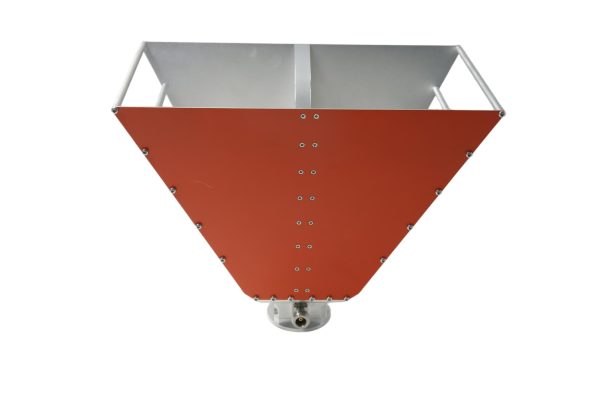

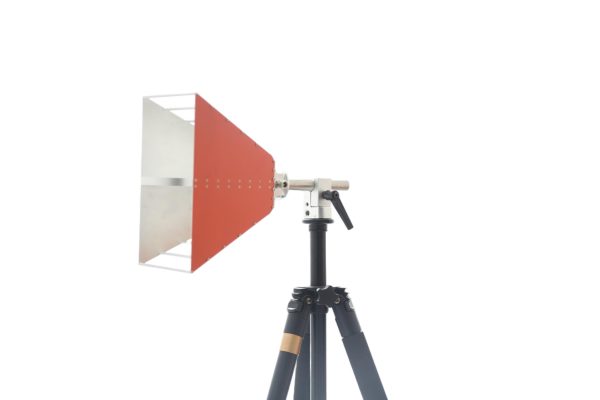

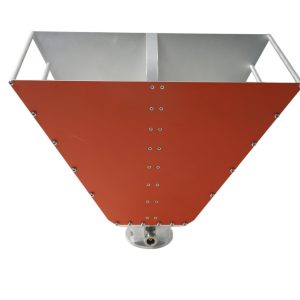

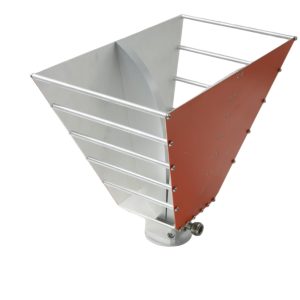

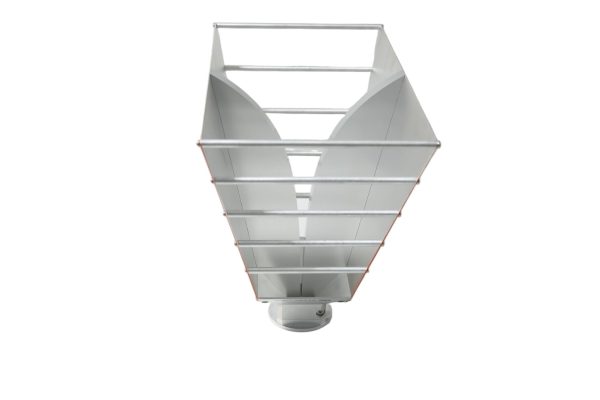

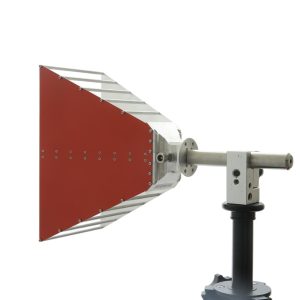

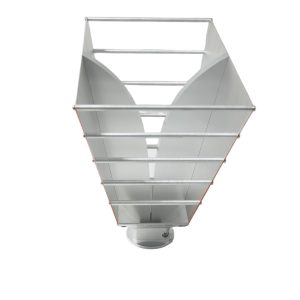

Ultra wide-band dual ridged horn antenna 0.8-12GHz
Gain: 6-15dBi.
VSWR: 2:1 MAX
Power handling: 500W Max
High gain combined with low VSWR
OBH-08120 Ultra wide-band dual ridged horn antenna is ideal for a variety of applications in the telecommunications, satellite, EMC, and radar sectors
- Description
- Datasheet

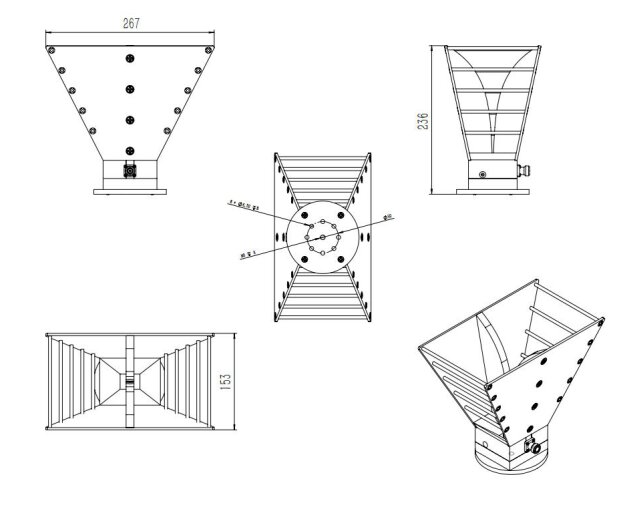

- Outline
- Reviews (3)
Description
The OBH-08120 Dual-Ridged Horn Antenna from RFecho showcases cutting-edge RF engineering, operating over a wide frequency range from 800MHz to 12GHz. The OBH-08120’s high gain combined with low VSWR ensures the accurate measurement of even weak signals and the generation of high field strengths with minimal return loss. At just 0.62kg, offering excellent portability for field deployments and mobile setups.
The OBH-08120 is ideal for a variety of applications in the telecommunications, satellite, EMC, and radar sectors. It is well-suited for telecommunications testing, covering key technologies such as 4G LTE, 5G NR Sub-6GHz, and Wi-Fi. This antenna’s broad frequency range ensures reliable performance for testing wireless communication systems up to 12GHz. In satellite communication, this antenna supports C-band and lower X-band operations, making it effective for testing uplink and downlink systems, although it is more suited to lower-frequency satellite applications. Additionally, it is highly reliable for EMC testing, enabling evaluation of devices’ electromagnetic compatibility across lower and mid-frequency ranges, ensuring compliance with industry standards. This antenna also performs well in radar system testing, particularly in systems that operate within the C-band and lower X-band, including weather, maritime, and military radar. Lastly, it is ideal for general RF and microwave testing, covering the 800MHz to 12GHz range and making it a versatile tool for RF engineers. Dual-Ridged Horn Antenna https://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/
Broadband Horn Antenna Specifications | |
| 6.4-15.8dBi Gain, 0.8 GHz to 12 GHz | |
| OBH-08120 | |
Property | Value |
| Min. Frequency (GHz) | 0.8 |
| Max. Frequency (GHz) | 12 |
| Gain(dBi) | 6.4-15.8 |
| VSWR (Typ.) | 1.5:1 |
| Polarization | Single Linear |
| Cross Polar Isolation (dB) | 50 |
| Impedance (Ω) | 50 |
Features | |
| Linear polarized with high polarization purity | |
| Frequency from 0.8 GHz to 12 GHz | |
| Low return loss / VSWR | |
| Wide bandwidth | |
| Uniform Gain | |
| High Power Handling Capability | |
| Covers a wide frequency band including L, S, C and X band | |
| Each antenna is calibrated individually in line with ANSI C63.5-2006 | |
