10.5 GHz to 10.9 GHz, 0.5 dB Insertion Loss, 20 dB Isolation, GWB Micro-strip Series Isolator-WG902A3
Micro-strip Series isolator with 10.5-10.9 GHz frequency range, 0.5 dB insertion loss, 20 dB isolation
- Description
- Datasheet
- Reviews (0)
Description

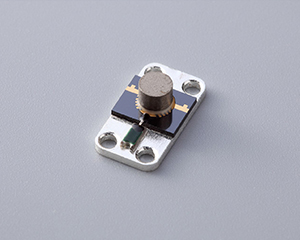

The WG902A3 is a high-performance micro-strip series designed for RF and microwave applications. It operates in the frequency range of 10.5-10.9 GHz with 0.5 dB maximum insertion loss and 20 dB minimum isolation.
WG902A3 |
|
|
10.5 GHz to 10.9 GHz, 0.5 dB Insertion Loss, 20 dB Isolation, GWB Micro-strip Series Isolator-WG902A3 |
|
Property |
Value |
|
Frequency (GHz) |
10.5-10.9 |
|
Bandwidth |
5% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.5 |
|
VSWR |
1.25 |
|
IMD3 (dBc) |
|
|
Power (W) |
10 |
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
GWB |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
surface-mount |
Features |
|
|
Frequency Range: 10.5-10.9 GHz |
|
|
Insertion Loss: 0.5 dB Max |
|
|
Isolation: 20 dB Min |
|
|
VSWR: 1.25 Max |
|
|
Power: 10 W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
