10.5 GHz to 40 GHz Rejection ≥50 dB @ DC-8.5 GHz High Pass Cavity Filter

10.5 GHz to 40 GHz Rejection ≥50 dB @ DC-8.5 GHz High Pass Cavity Filter

OHP-10500-40000:

  • Cut Off Frequency: 10.5GHz,
  • Pass Band Frequency: 10.5-40GHz
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥50 dB @ DC-8.5 GHz
SKU: OHP-10500-40000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-10500-40000:

  • Cut Off Frequency: 10.5GHz,
  • Pass Band Frequency: 10.5-40GHz
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥50 dB @ DC-8.5 GHz

PDF

Outline

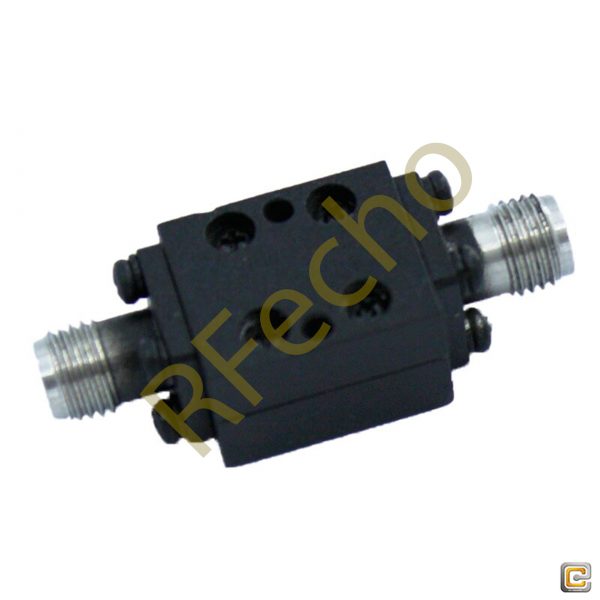

10.5 GHz to 40 GHz Rejection ≥50 dB @ DC-8.5 GHz High Pass Cavity Filter 01

Plot

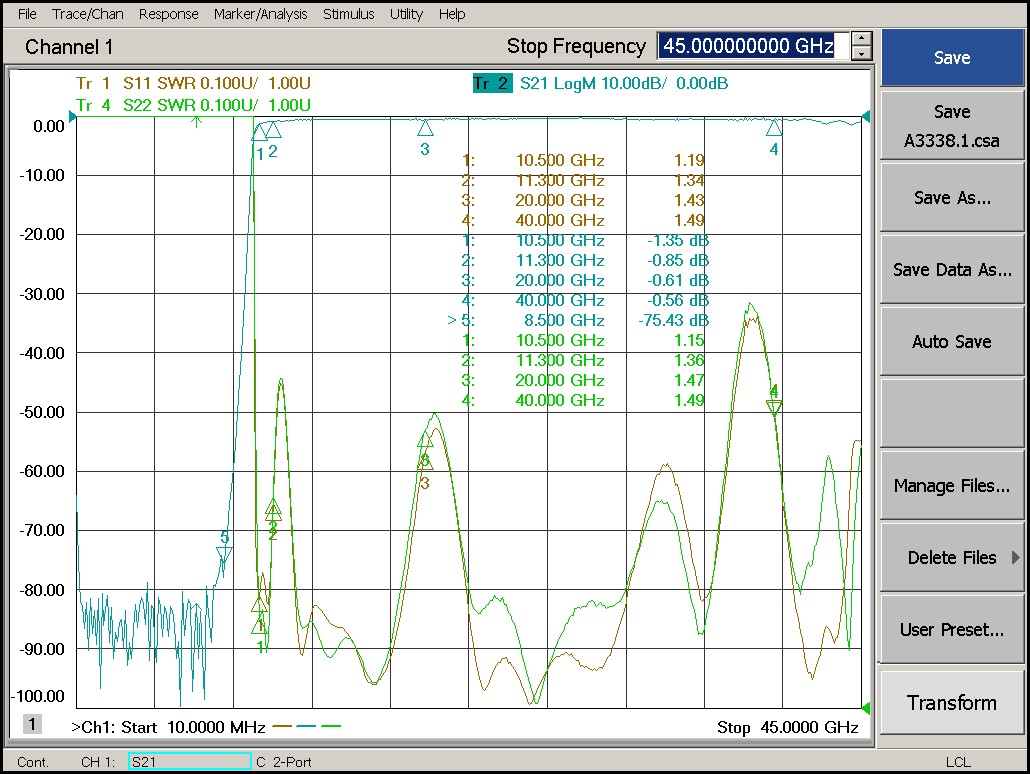

10.5 GHz to 40 GHz Rejection ≥50 dB @ DC-8.5 GHz High Pass Cavity Filter 02

Additional information

Weight 0.01 kg
Min. Pass Band Frequency (GHz)

10.5

Max. Pass Band Frequency (GHz)

40

Connection Type

2.92mm-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB@10.5~11.3GHz ≤1.0dB@11.3~40GHz

VSWR

≤1.6:1 @10.5~20GHz ≤1.8:1 @ 20~40GHz

Rejection

≥50 dB @ DC-8.5 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
