100 kHz to 40 GHz, 320 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY01-BH-ML
- Frequency range: 100 kHz to 40 GHz
- Maximum real-time bandwidth: 320 MHz
- Digital interfaces: Gigabit Ethernet (RJ45) and USB 3.0 (Type-C)
The OZY01-BH-ML combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and USB 3.0. Its maximum real-time bandwidth is 320 MHz, and its panorama scan speed is better than 2000 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OZY01-BH-ML combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and USB 3.0. Its maximum real-time bandwidth is 320 MHz, and its panorama scan speed is better than 2000 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.
| OZY01-BH-ML | |
| 100 kHz to 40 GHz, 320 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY01-BH-ML | |
| Property | Value |
|---|---|
| Frequency Range | 100 kHz to 40 GHz |
| Maximum Real-Time Bandwidth | 320 MHz |
| Primary Functions | FFM, PSCAN, FSCAN, MSCAN, MULTN, DPS, IQSTRM |
| Frequency Accuracy | Better than 0.5 ppm; better than 0.001 ppm (with GPS connected) |
| Phase Noise | -108 dBc/Hz at 10 kHz offset (1 GHz carrier frequency) |
| Noise Figure | ≤12 dB (100 kHz to 26499.99 MHz) ≤13 dB (26499.99 MHz to 40000 MHz) |
| Second-Order Intercept Point (IP2) | Better than 50 dBm |
| Third-Order Intercept Point (IP3) | Better than 20 dBm |
| IF Rejection | Better than 90 dB |
| Image Rejection | Better than 90 dB |
| Panorama Scan Speed | Better than 2000 GHz/s (RBW=25 kHz) |
| DDC Channel Configuration | 1 wideband channel (320 MHz) + 4 narrowband channels (500 kHz each), standard. Optional expansion increases the number of narrowband channels. |
| I/Q Data Acquisition | Single-packet mode: continuous I/Q data within each packet; 8 to 500,000,000 complex samples. 32 bits per complex sample: 16-bit I and 16-bit Q. Continuous mode: with Gigabit Ethernet output only, I/Q data continuity is guaranteed at 10 MHz bandwidth. With USB 3.0 accelerated transfer enabled, I/Q data continuity is guaranteed at 40 MHz bandwidth. Optional stream-to-disk: an internal high-speed disk buffers the data, guaranteeing continuous I/Q data at 320 MHz bandwidth. |
| Minimum Signal Duration for 100% Probability of Intercept (POI) | 100 ns |
| Communication Interfaces | Gigabit Ethernet (RJ45) and USB 3.0 (Type-C) |
| Power Consumption | ≤55 W ≤60 W (with stream-to-disk enabled) |

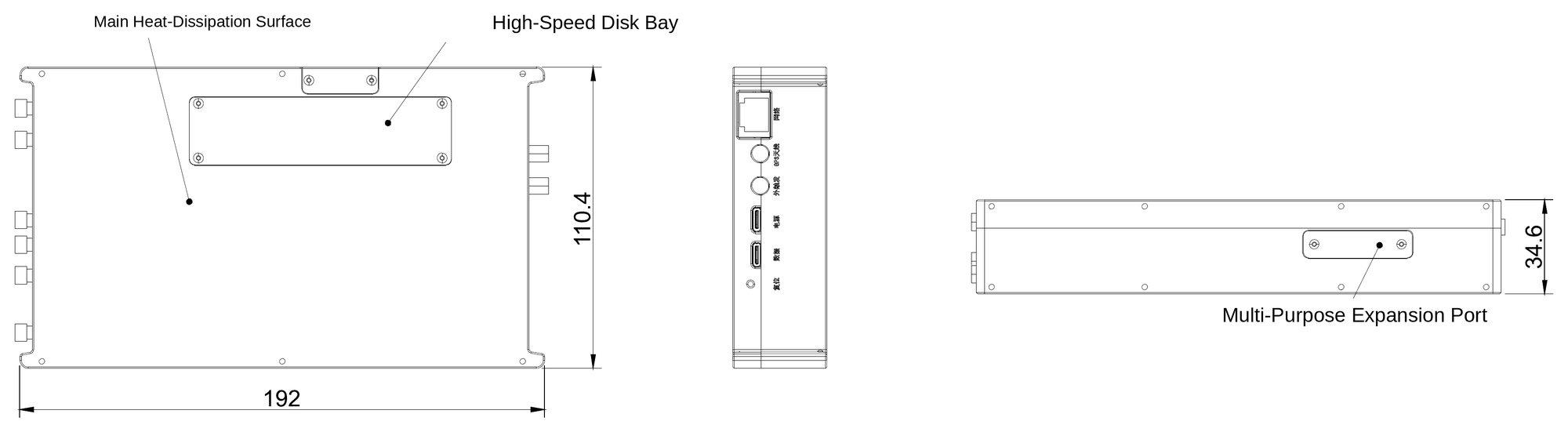

| Dimensions | 192 × 110.4 × 34.6 mm |
| Operating Temperature | -35 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Features | |
| |
| Typical Applications | |
| |
| Product-Family Overview | |
| The operating principle and features describe the overall product family. The listed performance figures do not apply to every model. For the specifications of this model, refer to the technical specifications on pages 2-3 of its datasheet. | |
| See page 4 of the datasheet for the operating principle and product-family highlights. | |
