11 GHz, TNC Female to SMA Female, Between Adapters

-17%

11 GHz, TNC Female to SMA Female, Between Adapters

$12 $10

Offer Ends In:
00Days11Hours55Minutes58Seconds

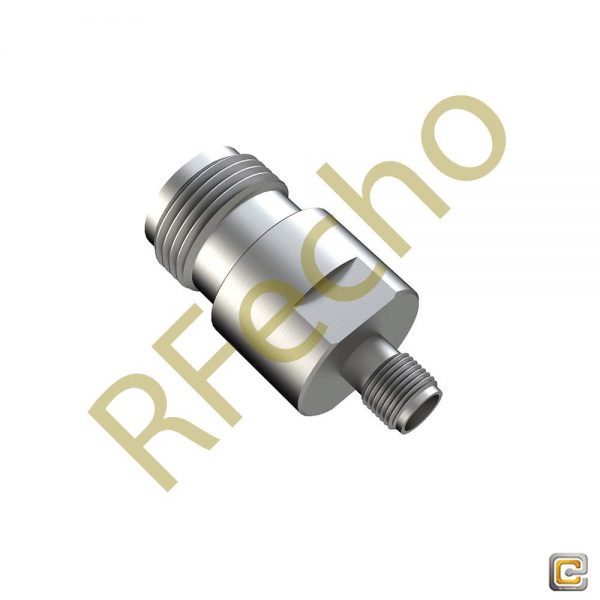

This model OA535500Z01 is TNC Female Straight to SMA Female Straight. This series TNC Female Straight to SMA Female Straight have the operating frequency of 11 GHz. Adapters that have a male to female or plug to jack configuration are known as connector savers.

Between Series Adapters are the passive components which are used to transfer signals from one coaxial connector interface to another with minimal losses. Between adapters have different connector configurations on either side of the adapter.

Description

PDF

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

11

VSWR (Max.)

1.15:1

Conector 1

NC

Gender 1

Female

Connector 1 Body Style

Straight

Conector 2

SMA

Gender 2

Female

Connector 2 Body Style

Straight

Durability (Cycle)

500

Impedance (Ω)

50
