1200Mbps PCIE/UART Wi-Fi 6 Module N280B-PRX

600.4Mbps USB2.0 Wi-Fi 6 Module N280E-U
1200Mbps SDIO3.0/UART Wi-Fi 6 Module N280B-SRX
0 out of 5
( There are no reviews yet. )

Main chipset: AIC8800M80X2P
Wi-Fi standard: Dual-band a/b/g/n/ac/ax
Interface (Wi-Fi/BT): PCIE/UART
Throughput: 1200Mbps
Dimension: 13.0 × 15.0 mm
Compact surface-mount module for embedded integration
1200Mbps Wi-Fi 6 module N280B-PRX supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.

SKU: N280B-PRX Category: Wi-Fi 6 Modules
Add to Wishlist

Description

Wi-Fi 6 Module Specifications

Dual-band a/b/g/n/ac/ax, 1200Mbps

N280B-PRX

Property

Value

Main Chipset

AIC8800M80X2P

Wi-Fi Standard

Dual-band a/b/g/n/ac/ax

Interface Wi-Fi/BT

PCIE/UART

Throughput

1200Mbps

Dimension (mm)

13.0 × 15.0

The N280B-PRX is a Wi-Fi 6 (Dual-band a/b/g/n/ac/ax) module built on the AIC8800M80X2P chipset. It delivers up to 1200Mbps over a PCIE/UART host interface. The module measures 13.0 × 15.0 mm, suiting space-constrained embedded designs.

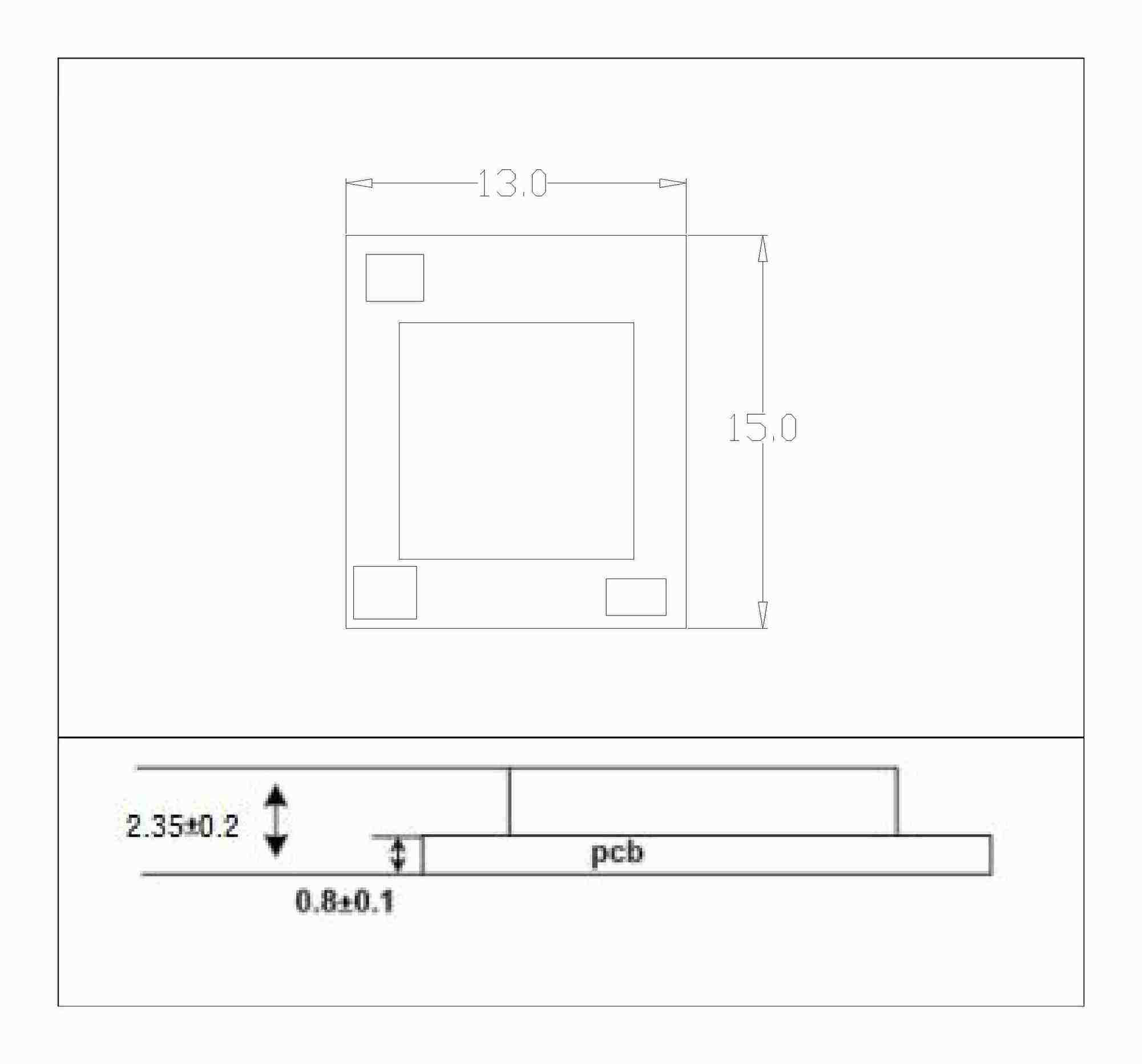

1200Mbps PCIE/UART Wi-Fi 6 Module N280B-PRX-Outline

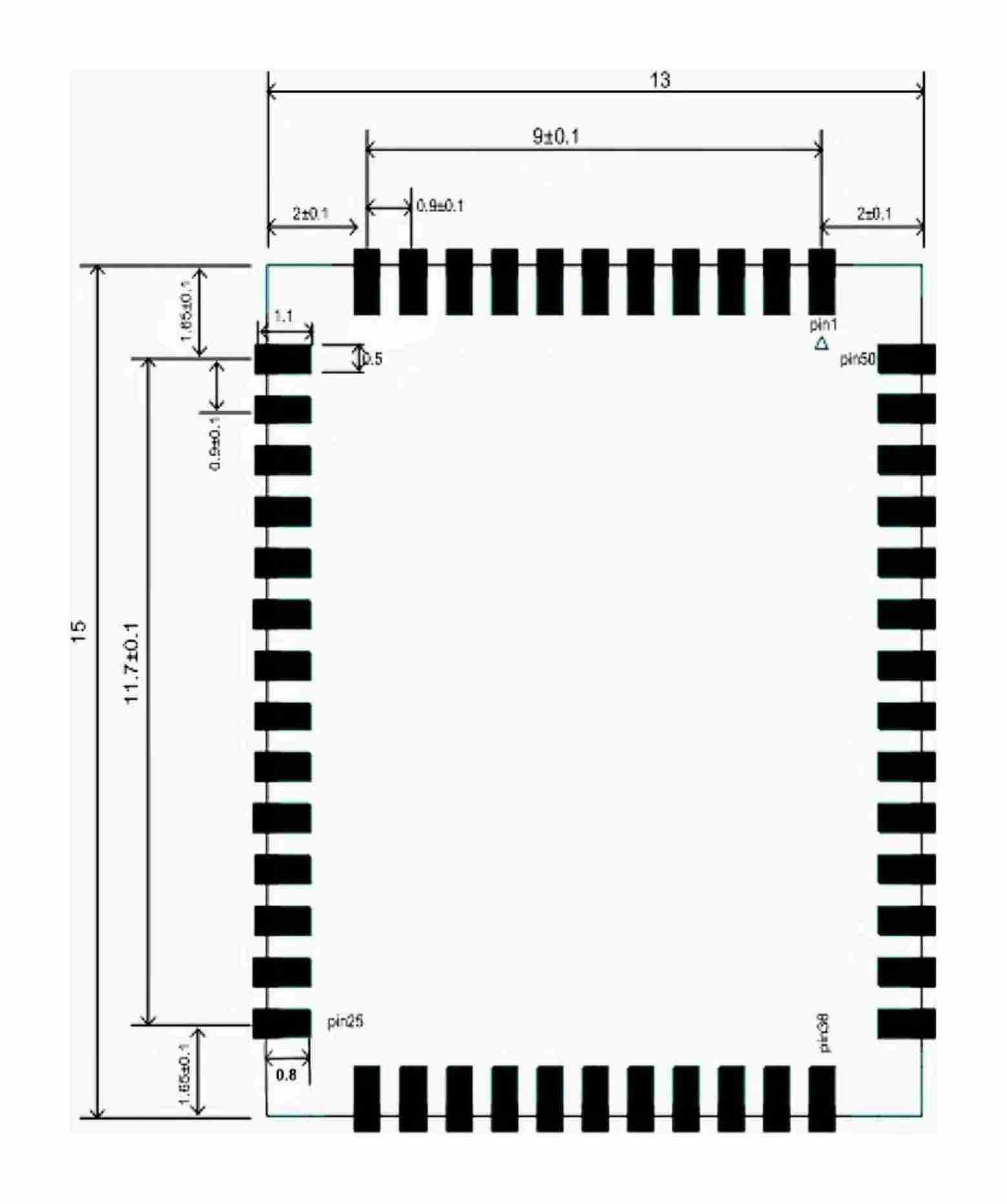

1200Mbps PCIE/UART Wi-Fi 6 Module N280B-PRX-Outline
