1200Mbps SDIO/Uart Wi-Fi 6 Module 6252B-SRB
Main chipset: RTL8852BS
Wi-Fi standard: a/b/g/n/ac/ax
Interface (Wi-Fi/BT): SDIO/Uart
Throughput: 1200Mbps
Dimension: 13.0 × 15.0 mm
Compact surface-mount module for embedded integration
1200Mbps Wi-Fi 6 module 6252B-SRB supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.
- Description
- Datasheet

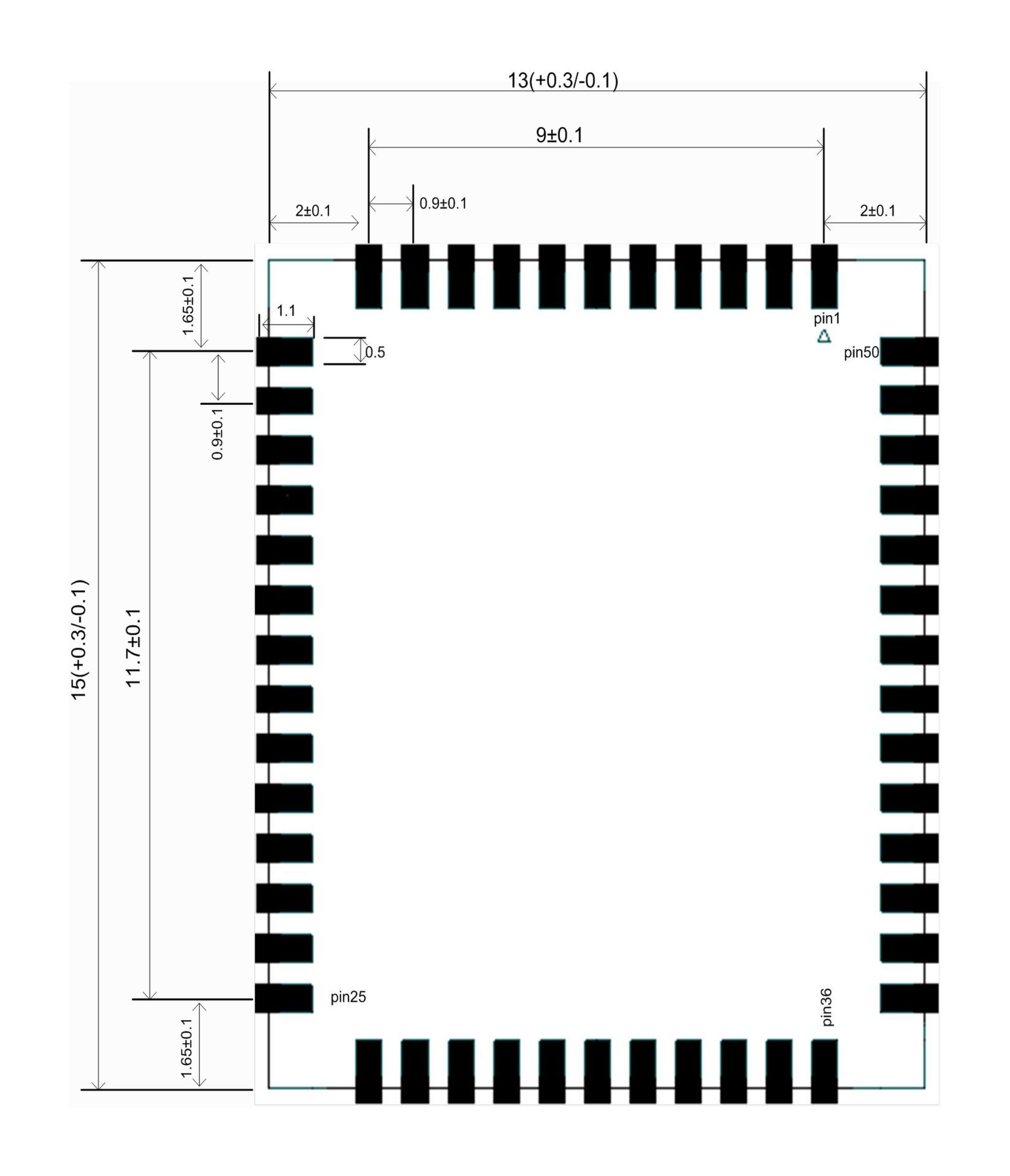

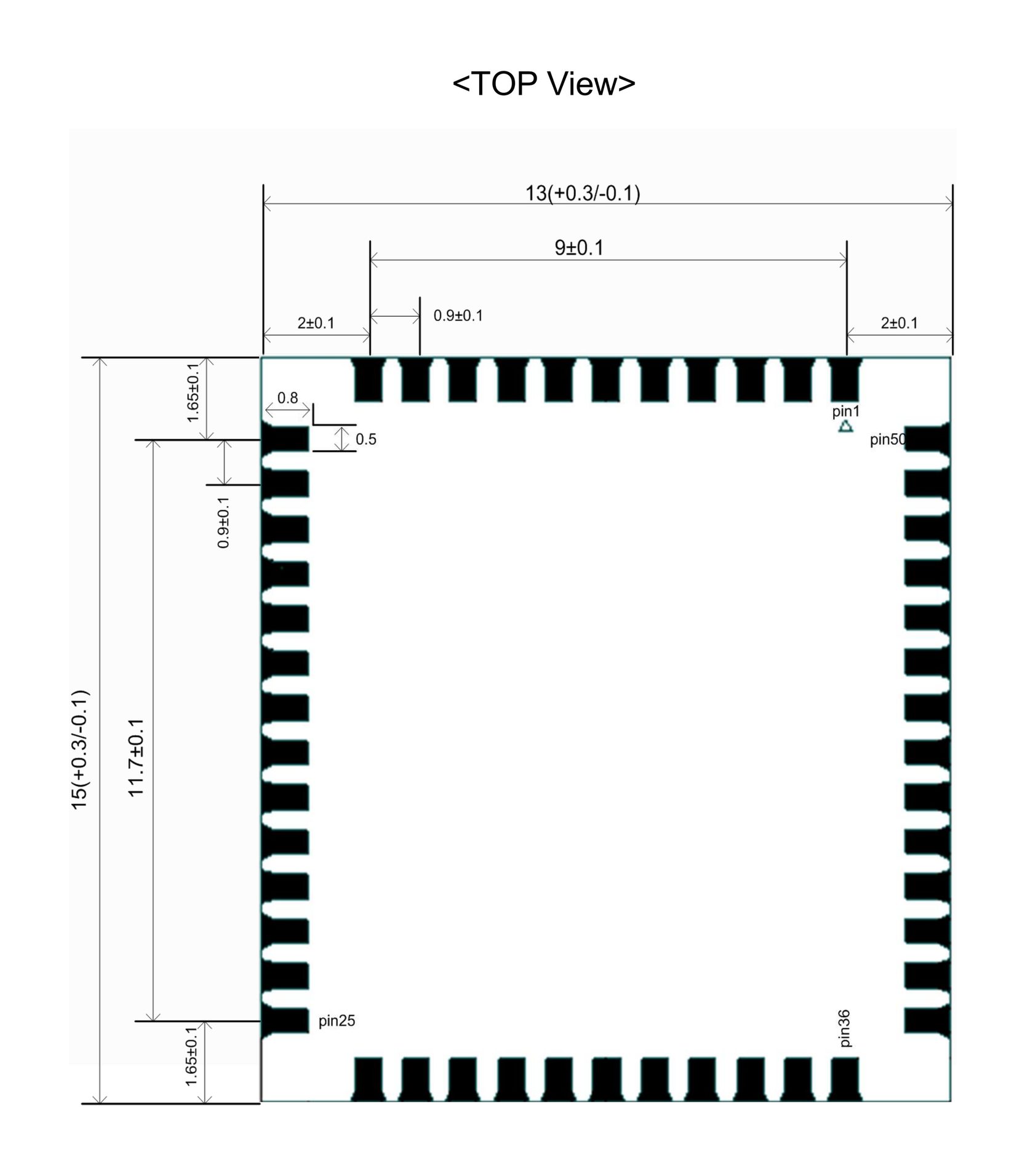

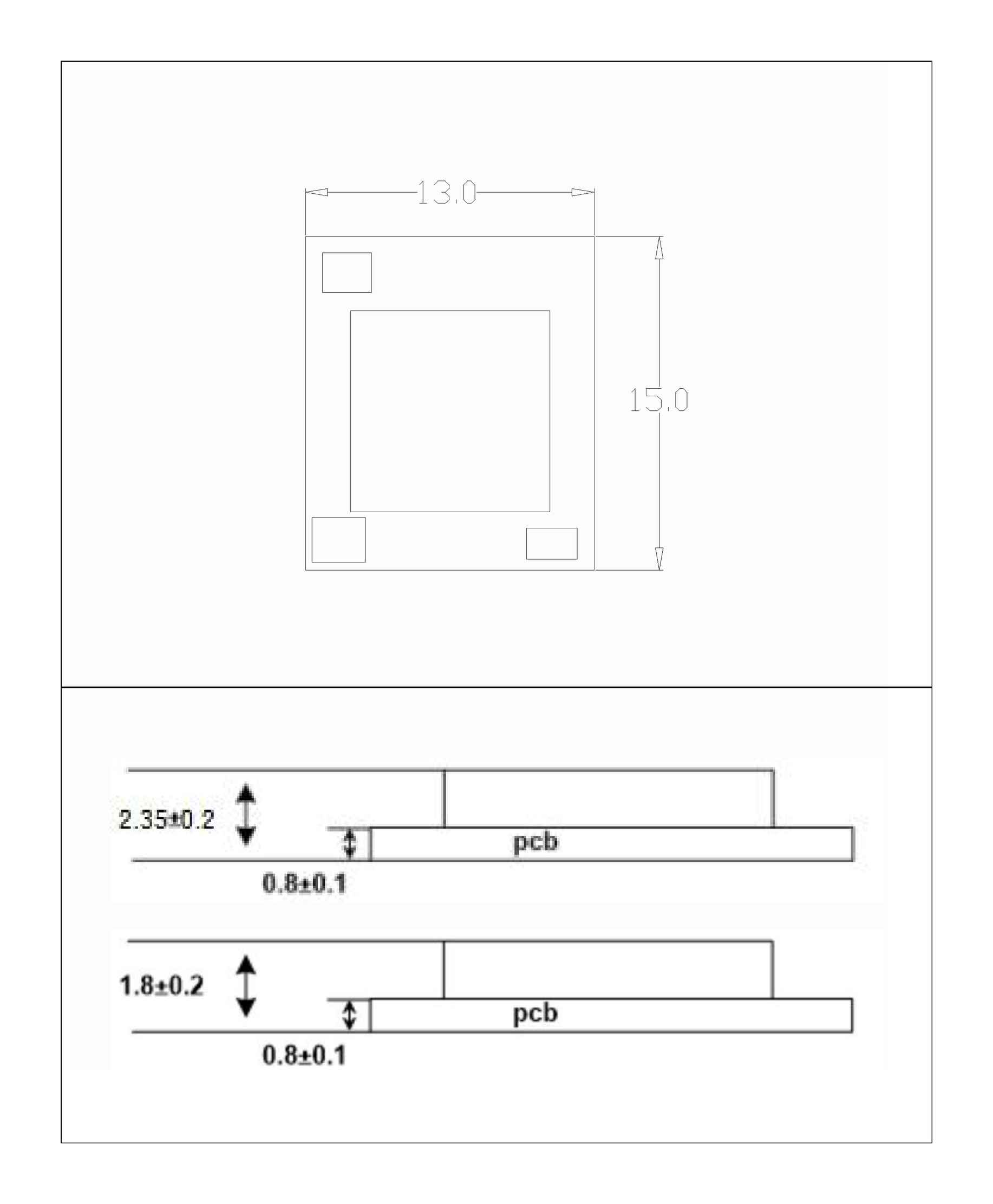

- Outline
- Reviews (0)
Description
Wi-Fi 6 Module Specifications | |
| a/b/g/n/ac/ax, 1200Mbps | |
| 6252B-SRB | |
Property | Value |
| Main Chipset | RTL8852BS |
| Wi-Fi Standard | a/b/g/n/ac/ax |
| Interface Wi-Fi/BT | SDIO/Uart |
| Throughput | 1200Mbps |
| Dimension (mm) | 13.0 × 15.0 |

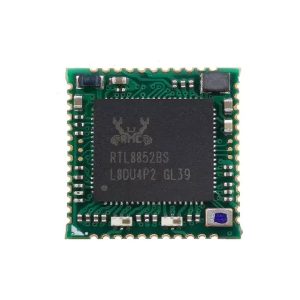

The 6252B-SRB is a Wi-Fi 6 (a/b/g/n/ac/ax) module built on the RTL8852BS chipset. It delivers up to 1200Mbps over a SDIO/Uart host interface. The module measures 13.0 × 15.0 mm, suiting space-constrained embedded designs.
