6 GHz to 18 GHz,13 dBi to 20 dBi Gain, 30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

HOT
-15%

6 GHz to 18 GHz,13 dBi to 20 dBi Gain, 30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

$3,295 $2,801

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 6 GHz to 18 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the C band, Xband, and Ka-band,  the ODPA-60180 can be used as low power radiators.  with a maximum continuous power handling capability of 50W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 13 dBi to 20 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications.

Description

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 6 GHz to 18 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the C band, Xband, and Ka-band,  the ODPA-60180 can be used as low power radiators.  with a maximum continuous power handling capability of 50W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 13 dBi to 20 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications, More Rfecho RF Antenna.

SPEC

Dual Polarized Horn Antenna

6 GHz to 18 GHz, 13 dBi to 20 dBi Gain, 30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

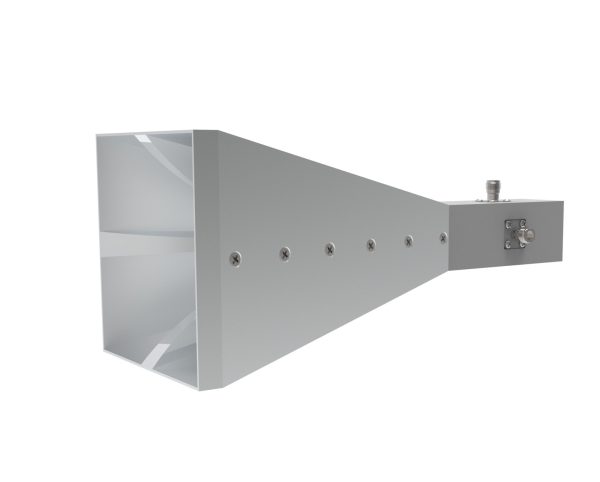

ODPA-60180 quad ridged horn antenna with two polarizations

Property

Value

Min. Frequency (GHz)

6

Max. Frequency (GHz)

18

Min. Gain (dBi)

13

Max. Gain (dBi)

20

VSWR (Max.)

2.0:1

Continuous Power (W) (Max.)

50

Impedance (?)

50

Connection Type

2.92mm

Cross Polar Isolation (dB)

>30

Band Type

C band, X band and Ku band

PDF

Outline

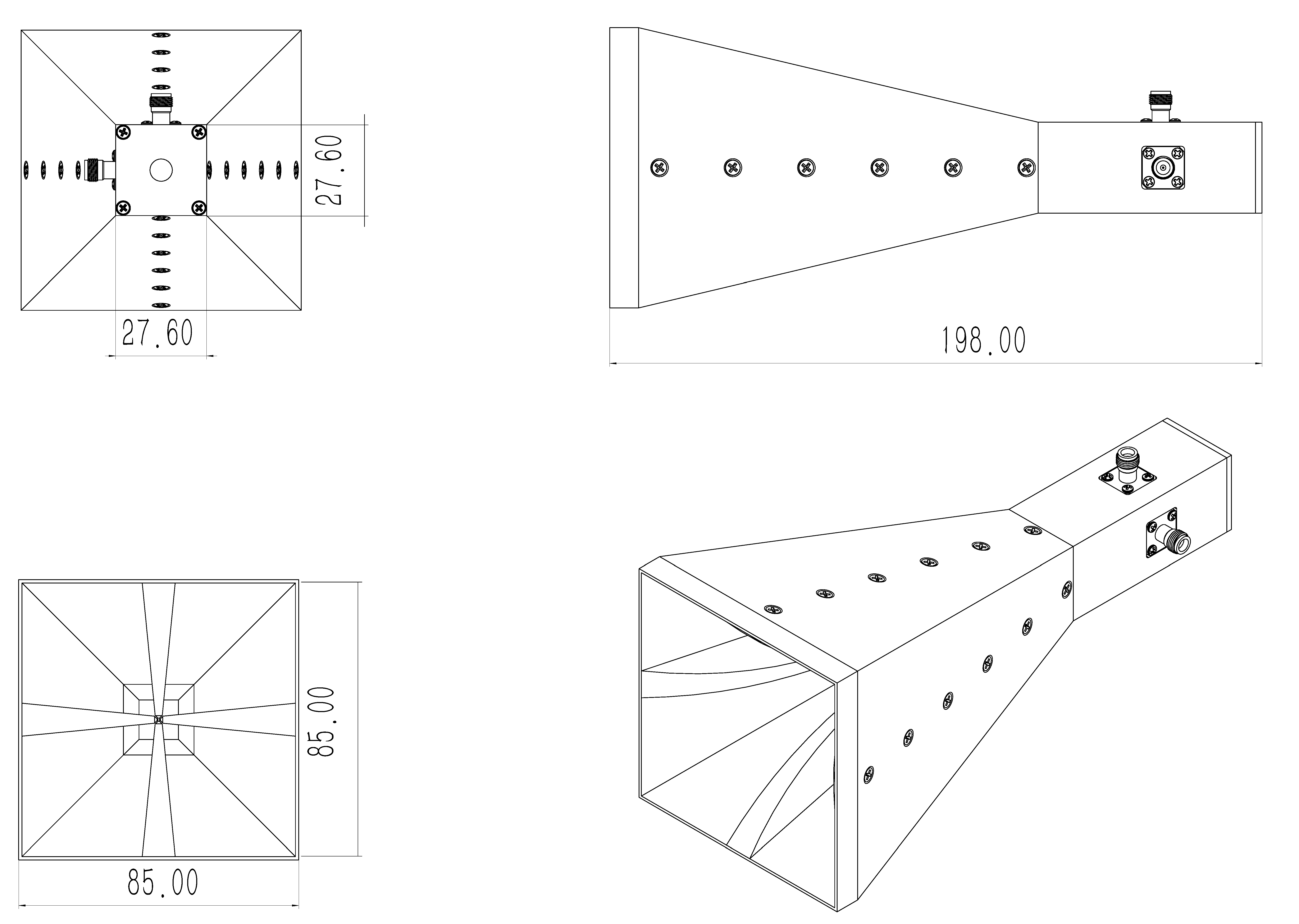

ODPA 60180 outline 6 GHz to 18 GHz,13 dBi to 20 dBi Gain,  30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

Plot

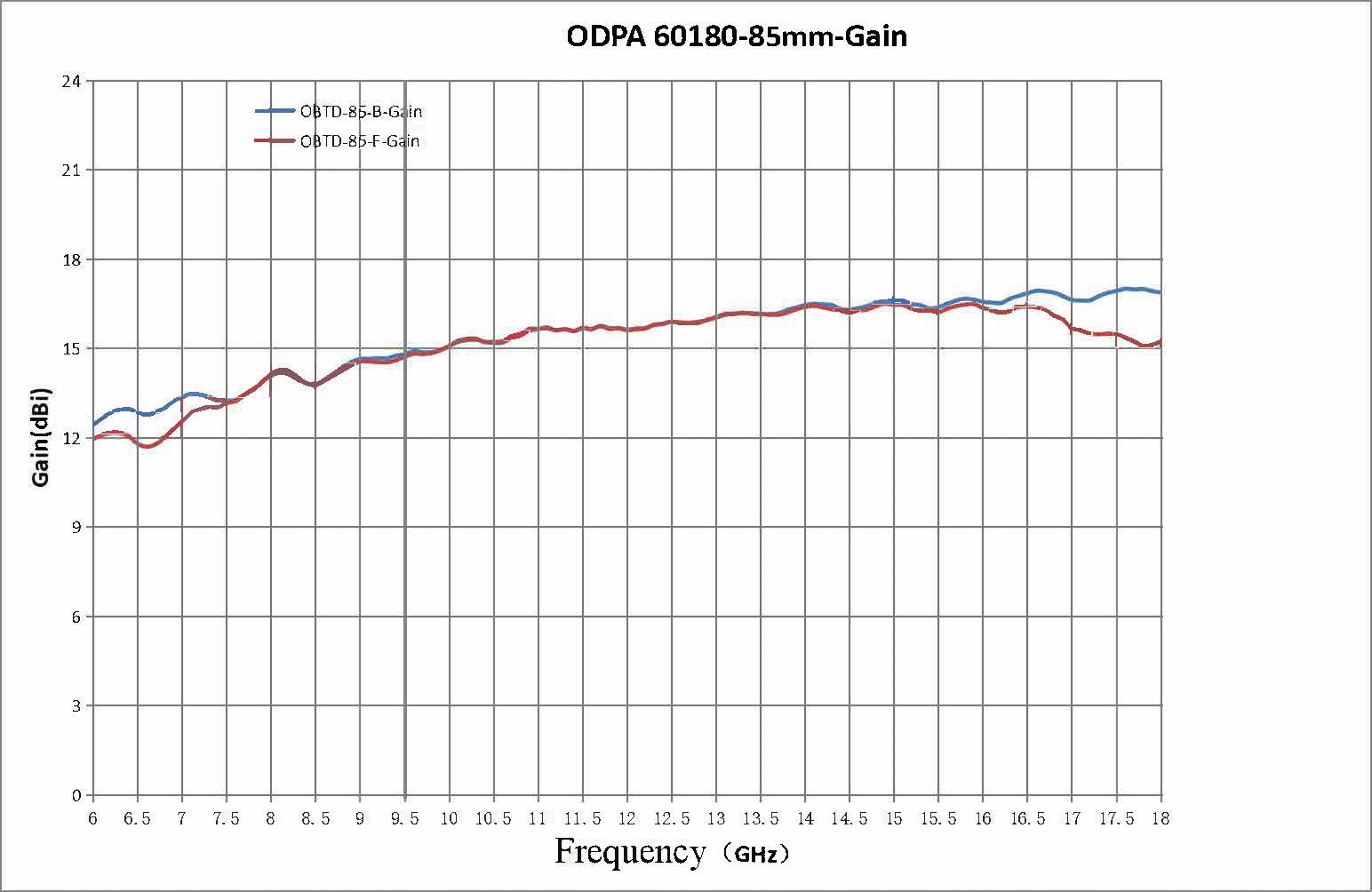

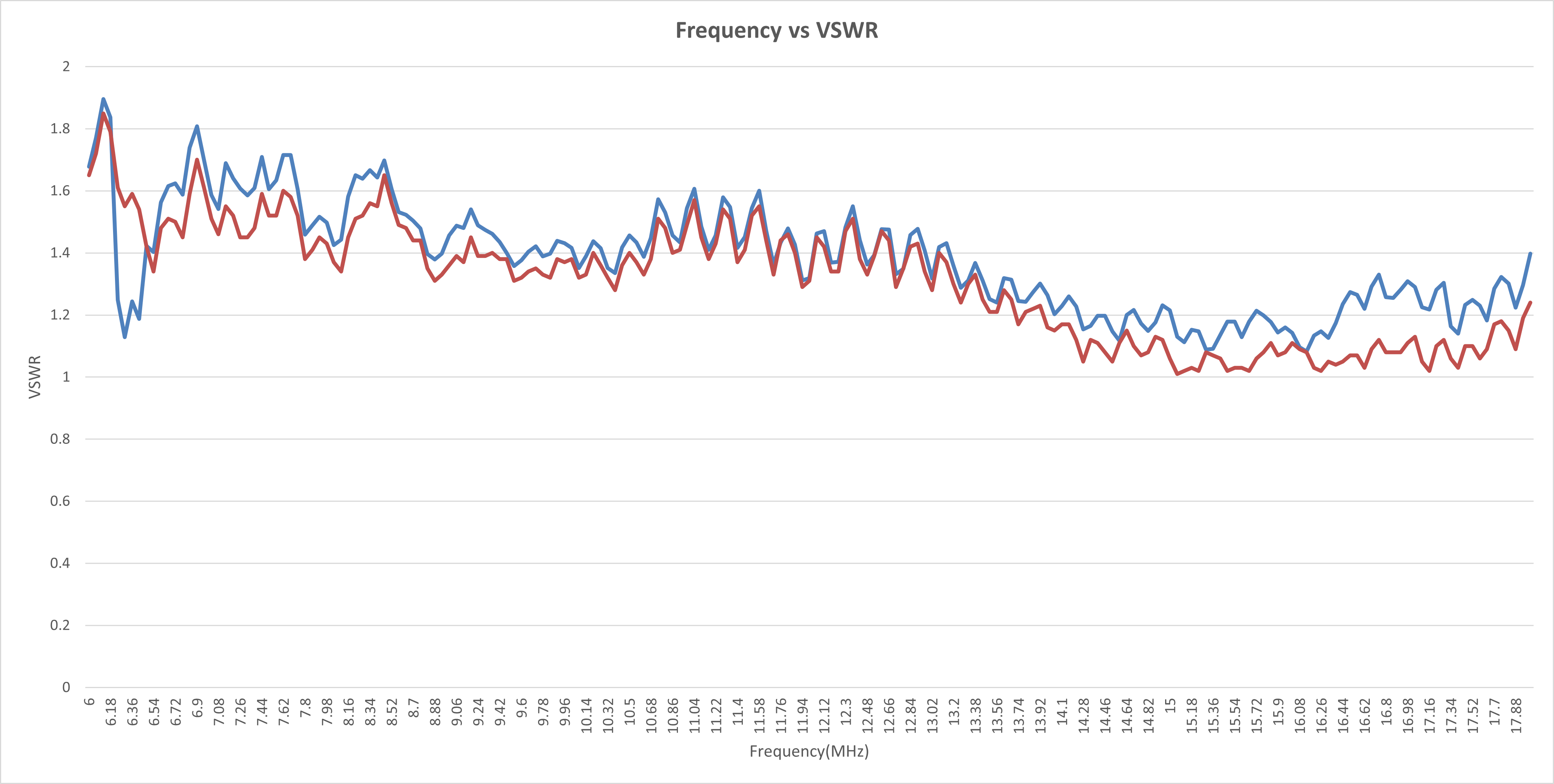

ODPA 60180 plot1 6 GHz to 18 GHz,13 dBi to 20 dBi Gain,  30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn AntennaODPA 60180 plot2 6 GHz to 18 GHz,13 dBi to 20 dBi Gain,  30 dB Isolation, C band, X band and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna
