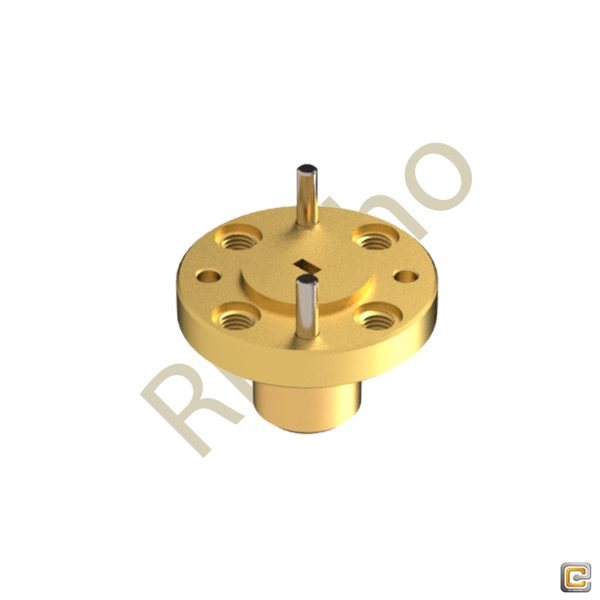

15 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas
$599
Frequency: 100-112GHz
Gain: 15dBi.
VSWR: 1.15:1
Waveguide: WR-08
Side Lobes,E-Plane,H-plane: -16,-28
Flange:UG-387/U-M flange
Band Type: F Band
Diameter: 0.08Inch
The OCN-08-15 Conical Horn Antennas is suitable for Antenna Ranges，Feed Horns and System Setups.
- Description
- Datasheet

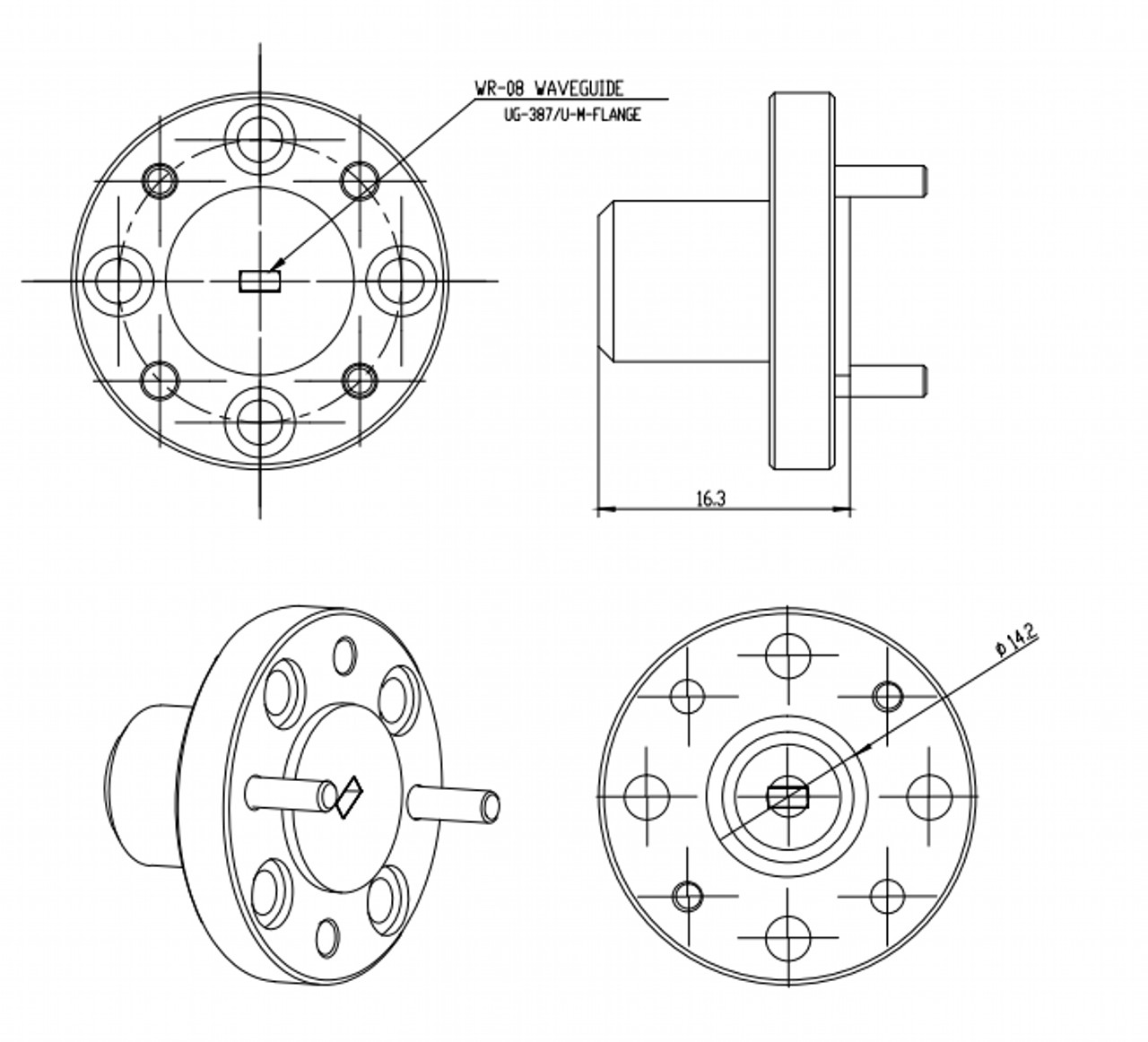

- Dimensions

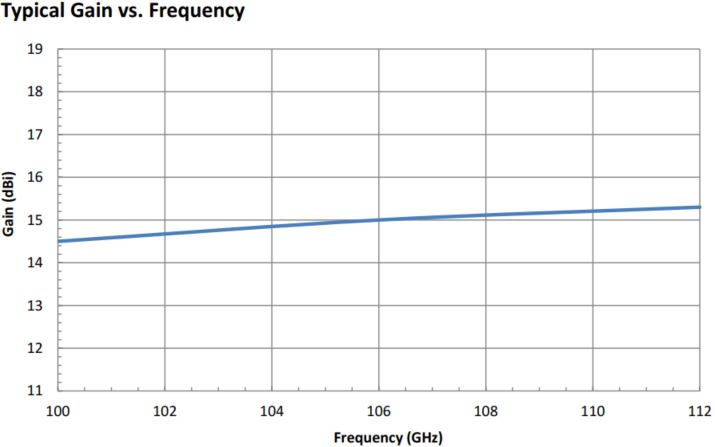

- Plot
- Additional information
- Reviews (0)
Description
|
Conical Horn Antennas |
|
|
15 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas |
|
|
OCN-08-15 |
|
|

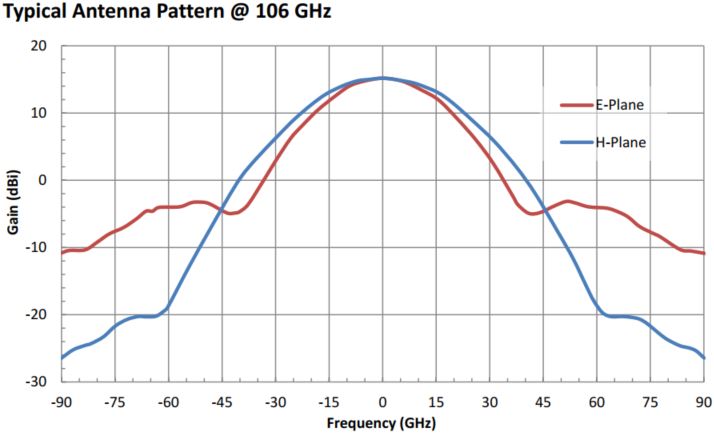

Model OCN-08-15 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 15 dB nominal gain and a typical half power beamwidth of 32 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical side lobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.08 diameter circular waveguide with UG-387/U-M flange. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
100 |
|
Max. Frequency (GHz) |
112 |
|
Gain(dBi) |
15 |
|
3 dB Beamwidth, E-plane |
32° |
|
3 dB Beamwidth, H-plane |
36° |
|
Side Lobes, E-Plane (dB) |
-16 |
|
Side Lobes, H-Plane (dB) |
-28 |
|
Waveguide |
WR-08 |
|
Band Type |
F Band |
|
Flange |
UG-387/U-M flange |
|
Diameter (Inch) |
0.08 |
|
VSWR |
1.15:1 |
|
Features |
|
|
Circular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
High Return Loss |
|
|
Linear and Circular Polarization |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Feed Horns |
|
|
System Setups |
|
Additional information
| Min. Frequency (GHz) | 100 |
|---|---|
| Max. Frequency (GHz) | 112 |
| Gain (dBi) | 15 |
| Waveguide | |
| VSWR | 1.15:1 |
| Side Lobes, H-Plane (dB) | |
| Side Lobes, E-Plane (dB) | |
| Flange | |
| Band Type | |
| Diameter (inch) |
