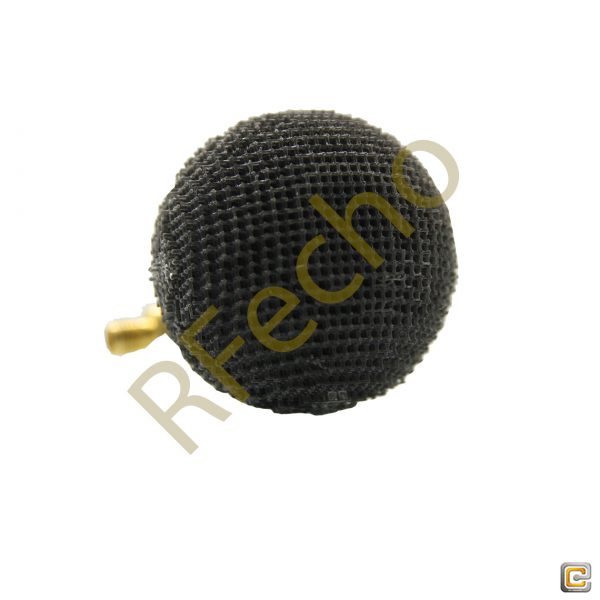

15 dBi Gain, 14.5 GHz to 20 GHz, 20 dB Return Loss, Luneburg Lens Antenna

15 dBi Gain, 14.5 GHz to 20 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

Luneburg Lens Antenna covers the frequency range from 14.5 GHz to 20 GHz and offers the nominal gain of 15 dBi where the return loss is 20 dB. HPBW is 30°@17.5GHz. Luneburg Lens Antenna operates in all polarization.

SKU: OLLA-145200 Categories: Luneburg Lens Antenna, RF Antenna

Description

PDF

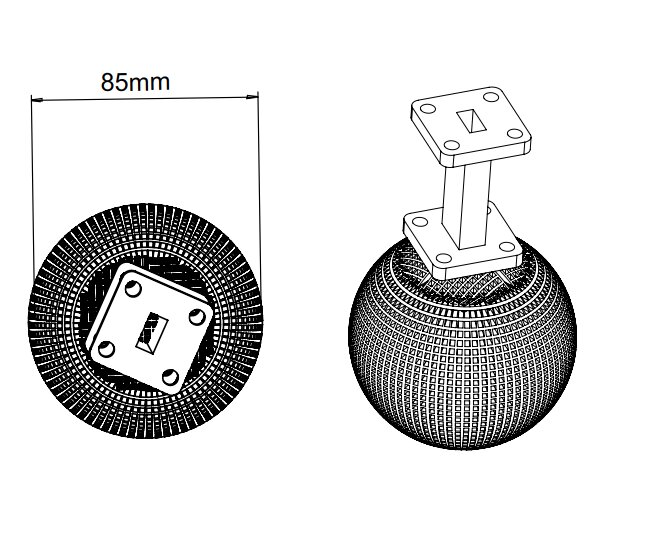

Outline

15 dBi Gain, 14.5 GHz to 20 GHz, 20 dB Return Loss, Luneburg Lens Antenna

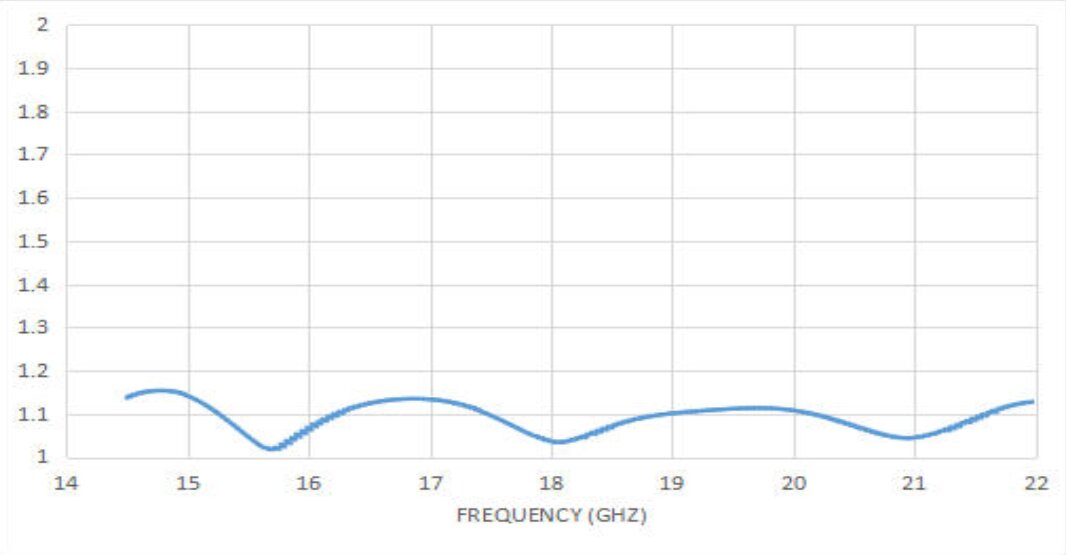

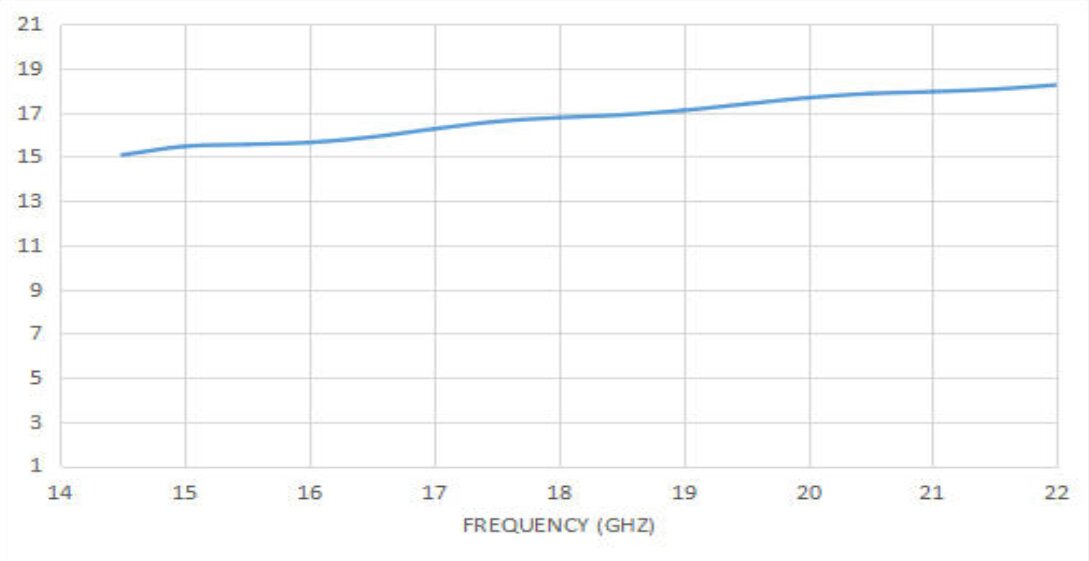

Plot

15 dBi Gain, 14.5 GHz to 20 GHz, 20 dB Return Loss, Luneburg Lens Antenna15 dBi Gain, 14.5 GHz to 20 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Additional information

Min. Frequency (GHz)

14.5

Max. Frequency (GHz)

20

Gain (dBi)

15

Return Loss (dB)

20

HPBW 3 dB Beamwidth

30°@17.5GHz

Net Weight (Kg)

0.068

Diameter (mm)

85

Polarization

All polarizations
