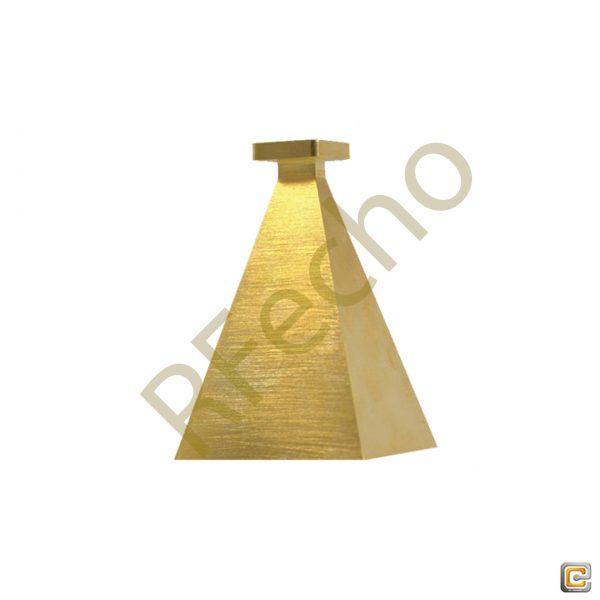

15 dBi Gain, 18 GHz to 26.5 GHz, WR-42 Waveguide Standard Gain Horn Antenna
Frequency: 18-26.5GHz
Gain: 15dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 30° / V 30°
Waveguide: WR-42
Material: Cu
Light Weight OLB-42-15 Standard Gain Horn antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups.
- Description
- Datasheet
- Outline

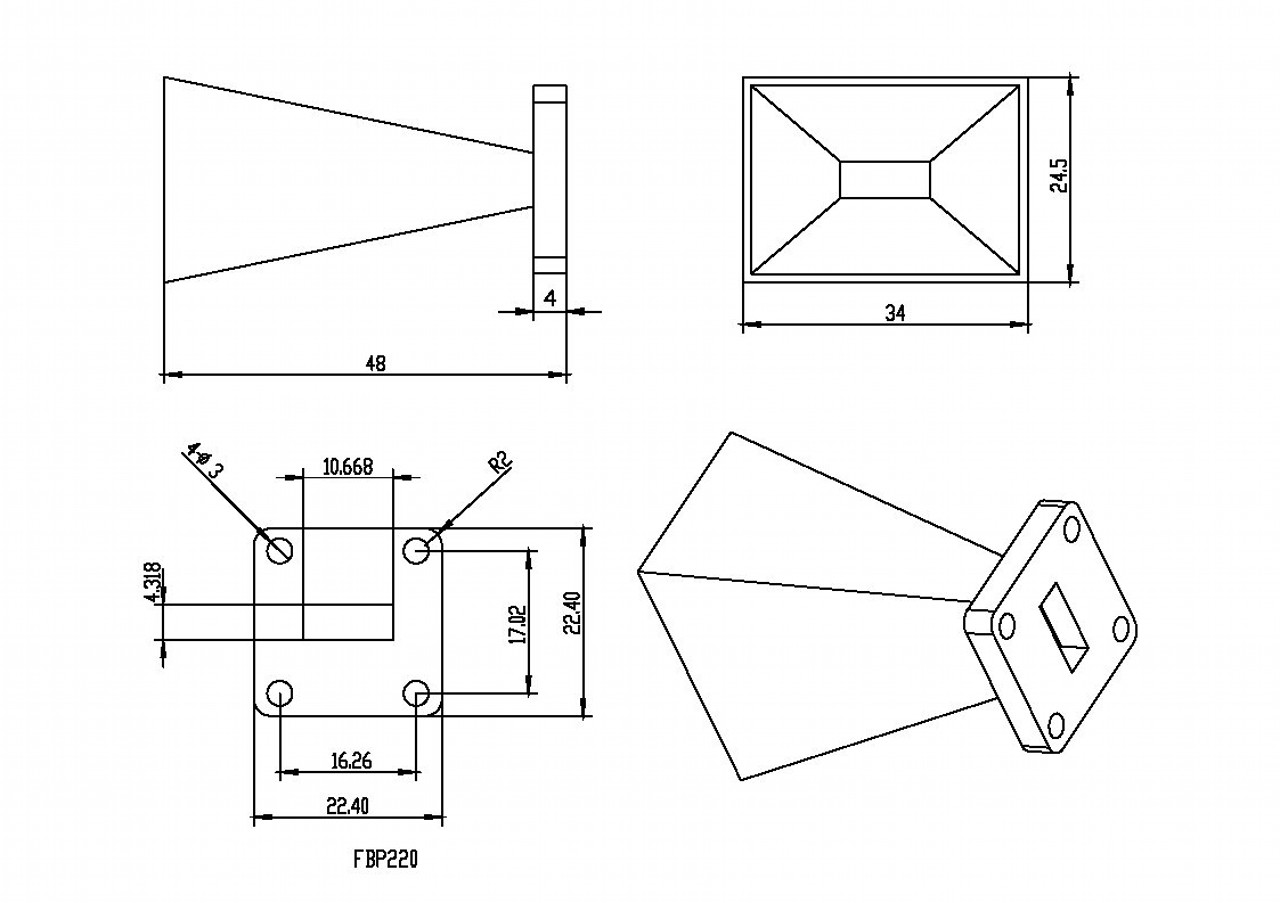

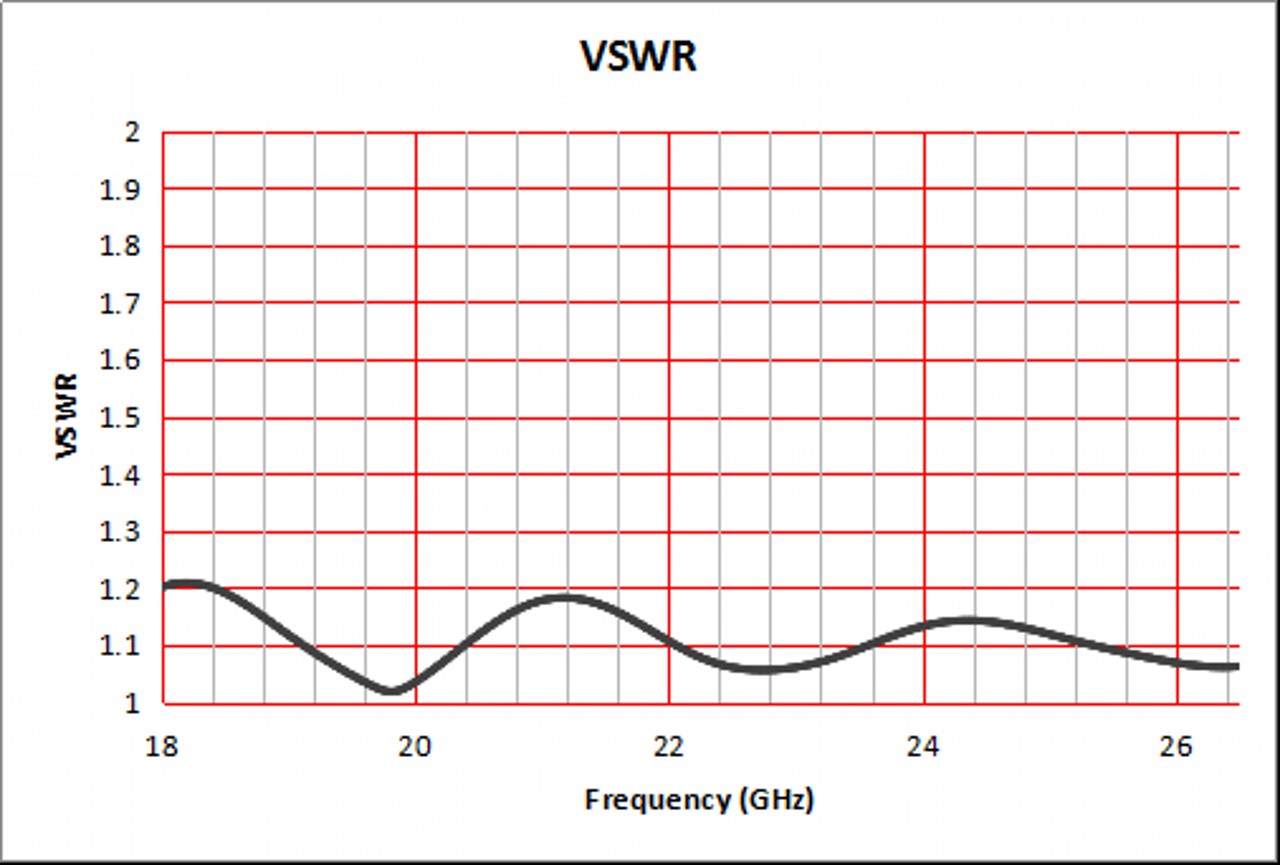

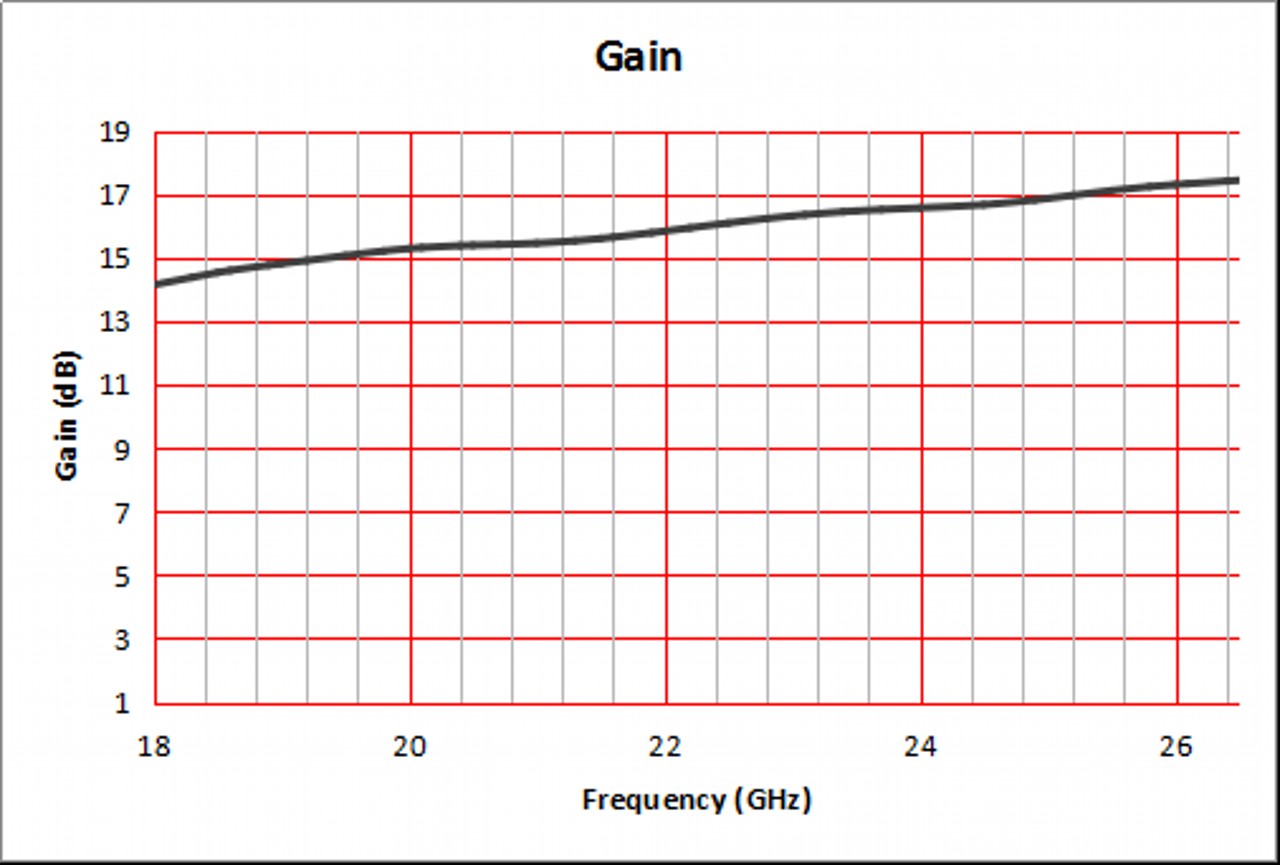

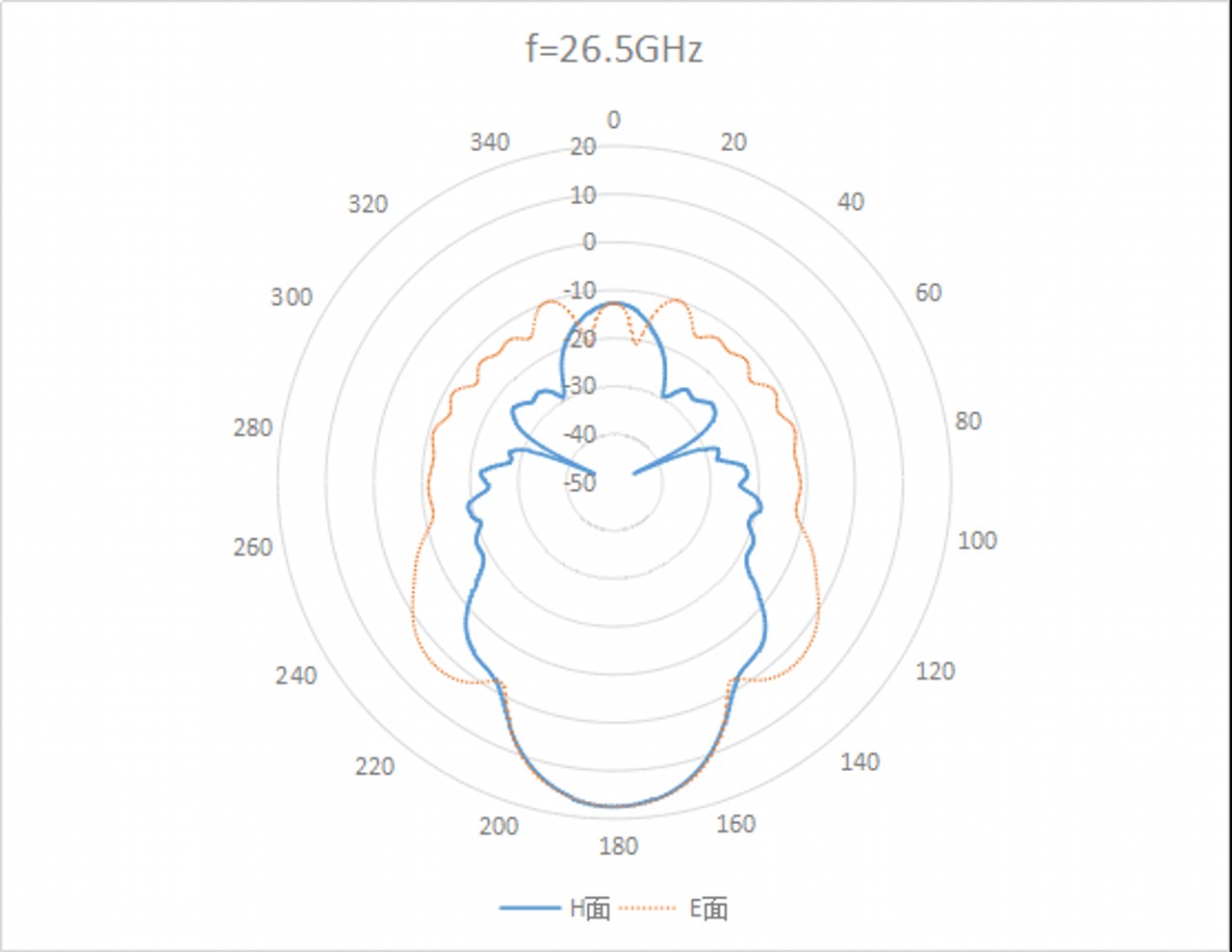

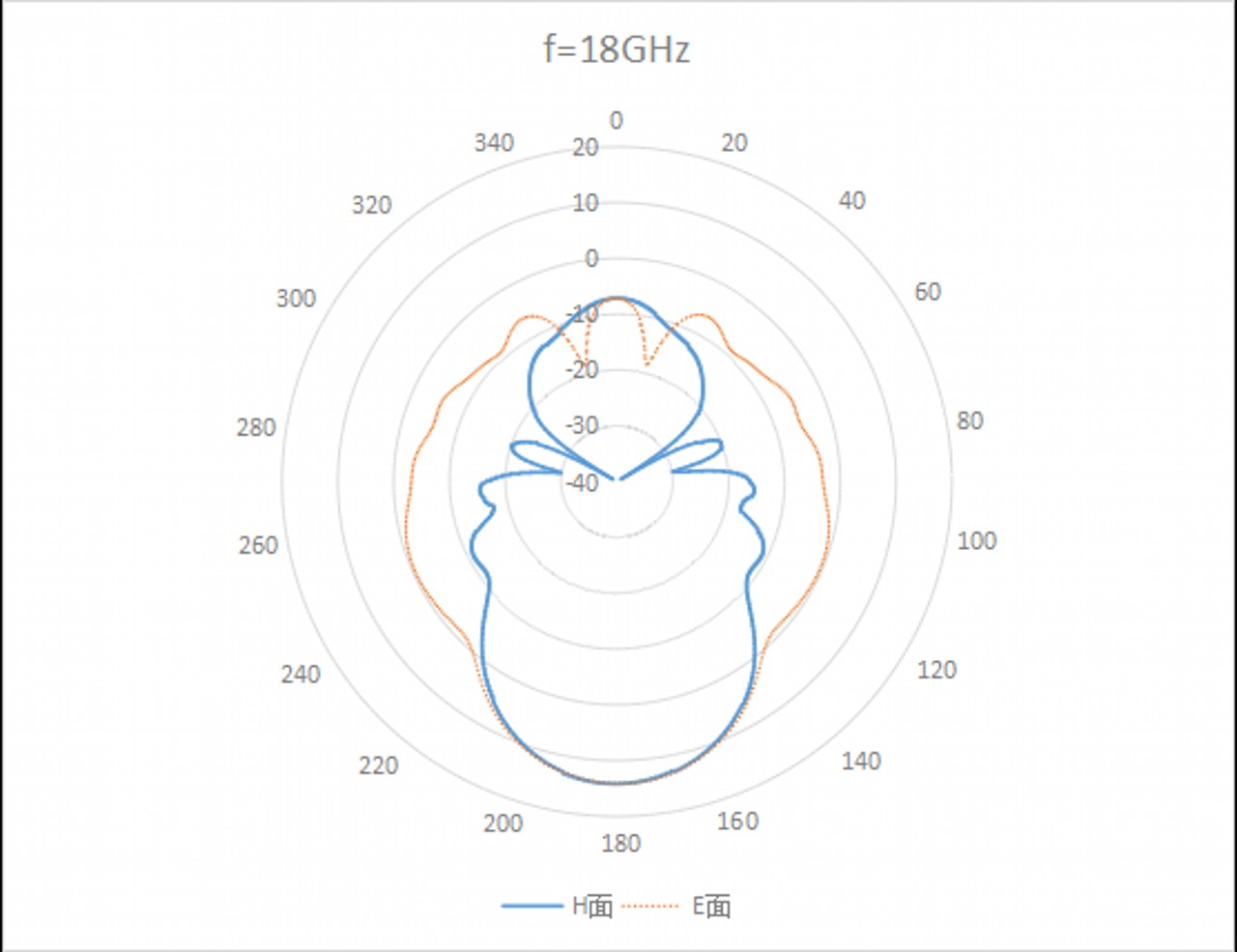

- Plot
- Reviews (0)
Description
This model OLB-42-15 is a Standard gain horn antenna that offers the gain of 15 dBi across the band and a square cover flange. It covers the frequency range from 18 GHz to 26.5 GHz. Standard gain horn antenna OLB-42-15 is known as a waveguide horn having the waveguide of WR-42.
It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-42-15 has an H-plane & V-Plane beamwidth of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is Cu. The Impedance used Standard gain horn antenna is 50 ohms.
WR-42 Waveguide Standard Gain Horn Antenna | |
| 15 dBi Gain, 18 GHz to 26.5 GHz | |
| OLB-42-15 | |
Property | Value |
| Min. Frequency (GHz) | 18 |
| Max. Frequency (GHz) | 26.5 |
| Gain(dBi) | 15 |
| HPBW 3 dB Beamwidth | H 30° / V 30° |
| Waveguide | WR-42 |
| Material | Cu |
| Polarization | Linear |
| Impedance (Ω) | 50 |
| Cover Flange | square |
Features | |
| Precisely Machined and Gold Plated | |
| Low VSWR | |
| Light Weight | |
| Linear Polarization | |
| Low Return Loss | |
| Rectangular Waveguide Interface | |
| Lower sidelobes and symmetrical radiation patterns | |
Applications | |
| Antenna Ranges | |
| Antenna Gain Measurements | |
| Array Elements | |
