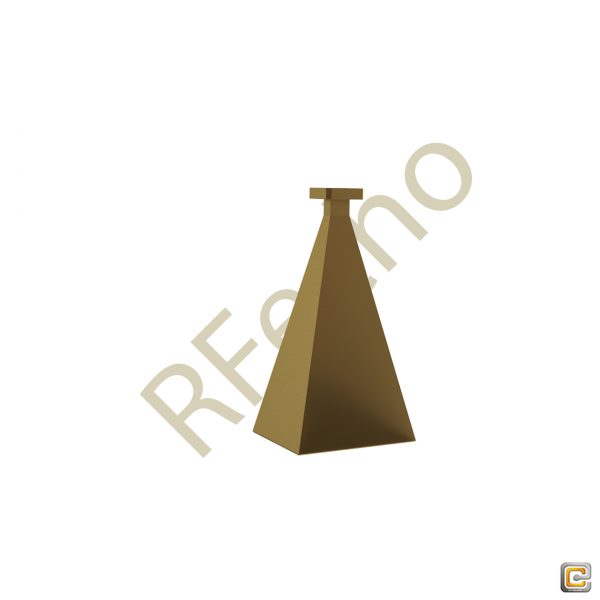

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-25

$960

Frequency: 26.5-40GHz
Gain: 25dBi.
VSWR: 1.3Typ.
3 dB Beamwidth: H 10° / V 10°
Waveguide: WR-28
Material: Cu
Light Weight
Precisely Machined and Gold Plated
OLB-28-25 Millimeter SGH Antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups.

SKU: OLB-28-25 Categories: RF Antenna, Standard Gain Horn Antenna

Description

Millimeter SGH Antenna

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna

OLB-28-25

This model OLB-28-25 is a Millimeter SGH Antenna, operating frequency range is 26.5 GHz to 40 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-28 waveguide withUG-599/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Gain(dBi)

25

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-28

Flange

UG-599/U Flange

Material

Cu

Polarization

Linear

Impedance (Ω)

50

Features

Precisely Machined and Gold Plated

Low VSWR

Light Weight

Linear Polarization

Low Return Loss

Rectangular Waveguide Interface

Lower sidelobes and symmetrical radiation patterns

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

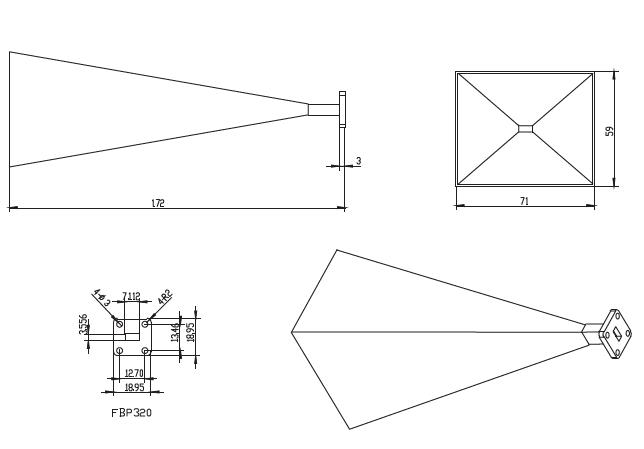

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-25-Outline

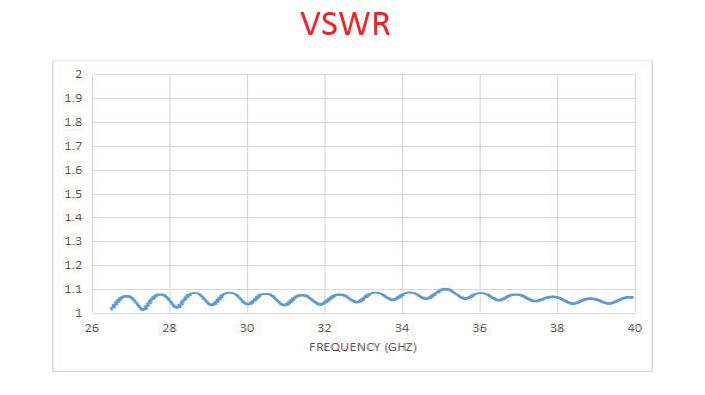

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-25-Plot

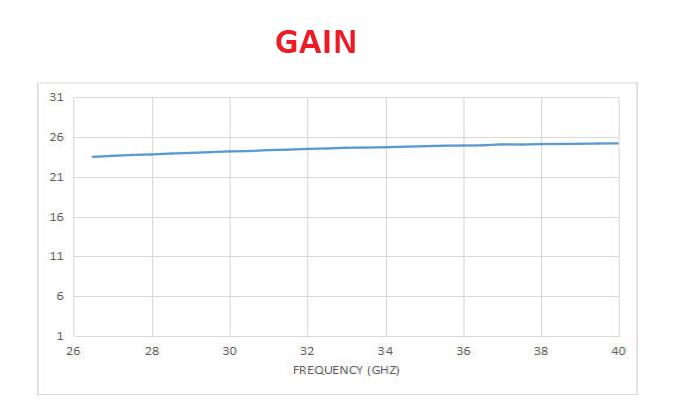

25 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna OLB-28-25-Plot

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Gain (dBi)

25

Flange

UG-599/U Flange

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-28

Material

Cu

Polarization

Linear

Impedance (Ω)

50
