This model OLB-34-25 is a Standard gain horn antenna that offers the gain of 25 dBi across the band and a square cover flange. It covers the frequency range from 22 GHz to 33 GHz. Standard gain horn antenna OLB-34-25 is known as a waveguide horn having the waveguide of WR-34.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-34-25 has an H-plane & V-Plane beamwidth of H 10° / V 10°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is Cu. The Impedance used Standard gain horn antenna is 50 ohms.

Description

This model OLB-34-25 is a Standard gain horn antenna that offers the gain of 25 dBi across the band and a square cover flange. It covers the frequency range from 22 GHz to 33 GHz. Standard gain horn antenna OLB-34-25 is known as a waveguide horn having the waveguide of WR-34.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-34-25 has an H-plane & V-Plane beamwidth of H 10° / V 10°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is Cu. The Impedance used Standard gain horn antenna is 50 ohms.

SPEC

WR-34 Waveguide Standard Gain Horn Antenna

25 dBi Gain, 22 GHz to 33 GHz

OLB-34-25



Property

Value

Min. Frequency (GHz)

22

Max. Frequency (GHz)

33

Gain(dBi)

25

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-34

Material

Cu

Polarization

Linear

Impedance (?)

50

Cover Flange

square

Features

Precisely Machined and Gold Plated

Low VSWR

Light Weight

Linear Polarization

Low Return Loss

Rectangular Waveguide Interface

Lower sidelobes and symmetrical radiation patterns

Applications

Antenna Ranges

Antenna Gain Measurements

Array Elements

PDF

Outline

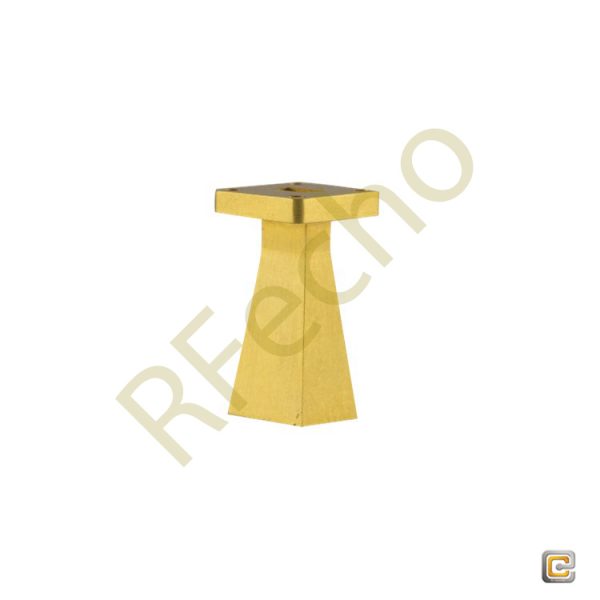

WR-34 Waveguide - 25dBi gain - Standard Gain Horn Antenna

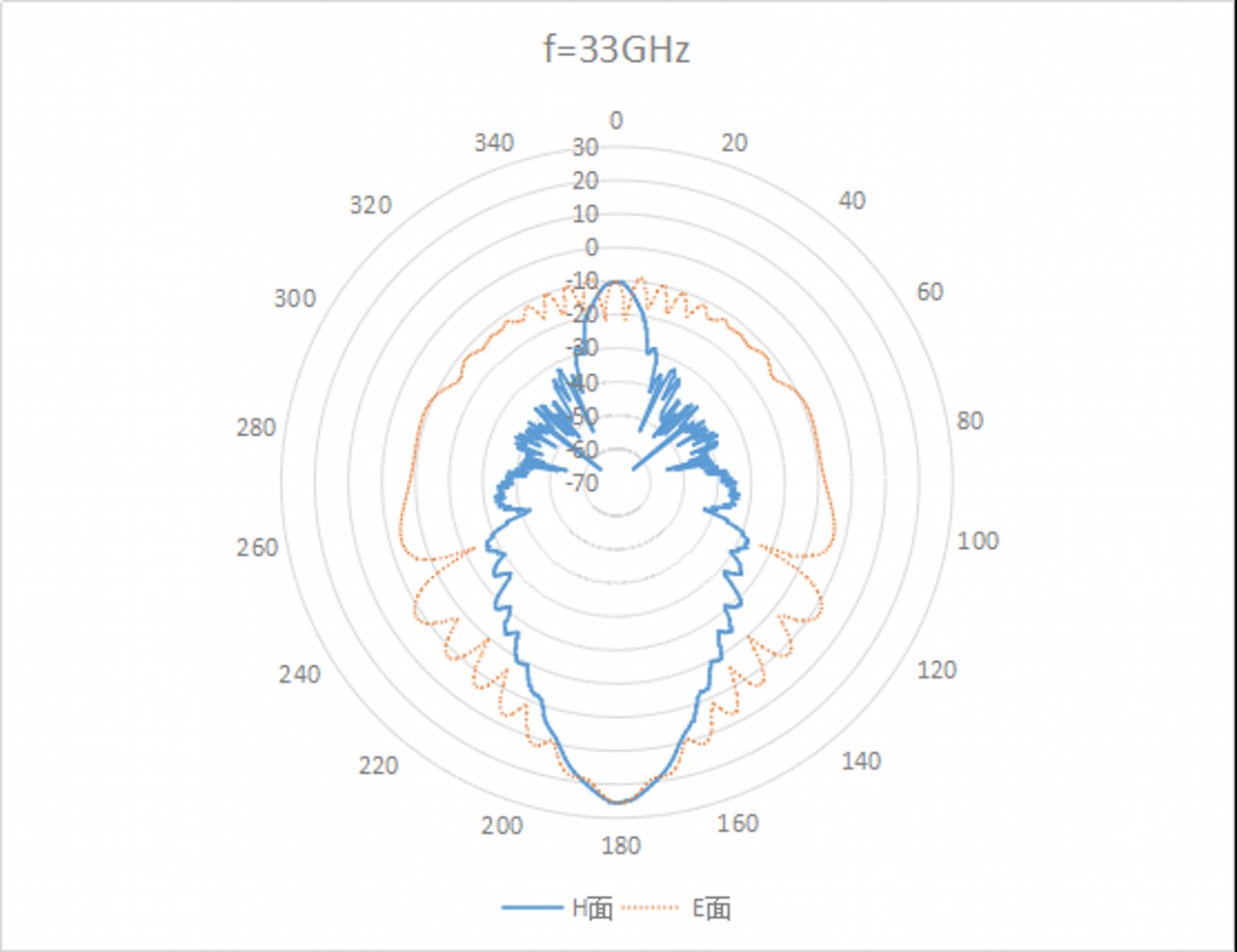

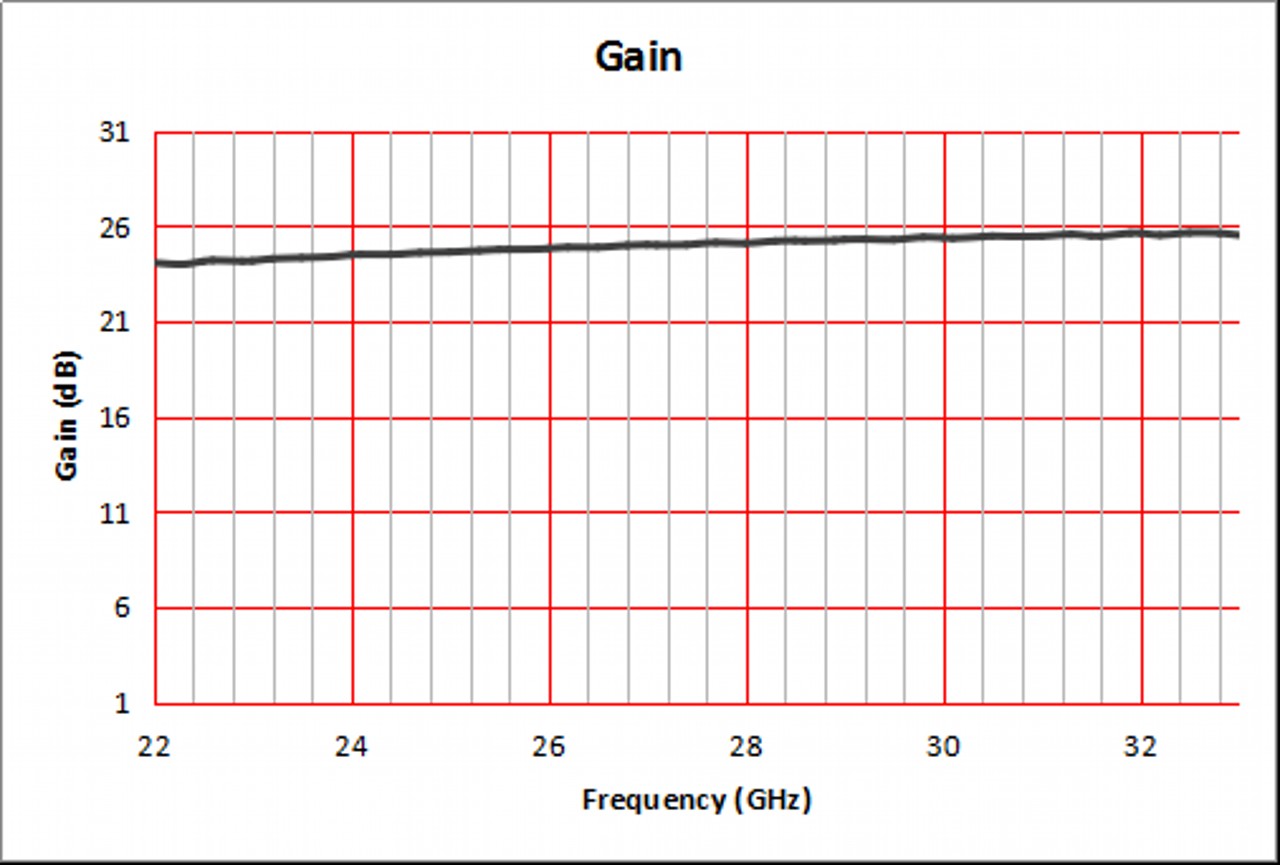

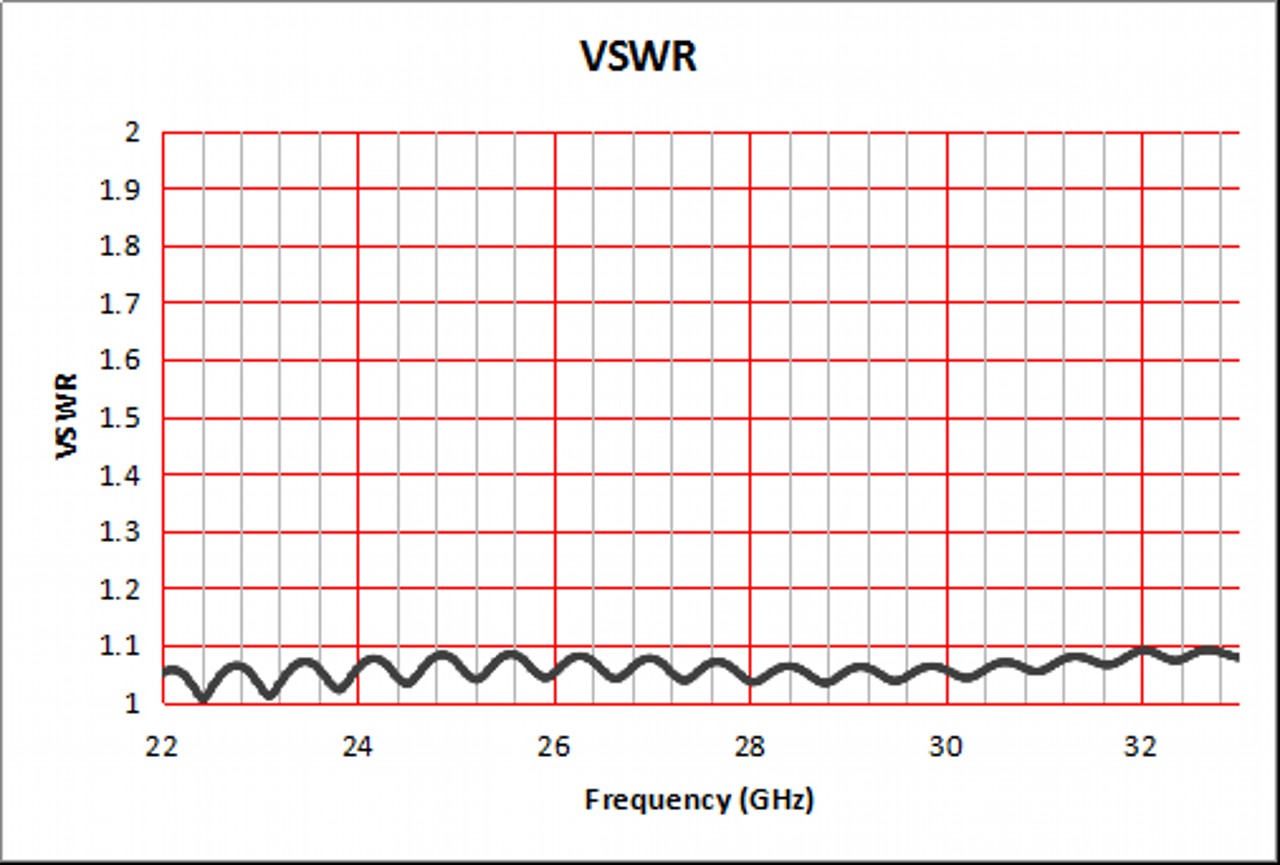

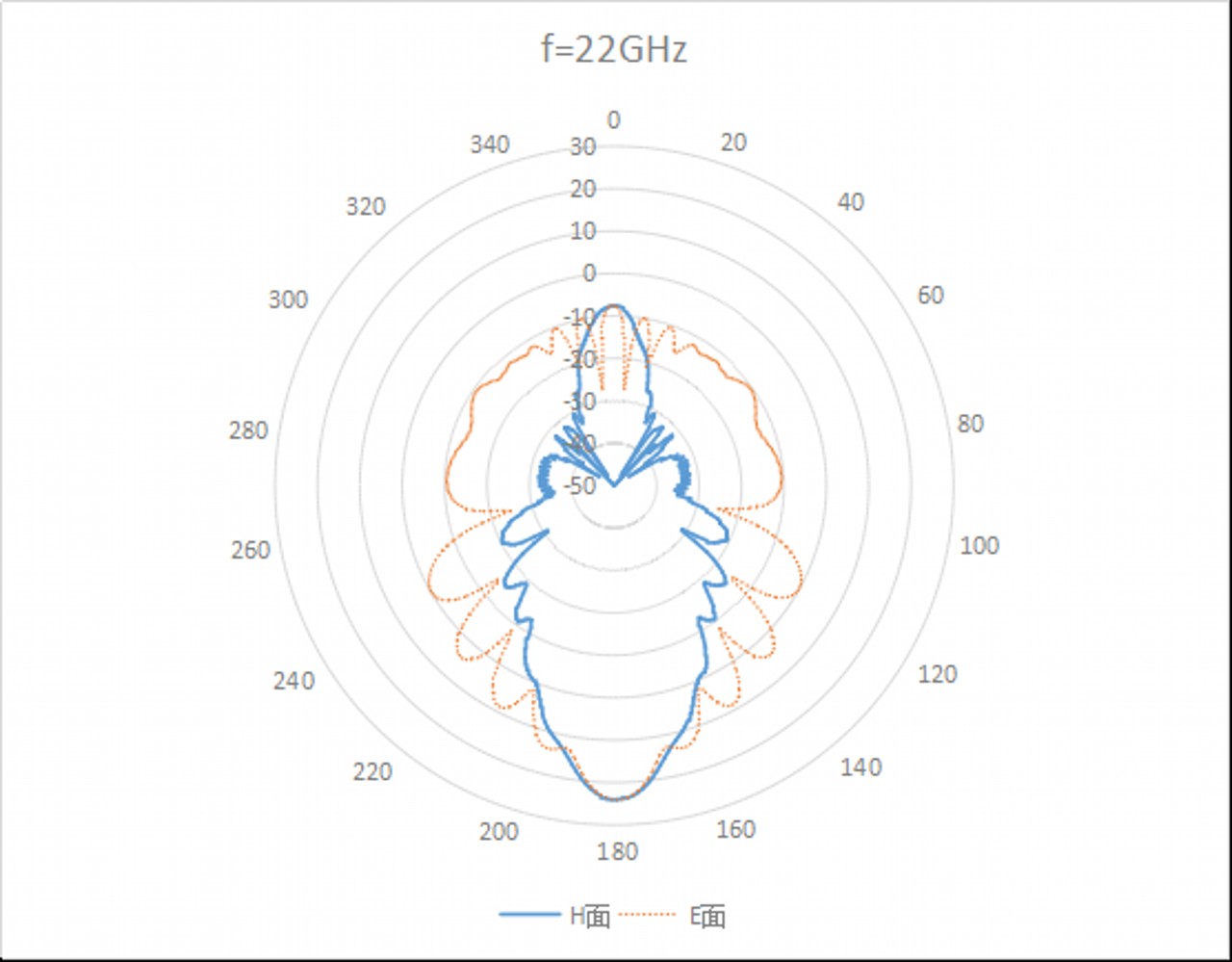

Plot

OLB 34 25 plot1 25 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Standard Gain Horn AntennaOLB 34 25 plot2 25 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Standard Gain Horn AntennaWR-340 Waveguide Standard Gain Horn Antenna. Nominal Gain: 25dBi Gain. Frequency Range: 22 GHz to 33 GHz - 1WR-340 Waveguide Standard Gain Horn Antenna. Nominal Gain: 25dBi Gain. Frequency Range: 22 GHz to 33 GHz - 2
