15 dBi Gain, 2.6 GHz to 4 GHz, 20 dB Return Loss, Luneburg Lens Antenna

15 dBi Gain, 2.6 GHz to 4 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

Luneburg Lens Antenna covers the frequency range from 2.6 GHz to 4 GHz and offers the nominal gain of 15 dBi where the return loss is 20 dB. HPBW is 30°@3.3GHz. Luneburg Lens Antenna operates in all polarization.

SKU: OLLA-2640 Categories: Luneburg Lens Antenna, RF Antenna

Description

PDF

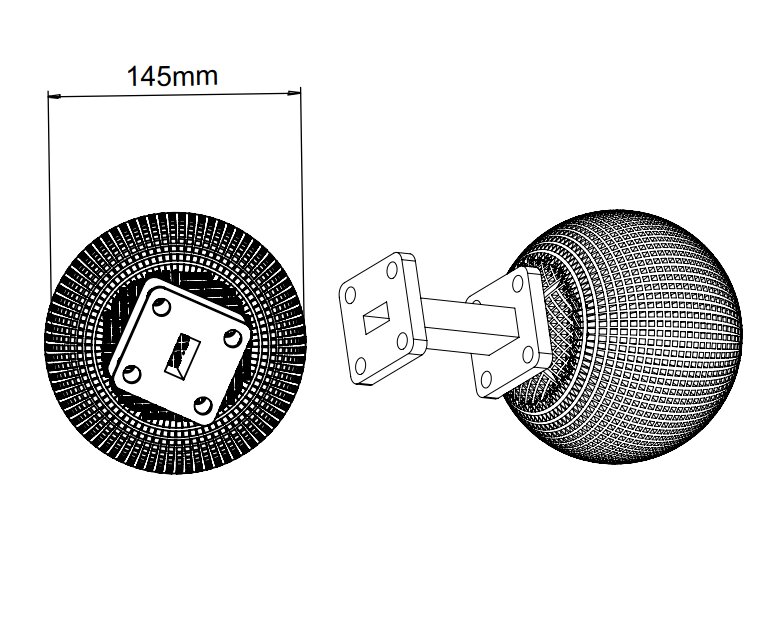

Outline

15 dBi Gain, 2.6 GHz to 4 GHz, 20 dB Return Loss, Luneburg Lens Antenna

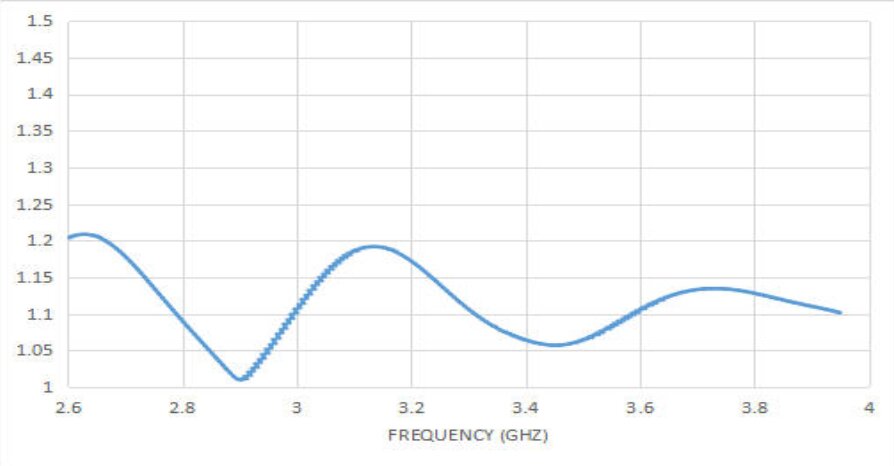

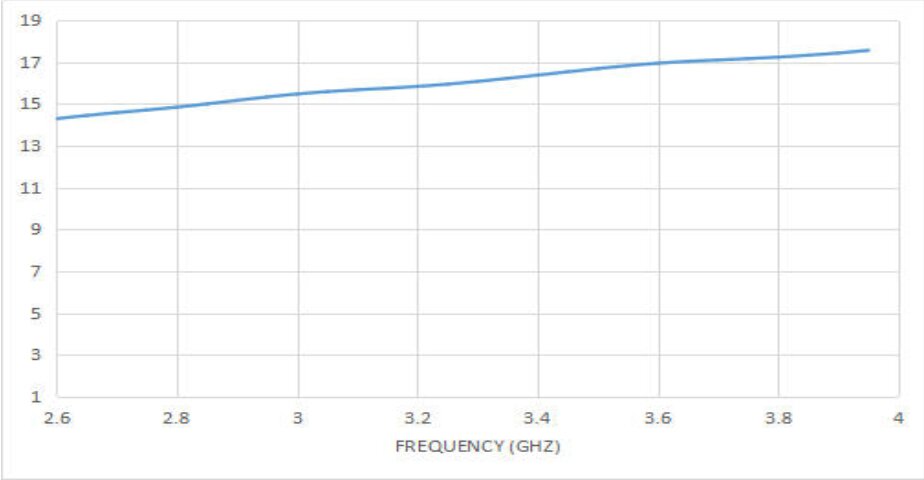

Plot

15 dBi Gain, 2.6 GHz to 4 GHz, 20 dB Return Loss, Luneburg Lens Antenna15 dBi Gain, 2.6 GHz to 4 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Additional information

Min. Frequency (GHz)

2.6

Max. Frequency (GHz)

4

Gain (dBi)

15

Return Loss (dB)

20

HPBW 3 dB Beamwidth

30°@3.3GHz

Net Weight (Kg)

0.116

Diameter (mm)

145

Polarization

All polarizations
