22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, Dual Polarized Horn Antenna,30 dB Isolation, K band, Ka band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, Dual Polarized Horn Antenna,30 dB Isolation, K band, Ka band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

This RFecho quad ridged  Antenna with dual porlarization  covers the frequency range from 22 GHz to 44 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the K band and Ka band,  the ODPA-220440 can be used as low power radiators.  with a maximum continuous power handling capability of 50W.

Integrated design and processing, fabrication with only one piece of copper.  Good structural stability guarantees cross polarization isolation better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized  waves.  Dual Polarized Horn Antenna having the gain from 15 dBi to 20 dBi and the VSWR of <2.0:1.

Used for Radar cross section and testing applications.

SKU: ODPA-220440 Categories: Dual Polarized Horn Antenna, RF Antenna

Description

SPEC

Dual Polarized Horn Antenna

22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, 30 dB Isolation, K band, Ka-band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

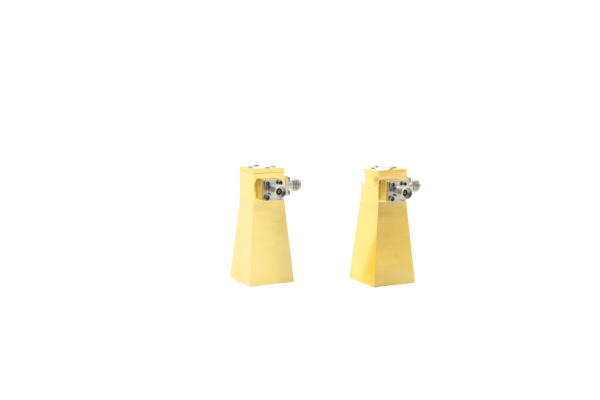

ODPA-220440 quad ridged horn antenna with two polarizations

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 22 GHz to 44 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the K band and Ka-band,  the ODPA-220440 can be used as low power radiators.  with a maximum continuous power handling capability of 50W.

Integrated design and processing, fabrication with only one piece of copper.  Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 15 dBi to 20 dBi and the VSWR of <2.0:1.

Used for the Radar cross-section and testing applications, More Rfecho RF Antenna.

Property

Value

Min. Frequency (GHz)

22

Max. Frequency (GHz)

44

Min. Gain (dBi)

15

Max. Gain (dBi)

20

VSWR (Max.)

<2.0:1

Continuous Power (W) (Max.)

50

Impedance (?)

50

Connection Type

2 -2.92mm Connectors

Cross Polar Isolation (dB)

>30

Band Type

K band, Ka band, Q band and U band

PDF

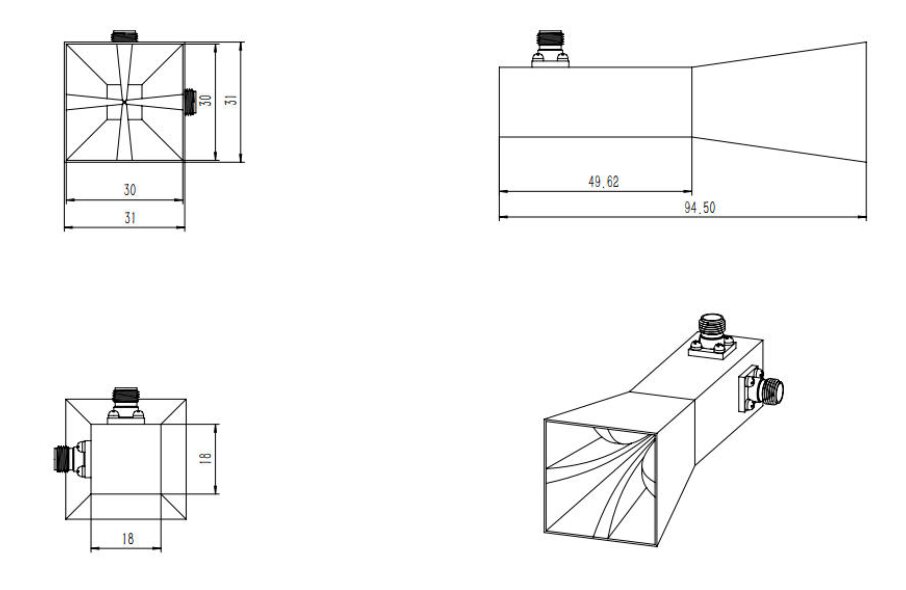

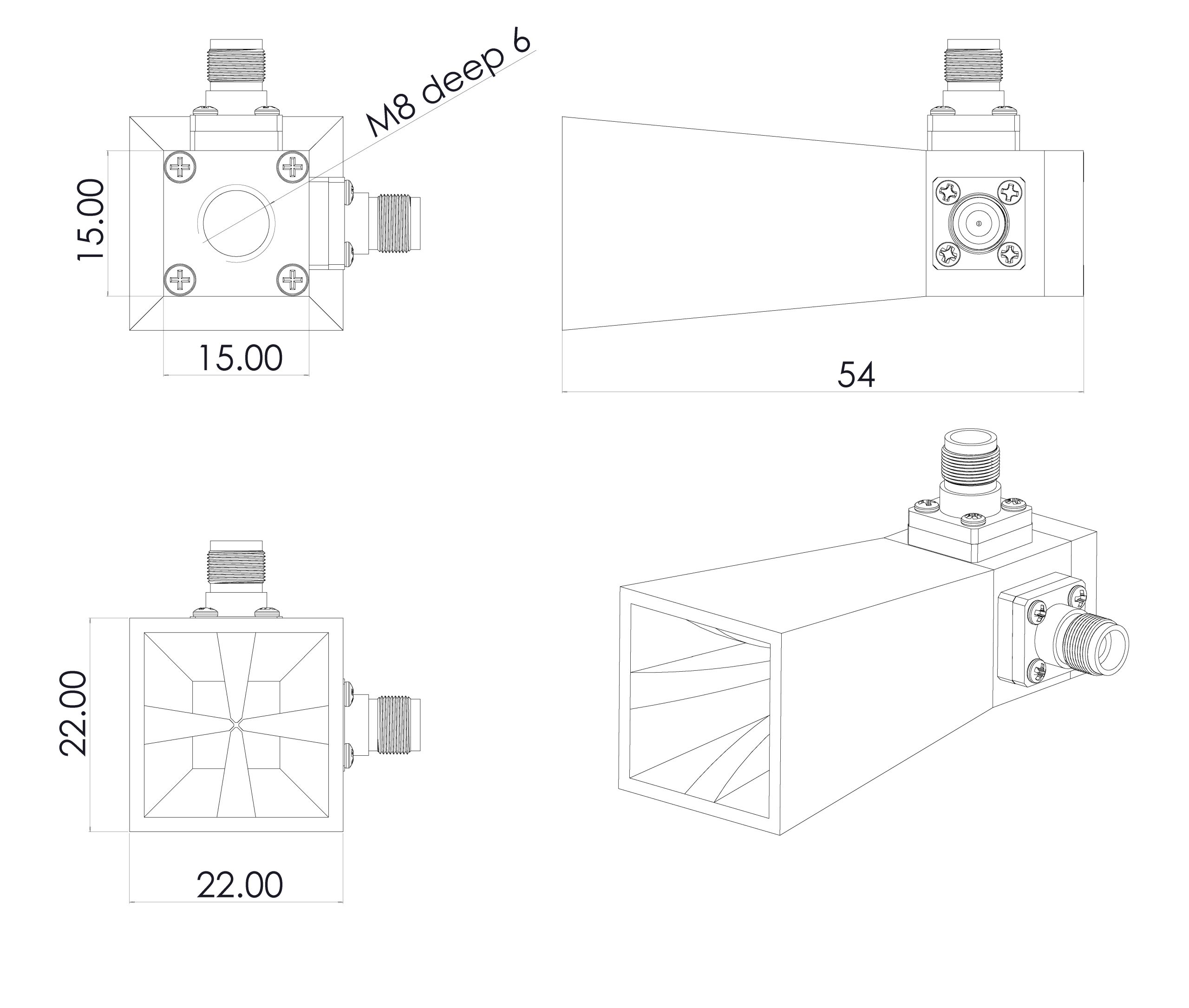

Outline

22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, Dual Polarized Horn Antenna,30 dB Isolation, K band, Ka band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

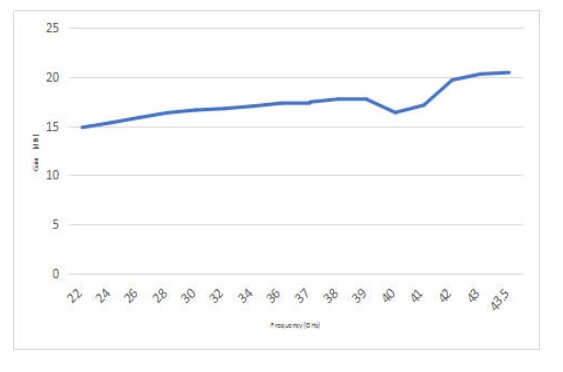

Plot

22 GHz to 44 GHz, 15 dBi to 20 dBi Gain, Dual Polarized Horn Antenna,30 dB Isolation, K band, Ka band, Q band and U band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

Additional information

Min. Frequency (GHz)

22

Max. Frequency (GHz)

44

Min. Gain (dBi)

15

Max. Gain (dBi)

20

Continuous Power (W) (Max.)

50

Band Type

K band, Ka band, Q band and U band

Connection Type

2 -2.92mm Connectors

Impedance (Ω)

50

Cross Polar Isolation (dB)

>30
