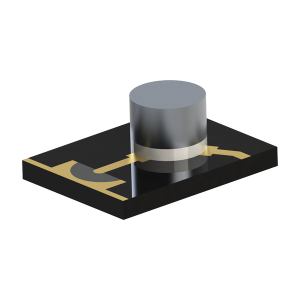

17.7 GHz to 21.2 GHz, 1.35 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A044-17.7-21.2
$0.00
Miniaturization and light weight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, and electronic countermeasures
Applicable for microwave communications and microwave testing fields
- Description
- Datasheet

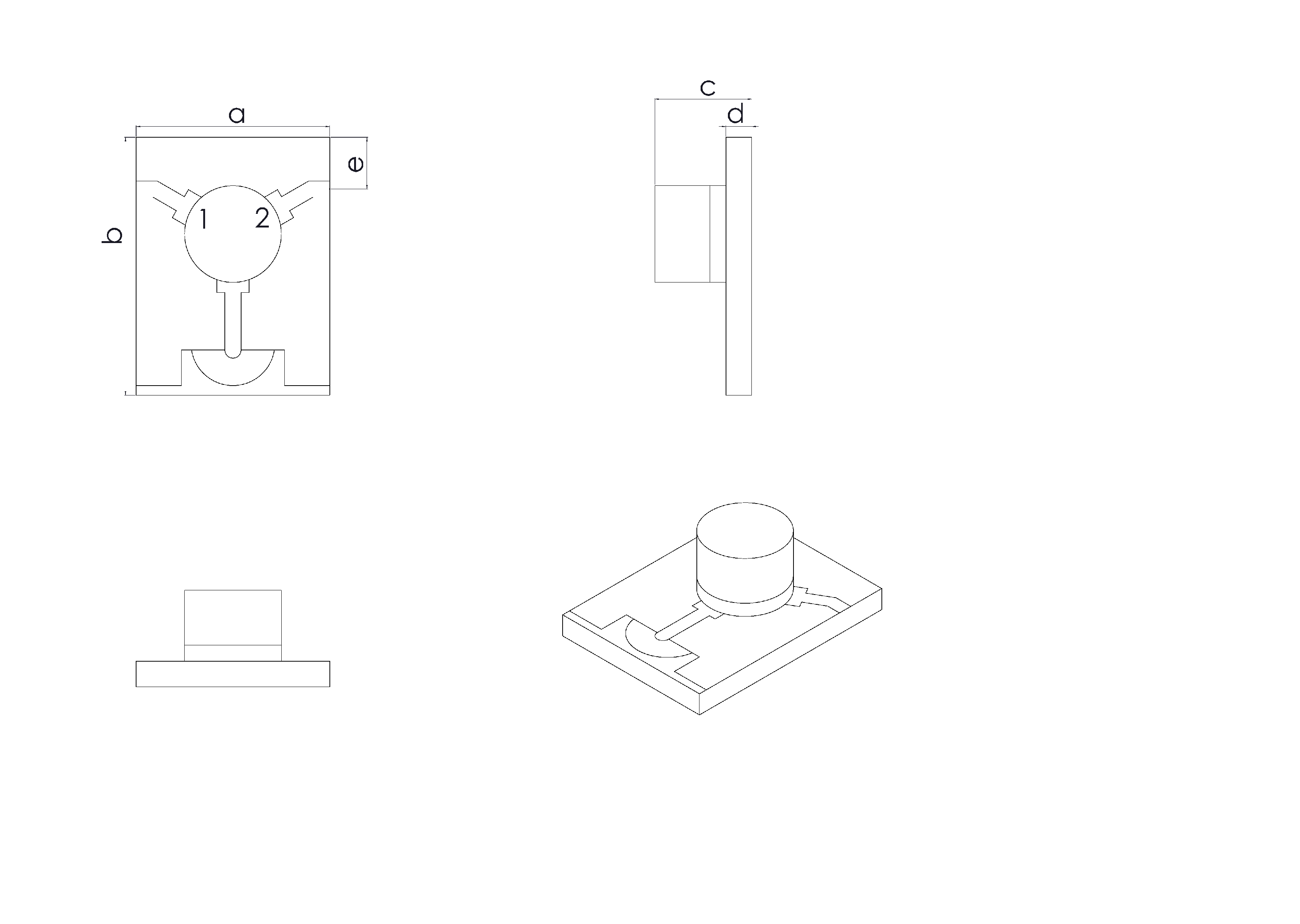

- Outline
- Reviews (0)
Description
The product named OG5A044 is high-performance microstrip isolator. These microstrip isolators are used for impedance matching and decoupling in integrated circuits, facilitating unidirectional transmission and signal processing, ideal for microwave integrated circuits.
OG5A044-17.7-21.2 |
|
|
17.7 GHz to 21.2 GHz, 1.35 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A044-17.7-21.2 |
|
Property |
Value |
|
Frequency (MHz) |
17700-21200 |
|
Return Loss (dB) |
0.6 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
1.35 |
|
IMD3 (dBc) |
10 |
|
Power (W) |
-55 |
|
Operating Temp ( degC) |
+85 to 4.0 |
Features |
|
|
Miniaturization and light weight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, and electronic countermeasures |
|
|
Applicable for microwave communications and microwave testing fields |
|
Applications |
|
|
Plays a role in impedance matching and decoupling in integrated circuits, while providing unidirectional transmission and signal processing functions. |
|
