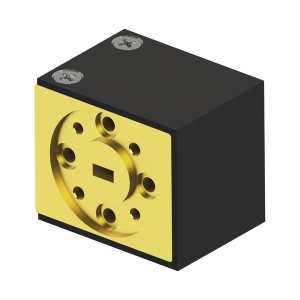

17.7 GHz to 21.617 GHz, 0.3 dB Insertion Loss, -21.6 dB Isolation, Waveguide Series Isolator-OHTD17.7-21.6-17.7-21.6
$0.00
Wide frequency range coverage: 5.5GHz to 110GHz
Available bandwidths: 10%, 20%, 30%, 40%, and octave
Peak power range: 1W to 40MW
Average power range: 1W to 100KW
Applications: Civil, military, aerospace, and space technology
Customizable specifications according to customer requirements
High performance and high reliability
- Description
- Reviews (0)
Description
The product named OHTD17.7-21.6 is high-performance A05 waveguide isolator & circulator, offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors.
OHTD17.7-21.6-17.7-21.6 |
|
|
17.7 GHz to 21.617 GHz, 0.3 dB Insertion Loss, -21.6 dB Isolation, Waveguide Series Isolator-OHTD17.7-21.6-17.7-21.6 |
|
Property |
Value |
|
Frequency (MHz) |
17.7-21.617 |
|
Return Loss (dB) |
7 |
|
Isolation (dB) |
-21.6 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
20 |
|
Power (W) |
19 |
|
Operating Temp ( degC) |
50 to 20 |
Features |
|
|
Wide frequency range coverage: 5.5GHz to 110GHz |
|
|
Available bandwidths: 10%, 20%, 30%, 40%, and octave |
|
|
Peak power range: 1W to 40MW |
|
|
Average power range: 1W to 100KW |
|
|
Applications: Civil, military, aerospace, and space technology |
|
|
Customizable specifications according to customer requirements |
|
|
High performance and high reliability |
|
Applications |
|
|
Offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors. |
|
