170GHz-220GHz ,VSWR(Max):1.085, Waveguide Load 82506

170GHz-220GHz ,VSWR(Max):1.085, Waveguide Load 82506

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

SKU: 82506 Categories: Load, Passive Devices, Waveguide Load

Description

SPEC

Waveguide Load

170GHz-220GHz ,VSWR(Max):1.085, Waveguide Load

82506

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

Property

Value

Min. Frequency (GHz)

170

Max. Frequency (GHz)

220

waveguide

WR5

VSWR(Max)

1.085

Features

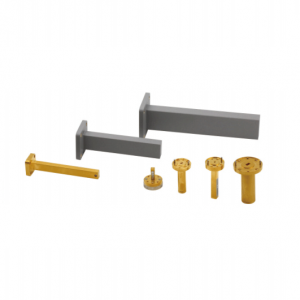

Rich product types

The frequency covers 500GHz

Can be customized according to user needs

PDF

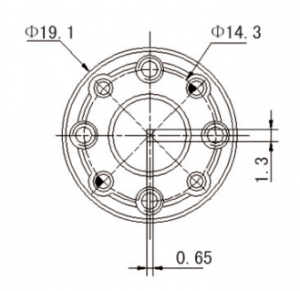

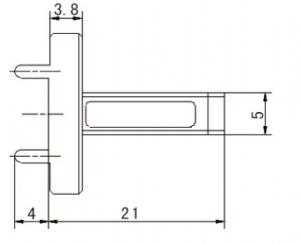

Outline

170GHz-220GHz ,VSWR(Max):1.085,  Waveguide Load   82506170GHz-220GHz ,VSWR(Max):1.085,  Waveguide Load   82506

Additional information

Min. Frequency (GHz)

170

Max. Frequency (GHz)

220

VSWR(Max)

1.085

Waveguide

WR-05
