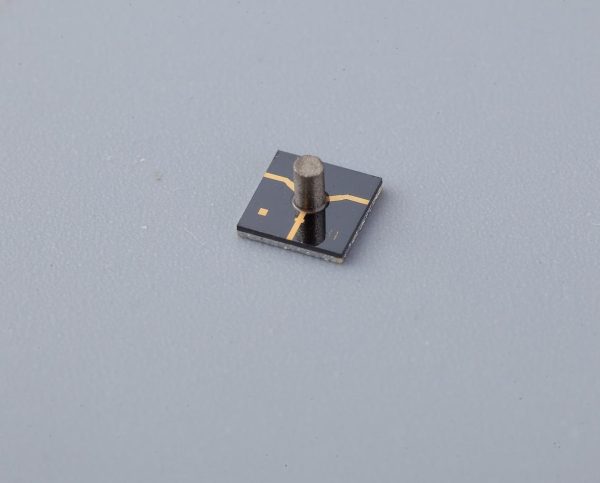

34 GHz to 36 GHz, 1.2 dB Insertion Loss, 16 dB Isolation, GWB Micro-strip Series Isolator-WH3002A2
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Micro-strip Series |
|
|
34 GHz to 36 GHz, 1.2 dB Insertion Loss, 16 dB Isolation, GWB Micro-strip Series Isolator-WH3002A2 |
|
|
WH1502AS14 |
|
|
|
|
|
Property |
Value |
|
Min. Frequency (GHz) |
34 |
|
Max. Frequency (GHz) |
36 |
|
Relative Bandwidth |
5% |
|
Insertion Loss (dB Max) |
1.2 |
|
Isolation (dB Min) |
16 |
|
VSWR (Max) |
1.4 |
|
Load Power (W) |
/ |
|
Connector Type |
GWB |
Additional information
| Min. Frequency (GHz) | 0.2 |
|---|---|
| Max. Frequency (GHz) | 0.3 |
| Relative Bandwidth | |
| Max. Insertion Loss (dB) | |
| Min. Isolation (dB) | |
| VSWR (Max.) | |
| Power Handling (W) | |
| Connection Type |
