18.2 GHz to 21.2 GHz, 0.8 dB Insertion Loss, 17 dB Isolation, GWB Micro-strip Series Isolator-WG2002A
Micro-strip Series isolator with 18.2-21.2 GHz frequency range, 0.8 dB insertion loss, 17 dB isolation
- Description
- Datasheet
- Reviews (0)
Description

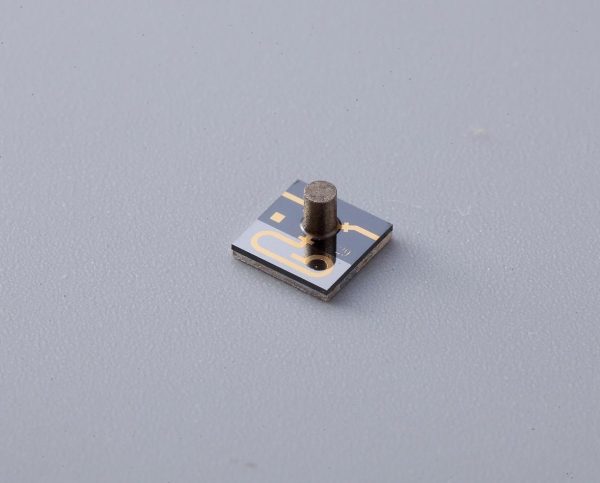

The WG2002A is a high-performance micro-strip series designed for RF and microwave applications. It operates in the frequency range of 18.2-21.2 GHz with 0.8 dB maximum insertion loss and 17 dB minimum isolation.
WG2002A |
|
|
18.2 GHz to 21.2 GHz, 0.8 dB Insertion Loss, 17 dB Isolation, GWB Micro-strip Series Isolator-WG2002A |
|
Property |
Value |
|
Frequency (GHz) |
18.2-21.2 |
|
Bandwidth |
5% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
17 |
|
Insertion Loss (dB) |
0.8 |
|
VSWR |
1.4 |
|
IMD3 (dBc) |
|
|
Power (W) |
0.5 |
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
GWB |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
surface-mount |
Features |
|
|
Frequency Range: 18.2-21.2 GHz |
|
|
Insertion Loss: 0.8 dB Max |
|
|
Isolation: 17 dB Min |
|
|
VSWR: 1.4 Max |
|
|
Power: 0.5 W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
