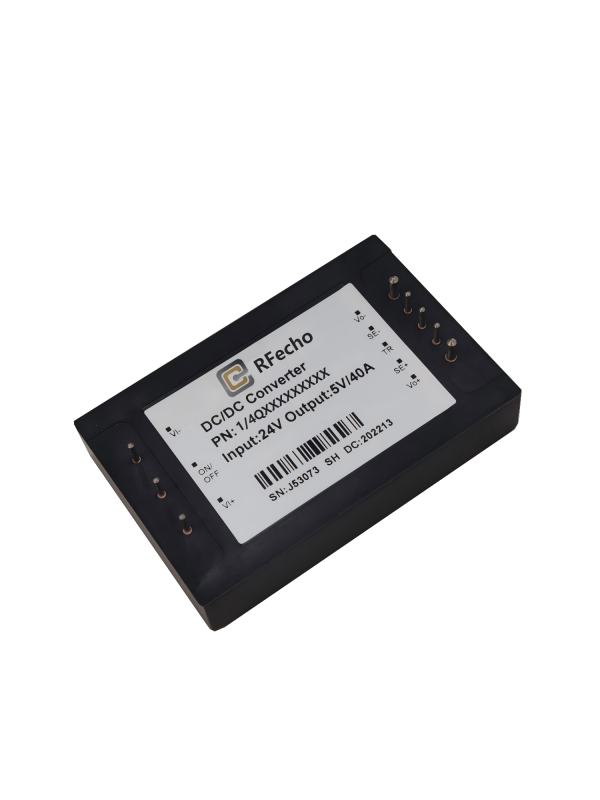

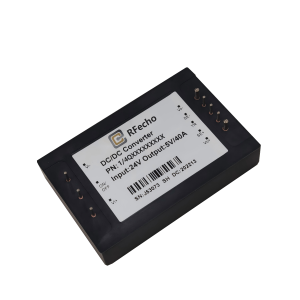

18-36V Input,5V/50A Output Quater Brick
$369.00
High efficiency, 92.0% (5V/50A)
Excellent thermal performance
Wide input-voltage range: 18V-36V
+10%/-20% output trim
Remote sense, remote control, over-voltage, over-current, short-circuit, and over temperature protection
Monotonic start-up into pre-biased load
Designed to meet 1500V Basic Isolation per UL 60950
- Description
- Datasheet
- Reviews (0)
Description
14QC24050050 have high efficiency and power density, with no minimum load requirement, maintain excellent performance even with large output capacitors. Built-in input under-voltage lockout, output over-voltage protection, output over-currentshort-circuit protection, and over temperature protection are included. A fixed switching frequency of 180-350kHz provides predictable EMI. Filters or EMI application circuitry are available to meet high-reliability EMI requirements. The rugged design is suitable for harsh environments and meets high-reliability standards.
14QC24050050 | |
| 18-36V Input,5V/50A Output Quater Brick | |
Property | Value |
| Continuous Input (Vdc) | -0.5 to 40 |
| Transient Input Voltage (<100ms continuous operating) | 50 |
| Nominal Input Voltage(V) | 18-36 |
| Output Voltage(V) | 12 |
| Enabling Logic options | Positive |
| Rated Output Current(A) | 5 |
| Lout(A) | 30-50/50-90 |
| I/O Isolation Voltage (for 1 minute)(Vdc) | 1500 |
| Package Size | Quarter Brick |
Features | |
| Wide input voltage range | |
| High Efficiency | |
| Optimal thermal performance | |
| Remote sense, OnOff control | |
| Over-voltage, over-current,short-circuit, and over temperature protection | |
| Monotonic start-up into pre-biased load | |
| 1500V isolation voltage | |
Applications | |
| For High Reliability Applications | |
