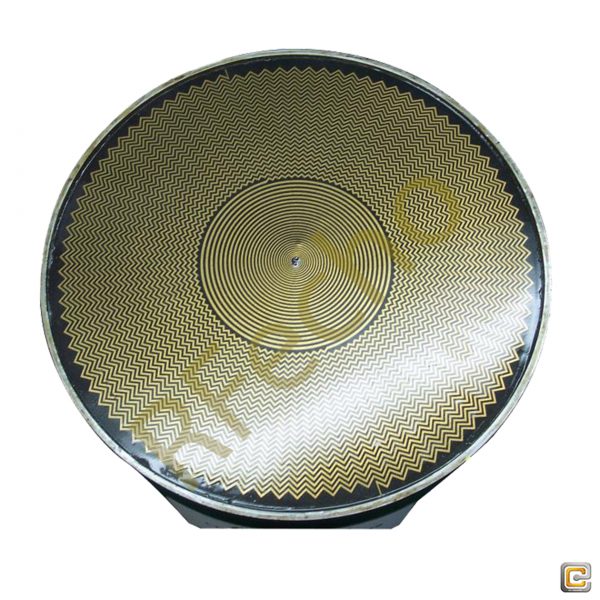

18 GHz to 26.5 GHz Cavity Backed Spiral Antenna OBS-180265

0 out of 5

$1,235 $1,050

The OBS-180265 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 18.0 GHz to 26.5 GHz. The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal.The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).
The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beamwidth,extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare,direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications. The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.

Description

SPEC

Cavity Backed Spiral Antenna

18GHz to 26.5GHz

OBS-180265

The cavity-backed spiral antenna OBS-180265 is a compact, moderate gain, moderate VSWR, circularly-polarized designed to transmit and receive in the frequency band of 18.0 GHz to 26.5 GHz.  The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal. The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).

The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near-constant beamwidth across the frequency band, normally symmetrical radiation beam-width, extreme flexibility for carrying, and lightweight.

The seadvant ages render the antenna a very good candidate for electronic-warfare, direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications.  The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and a height of 50mm.



Applications

Satellite communications
Personal mobile communications
Electronic Warfare, Direction Finding, Telemetry and Surveillance Systems

Embedded Airborne Applications

Features

Very convenient to carry

Wide frequency band

Light Weight

small volume

Easy package

Main lobe width

With circular polarization, wide beam width

Part No.

OBS-180265

Frequency*

Nominal Gain3 dB

VSWR

Pattern

3 dB Beam-width

10 dB Beam-width

Input Impedance

Input Connector

18GHz-26.5GHz

-4 Typ

2.5?1Maximum2.0:1 Typical

Directional Bean

65°Minimum?Typical

120° Typical

50 Ohms Nominal

SMA-female

PDF

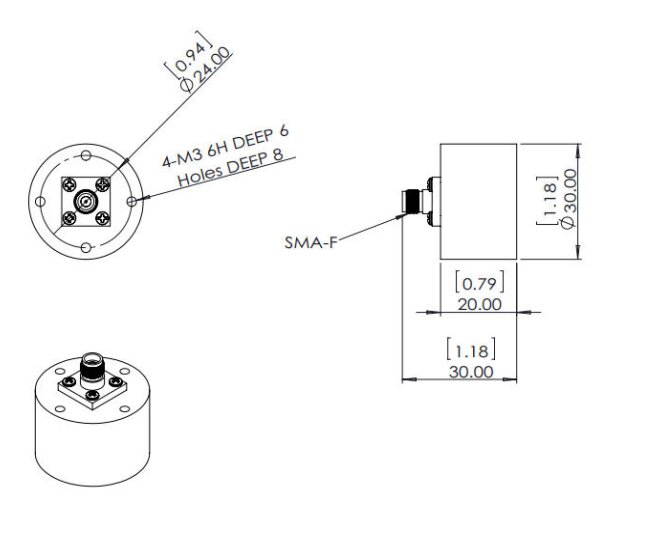

Outline

OBS 180265 outline 18 GHz to 26.5 GHz Cavity Backed Spiral Antenna OBS-180265

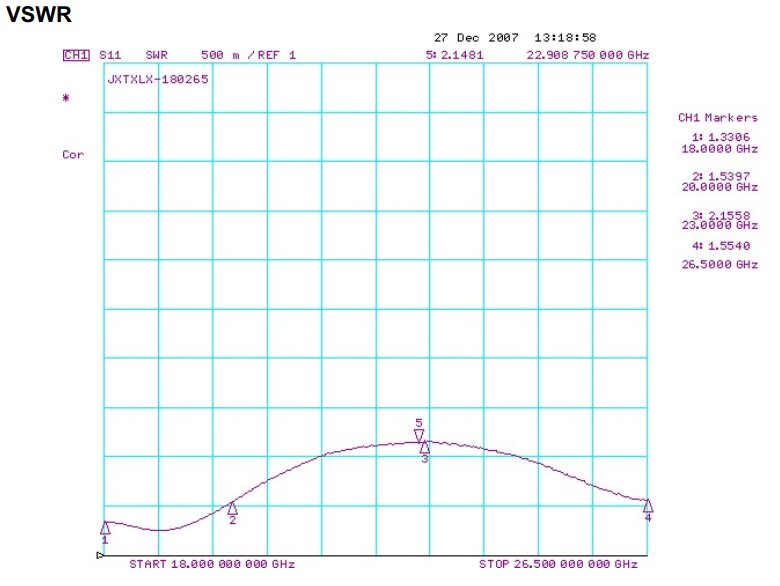

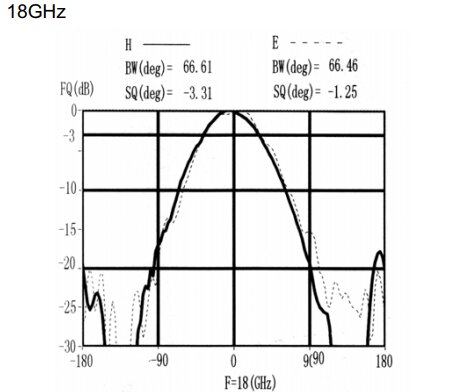

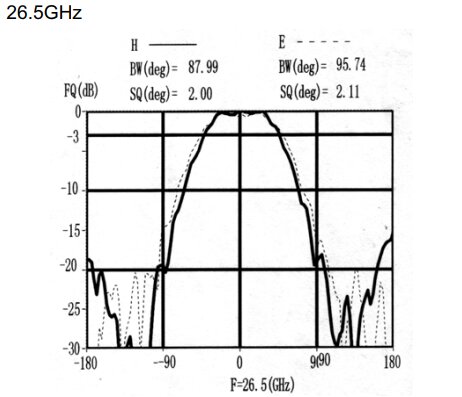

Plot

OBS 180265 plot1 18 GHz to 26.5 GHz Cavity Backed Spiral Antenna OBS-180265OBS 180265 plot2 18 GHz to 26.5 GHz Cavity Backed Spiral Antenna OBS-180265OBS 180265 plot3 18 GHz to 26.5 GHz Cavity Backed Spiral Antenna OBS-180265

Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

26.5

Gain (dBi)

-4 Typ

VSWR

2.5:1

Impedance (Ω)

Connection Type

Polarization
