2.11 GHz to 2.18 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG101B-2110-2180
$0.00
Low Insertion Loss
High Isolation
High Power Handling
Compact Surface Mount Package
Wide Operating Temperature Range
- Description
- Datasheet

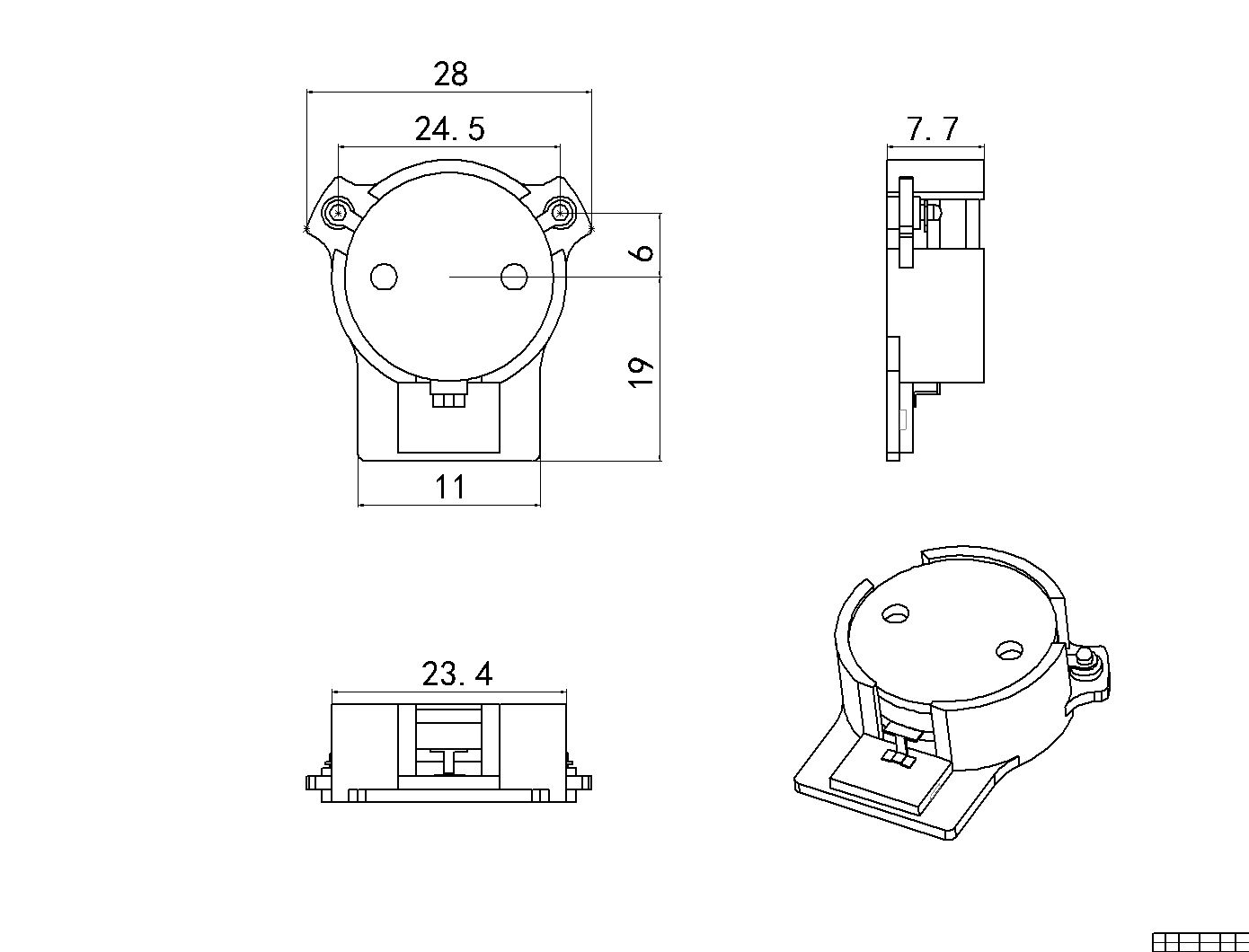

- Outline
- Reviews (0)
Description

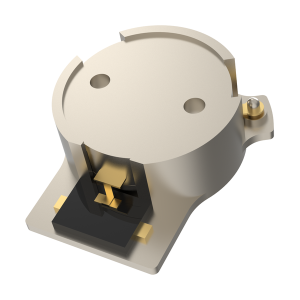

The product named OHYG101B is high-performance stripline surface-mounted isolator designed for robust operation in telecommunication systems. It features excellent isolation, low insertion loss, and high power handling capabilities over various frequency bands.
OHYG101B-2110-2180 |
|
|
2.11 GHz to 2.18 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG101B-2110-2180 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2180 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-72 |
|
Power (W) |
2 |
|
Power note |
2*50W |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
High Power Handling |
|
|
Compact Surface Mount Package |
|
|
Wide Operating Temperature Range |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
