2.11 GHz to 2.18 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, SMD Series Isolators Isolator-OHYG105H-2110-2180
$0.00
Surface-mount package for automated PCB assembly
High isolation of 23 dB
Low insertion loss of 0.25 dB
Stable performance across -40 to +120 degC
Integrated IMD3 suppression
- Description
- Datasheet

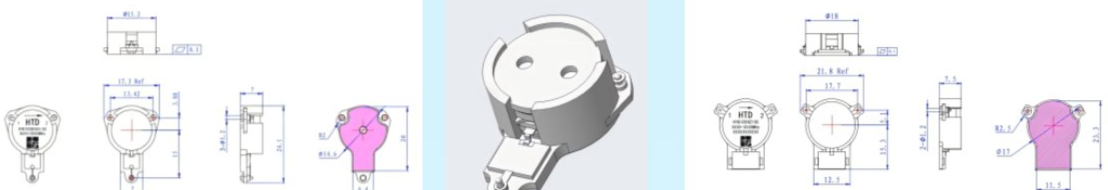

- Outline
- Reviews (0)
Description

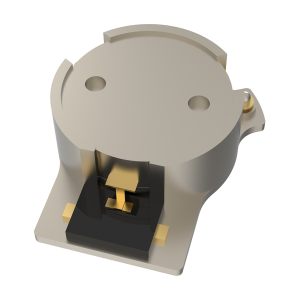

The product named OHYG105H-2110-2180 is high-performance surface-mounted isolator utilizing stripline technology tOprovide superior signal routing and protection in the 2110-2180 MHz range.
OHYG105H-2110-2180 |
|
|
2.11 GHz to 2.18 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, SMD Series Isolators Isolator-OHYG105H-2110-2180 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2180 |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-69 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Surface-mount package for automated PCB assembly |
|
|
High isolation of 23 dB |
|
|
Low insertion loss of 0.25 dB |
|
|
Stable performance across -40 to +120 degC |
|
|
Integrated IMD3 suppression |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
