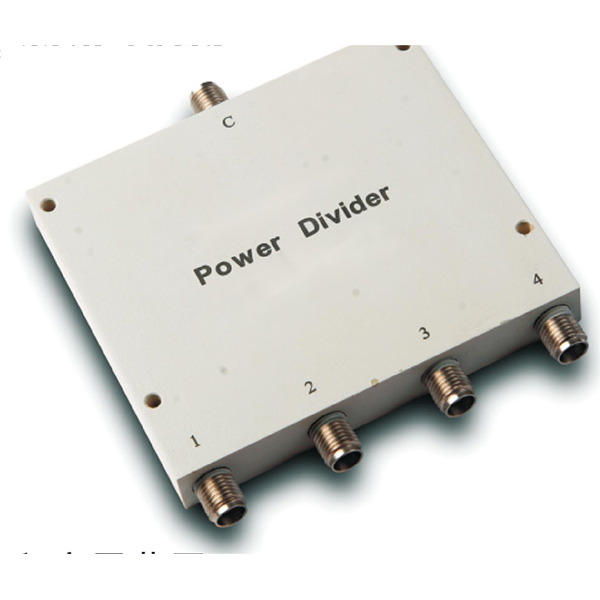

2-18GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider
SMA connectors
0-degree power divider
Full series coverage 0.5-18GHz
Small size
Low loss
Low VSWR
High isolation
Batch production consistency
Suitable for large-volume requirements
4-way microwave signal distribution and combination
- Description
- Datasheet

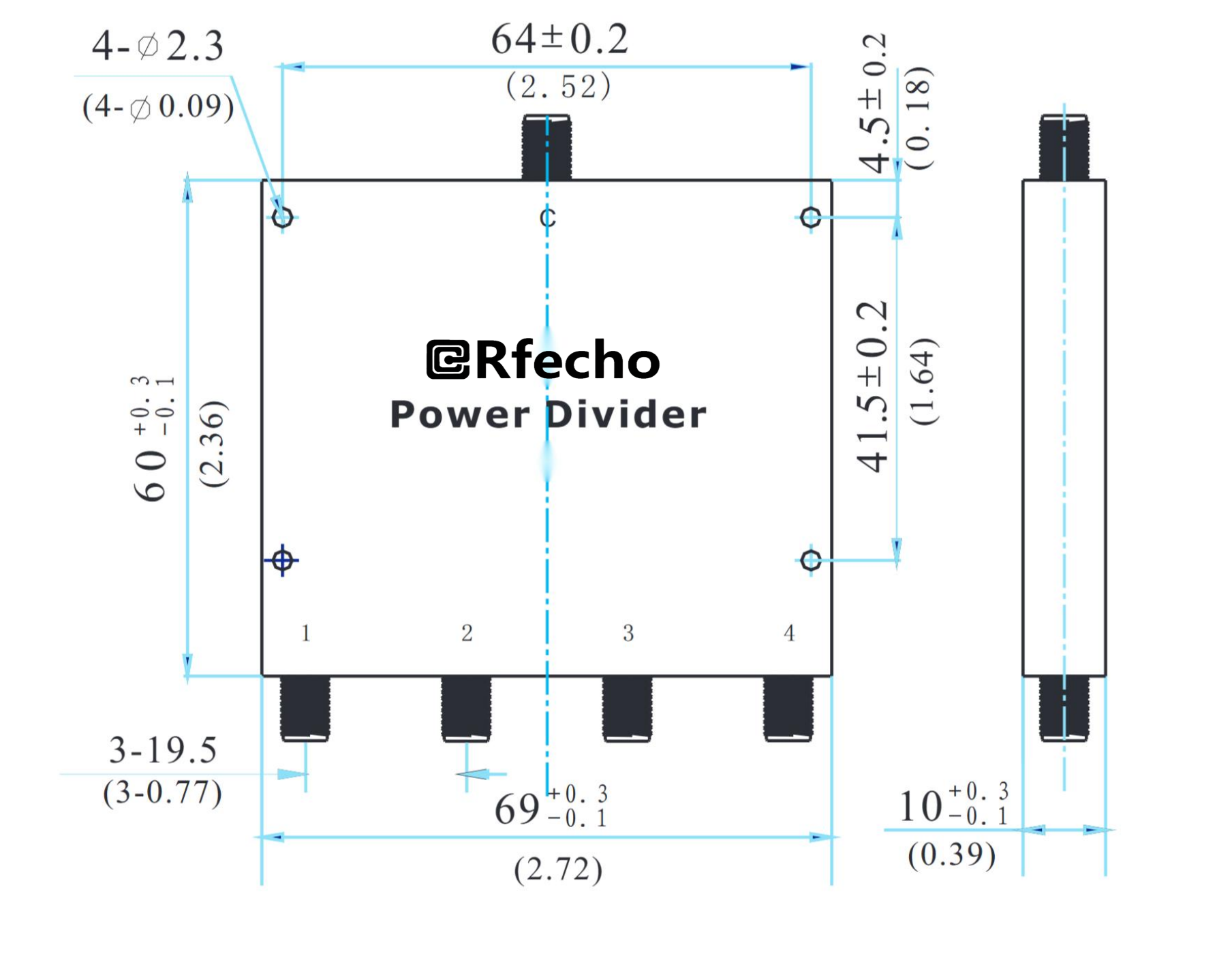

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0-degree power dividers with SMA connectors, covering the full 0.5-18GHzrange. Features include small size, low loss, low VSWR,and high isolation. This series utilizes batch production control methods, ensuring high product consistency and meet-ing large-volume delivery requirements. The OPD-A0412 isprimarily used in electronic countermeasures, testing, andmeasurement of ultra-wideband systems for the distributionand combination of 4-way microwave signals. Standardizedand customizable options are available.
OPD-A0412 |
|
|
2-18GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-18GHz |
|
Insertion Loss |
2.20dB |
|
Isolation |
16dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.60dB |
|
Phase Balance |
±10° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.65 |
|
Output VSWR |
1.6 |
|
Compliance |
Meets ‘GJB-1426-92’ test requirements |
Features |
|
|
SMA connectors |
|
|
0-degree power divider |
|
|
Full series coverage 0.5-18GHz |
|
|
Small size |
|
|
Low loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
Batch production consistency |
|
|
Suitable for large-volume requirements |
|
|
4-way microwave signal distribution and combination |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
