OH531A Drop-in Circulator
← Back to circulator catalogDrop-in RF circulator
2400–2500 MHz · 0.30 dB insertion loss max.
20 dB isolation min. · 100 W
OH531A-2400-2500
- Description
- Datasheet
- Outline
- Data
- Reviews (0)
Description
Technical specifications
2400–2500 MHzFrequency range
0.30 dB max.Insertion loss
20 dB min.Isolation
- Frequency range
- 2400–2500 MHz
- Insertion loss
- 0.30 dB maximum
- Isolation
- 20 dB minimum
- Return loss
- 20 dB minimum
- Power rating
- 100 W
- IMD3
- −62 dBc at 2 × 10 W
- Operating temperature
- −40 to +85 °C
- Body dimensions
- 12.70 × 12.70 × 8.00 mm
- Mounting holes
- 4 × M2 through; 9.70 mm pitch
- RF tab height above base
- 3.0 ± 0.3 mm
- RF tab width / extension
- 0.60 mm / 2.0 ± 0.3 mm
Circulator details

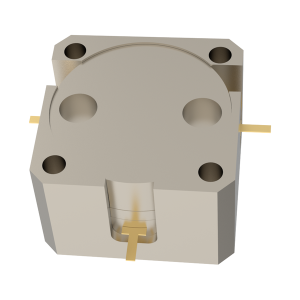

OH531A — 2400–2500 MHz — Three-port drop-in circulator
The OH531A-2400-2500 is an embedded stripline circulator with three RF tab connections. The specified insertion loss is 0.30 dB maximum, with isolation and return loss of 20 dB minimum.

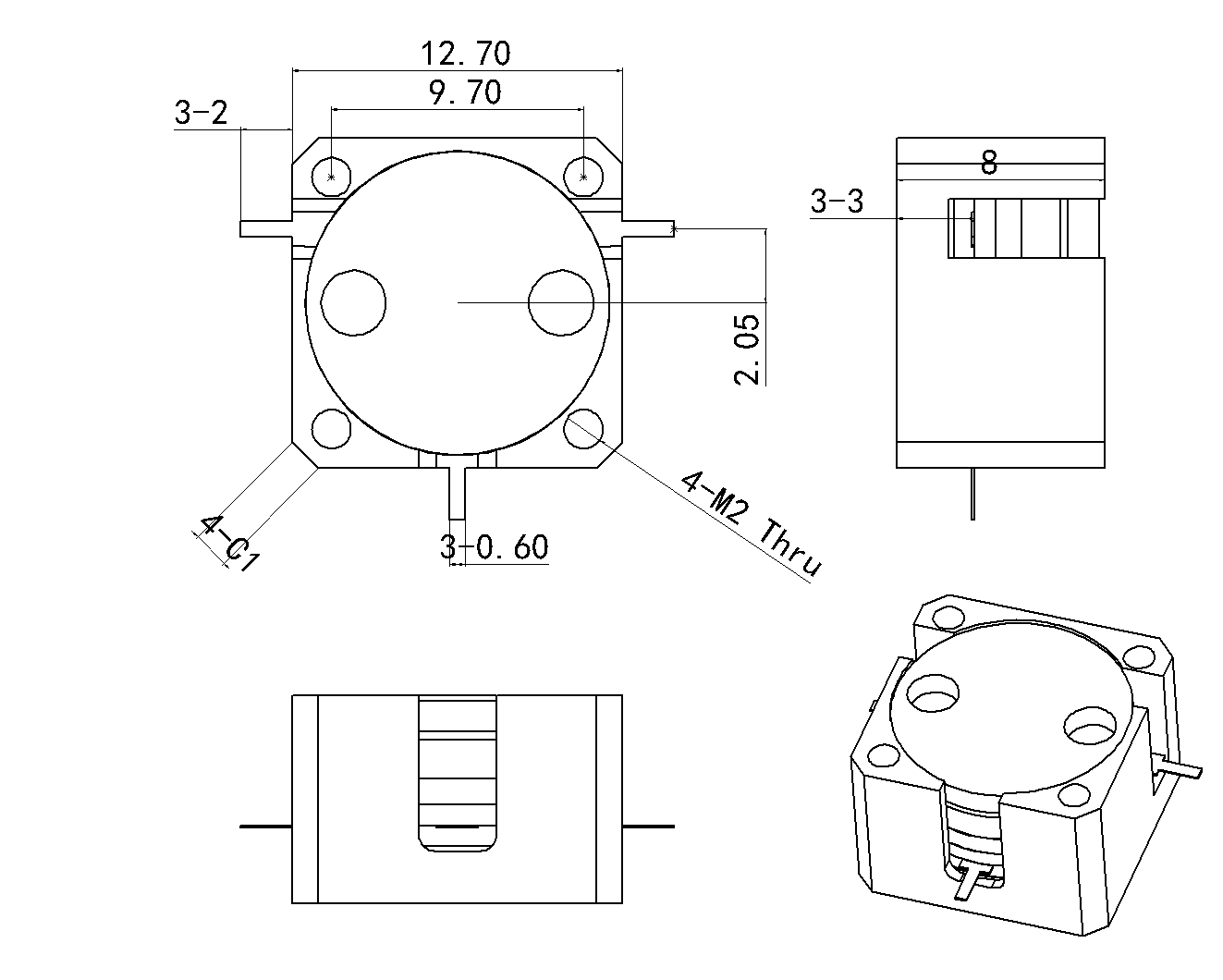

Mechanical outline

Performance illustrations
Product datasheet
Full specifications, solid mechanical dimensions and frequency-remapped performance illustrations.
