Flexible Routing — OM-160FLEX Armored RF Cable

om 102flex sma sma armored transparent wm.png High-Frequency Flex — OM-102FLEX Armored RF Cable
om 195tc n n plain transparent wm.png Flexible Testing — OM-195TC RF Cable
0 out of 5
( There are no reviews yet. )

$119.07 – $428.65

E-Testing ECO

2.4 mm male to 2.4 mm male · 40 GHz

F016-131S0-131S0-400-C

SKU: F016-131S0-131S0-400-C Categories: E-Testing ECO, OM-160Flex, RF Cables
Add to Wishlist

Description

Technical specifications

40 GHzMaximum frequency
OM-160FLEXFlexible coaxial cable
Ø 3.94 mmBase cable jacket diameter
End A
2.4 mm male, straight
End B
2.4 mm male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
ETFE
Base cable construction
PTFE, solid silver-plated copper conductor, triple shield
Repeated bend radius, base cable
20.32 mm

Cable details

OM-160FLEX armoured cable bend detail
Armoured cable routing · Illustrative bend.

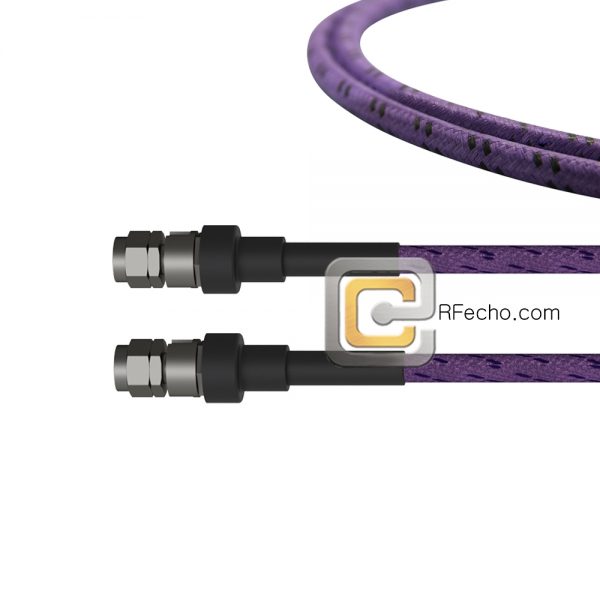

2.4 mm straight male connector close-up
2.4 mm male × 2

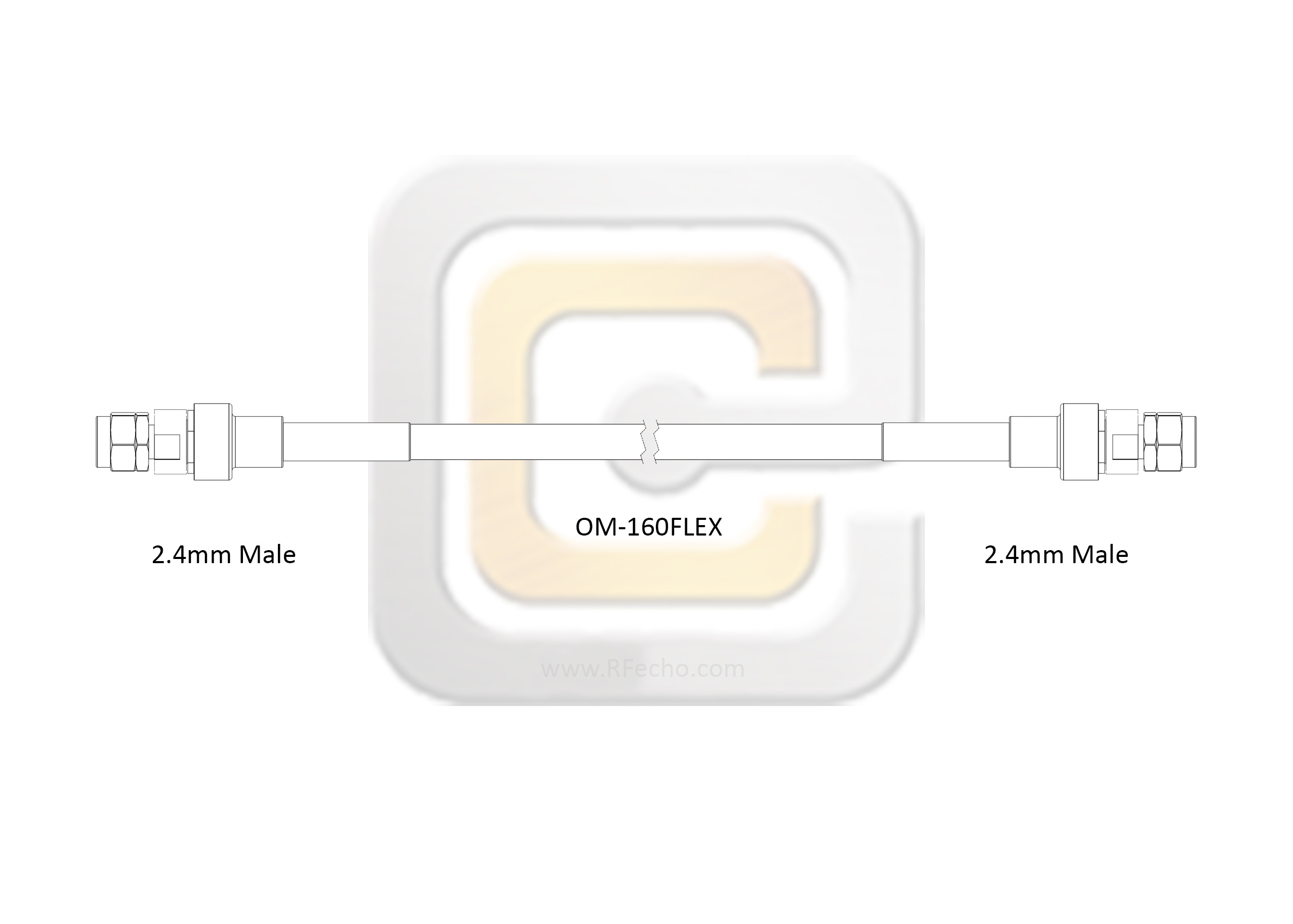

2.4 mm male  —  OM-160FLEX  —  2.4 mm male

Include your required cable length and operating frequency when requesting a quote.

Cable cutaway

OM-160FLEX base cable cutaway
Illustrative base cable construction. Layer thicknesses are schematic.

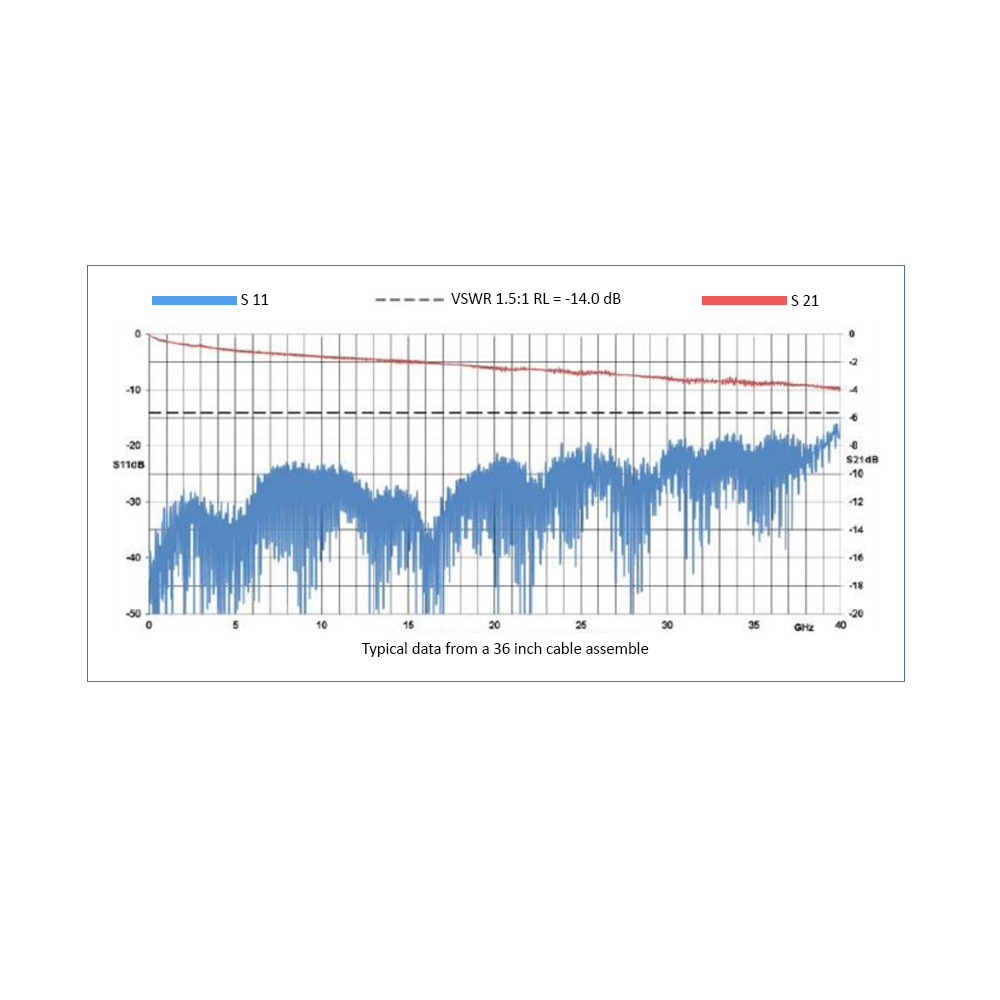

Typical base cable attenuation

OM-160FLEX loss versus frequency
Frequency Loss
3 GHz 0.73 dB/m
6 GHz 1.05 dB/m
12 GHz 1.58 dB/m
26 GHz 2.47 dB/m
40 GHz 3.19 dB/m

Typical base cable values exclude connector losses. Bend radii above apply to the base cable.
