2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male Connector

2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male Connector

Model D371-P09-F04 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is 2 Hole, where the flange size is .500″ Long. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches.

Description

SPEC

2.40mm Connectors

2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male Connector

D371-P09-F04

Model D371-P09-F04 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is 2 Hole, where the flange size is .500″ Long. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

.500″ Long

Mounting

2 Hole

Accept Pin Diameter (inch)

0.009″

Gender

Male

Features

Low VSWR

Free through 50 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

D371 P09 F04 outline 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male Connector

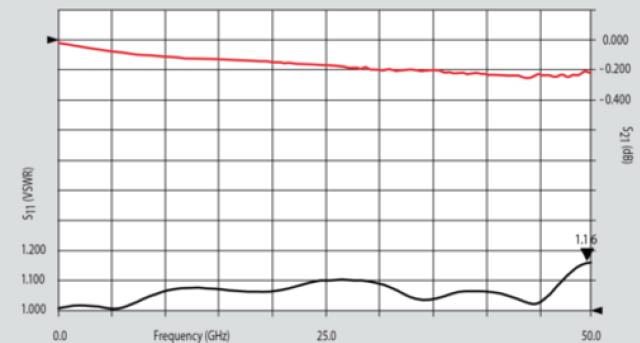

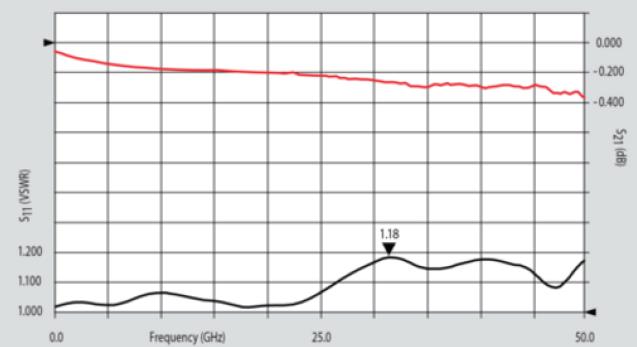

Plot

D371 P09 F04 plot1 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male ConnectorD371 P09 F04 plot2 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, 2 Hole .500″ Long Mounting Flange Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
