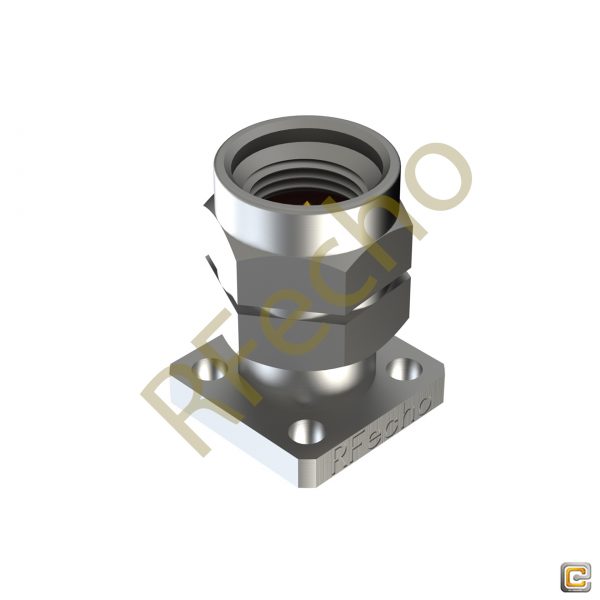

2.40mm 50 GHz, 0.012″ Accept Pin Diameter, 4 Hole .375″ Square Mounting Flange Male Connector
Model D371-P12-F02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.
2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is 4 Hole, where the flange size is .375″ Square. This model of 2.40mm connector provide the accept pin diameter of 0.012″ inches.
- Description
- Additional information
- Reviews (0)
Description
2.40mm Connectors |
|
2.40mm 50 GHz, 0.012″ Accept Pin Diameter, 4 Hole .375″ Square Mounting Flange Male Connector |
|
D371-P12-F02 |
|
Model D371-P12-F02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB. 2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is 4 Hole, where the flange size is .375″ Square. This model of 2.40mm connector provide the accept pin diameter of 0.012″ inches. |
|
Property |
Value |
Min. Frequency (GHz) |
DC |
Max. Frequency (GHz) |
50 |
Flange (inch) |
.375″ Square |
Mounting |
4 Hole |
Accept Pin Diameter (inch) |
0.012″ |
Gender |
Male |
Features |
|

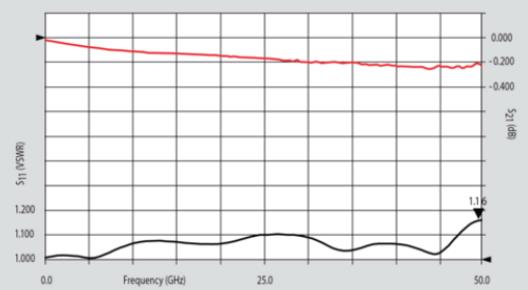

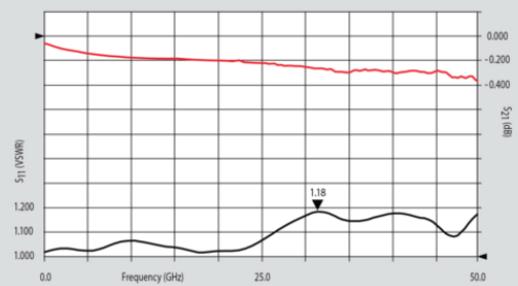

Low VSWR |
|
Free through 50 GHz |
|
Applications |
|
Telecom Communication |
|
Sub-assemblies |
|
Radio equipment and instruments |
|
Wireless Communication |
|
Test Labs |
|
Instrumentations |
Additional information
Min. Frequency (GHz) | DC |
---|---|
Max. Frequency (GHz) | 50 |
Flange (inch) | |
Mounting | |
Accept Pin Diameter (inch) | |
Gender |
