2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

Model D371-P12-Y02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.012″ inches.

Description

SPEC

2.40mm Connectors

2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In NA Mounting Flange Male Connector

D371-P12-Y02

Model D371-P12-Y02 is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.012″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

NA

Mounting

Thread-In

Accept Pin Diameter (inch)

0.012″

Gender

Male

Features

Low VSWR

Free through 50 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

D371 P12 Y02 outline 2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

Plot

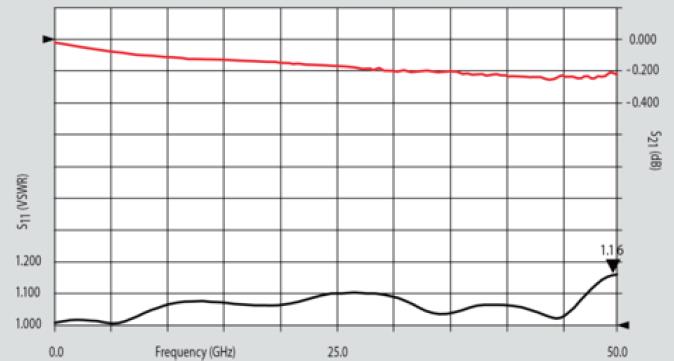

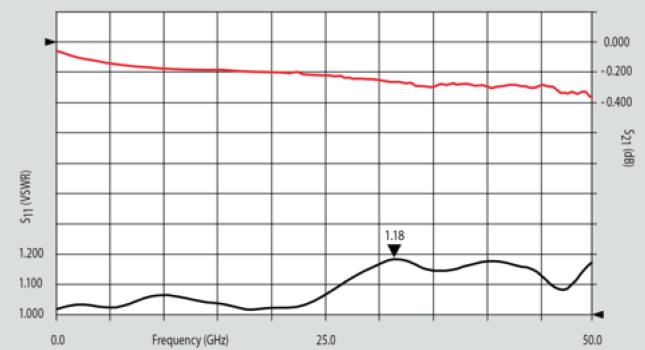

D371 P12 Y02 plot1 2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In Male ConnectorD371 P12 Y02 plot2 2.40mm 50 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
