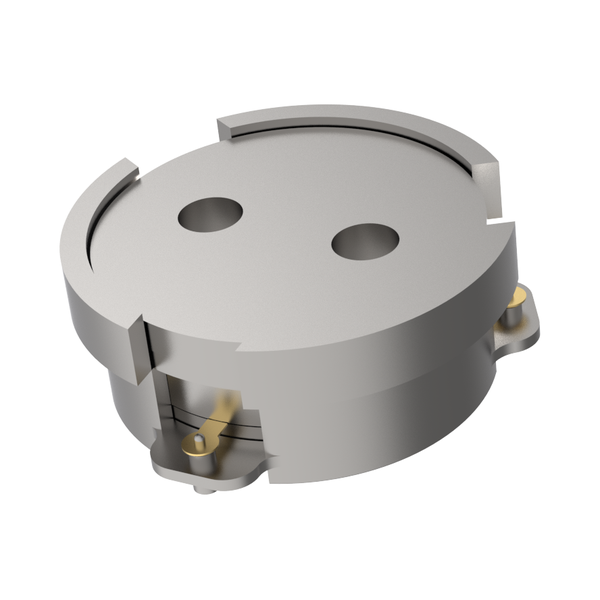

2.496 GHz to 2.69 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OHYH102B-2496-2690
Surface mount design for easy PCB integration
High isolation (20 dB)
Low insertion loss (0.30 dB)
High power handling (160W)
Wide operating temperature range (-40 degC to +120 degC)
Low IMD3 (-65 dBc @ 2*30W)
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The product named OHYH102B-2496-2690 is high-performance stripline surface mount circulator designed for telecommunications and RF applications requiring high isolation and low insertion loss.
OHYH102B-2496-2690 | |
| 2.496 GHz to 2.69 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OHYH102B-2496-2690 | |
Property | Value |
| Frequency (MHz) | 2496-2690 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -65 |
| Power (W) | 160 |
| Power note | 2*30W |
| Operating Temp ( degC) | -40 to 120 |
Features | |
| Surface mount design for easy PCB integration | |
| High isolation (20 dB) | |
| Low insertion loss (0.30 dB) | |
| High power handling (160W) | |
| Wide operating temperature range (-40 degC to +120 degC) | |
| Low IMD3 (-65 dBc @ 2*30W) | |
Applications | |
| Designed for robust performance in communication systems. | |
