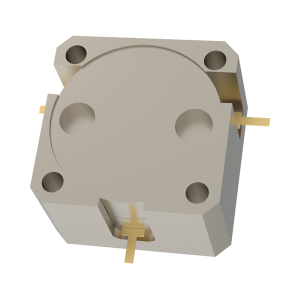

2.496 GHz to 2.69 GHz, 0.3 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYH524C-2496-2690
$0.00
Embedded circulator design
High isolation of 22 dB
Low insertion loss of 0.30 dB
High power handling capability up to 160W
Operating temperature range from -40 to +85 Celsius
- Description
- Reviews (0)
Description
The product named OHYH524C-2496-2690 is high-performance stripline embedded circulator designed for RF signal isolation and routing in telecommunication systems.
OHYH524C-2496-2690 |
|
|
2.496 GHz to 2.69 GHz, 0.3 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYH524C-2496-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2496-2690 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 85 |
Features |
|
|
Embedded circulator design |
|
|
High isolation of 22 dB |
|
|
Low insertion loss of 0.30 dB |
|
|
High power handling capability up to 160W |
|
|
Operating temperature range from -40 to +85 Celsius |
|
Applications |
|
|
Designed for telecommunications applications, featuring robust performance and reliable signal isolation. |
|
