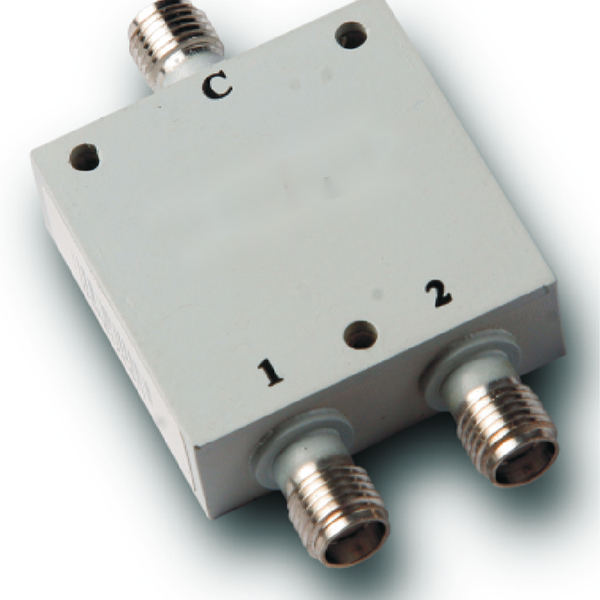

2-4GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider
Frequency Range: 2-4GHz
Insertion Loss: 0.35dB
Isolation: 20dB
Input VSWR: 1.25
Output VSWR: 1.20
Amplitude Balance: ±0.20dB
Phase Balance: ±2°
Connector: SMA-F
Power Handling: 30W
Small size, low loss, low VSWR, high isolation
High consistency mass production
- Description
- Datasheet

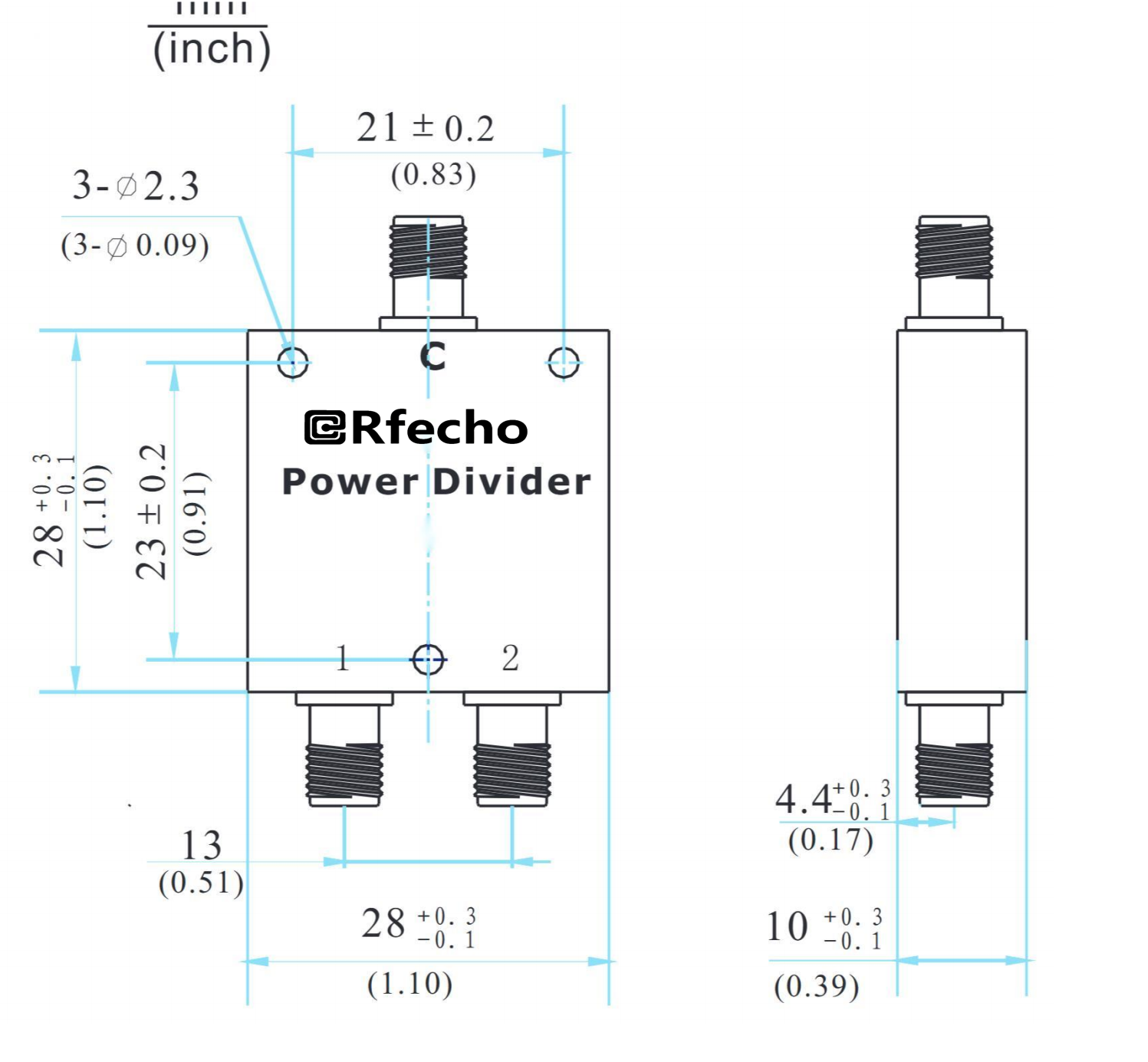

- Outline
- Reviews (0)
Description
The A series power dividers are SMA connector 0° power dividers, covering the full series of 0.5-18GHz. They fea-ture small size, low loss, low VSWR, and high isolation.This series utilizes mass production control measures, ensuring consistent product quality and meeting large-scaleuser supply requirements. The OPD-A0232 is mainly usedin electronic countermeasures, radar, navigation, test andmeasurement, and communication systems for the distribution and combination of 2-way microwave signals.
OPD-A0232 | |
| 2-4GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-4GHz |
| Insertion Loss | 0.35dB |
| Isolation | 20dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.20dB |
| Phase Balance | ±2° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.25 |
| Output VSWR | 1.2 |
| Compliance | Meets GJB-1509-1992 test items and requirements |
Features | |
| Frequency Range: 2-4GHz | |
| Insertion Loss: 0.35dB | |
| Isolation: 20dB | |
| Input VSWR: 1.25 | |
| Output VSWR: 1.20 | |
| Amplitude Balance: ±0.20dB | |
| Phase Balance: ±2° | |
| Connector: SMA-F | |
| Power Handling: 30W | |
| Small size, low loss, low VSWR, high isolation | |
| High consistency mass production | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
