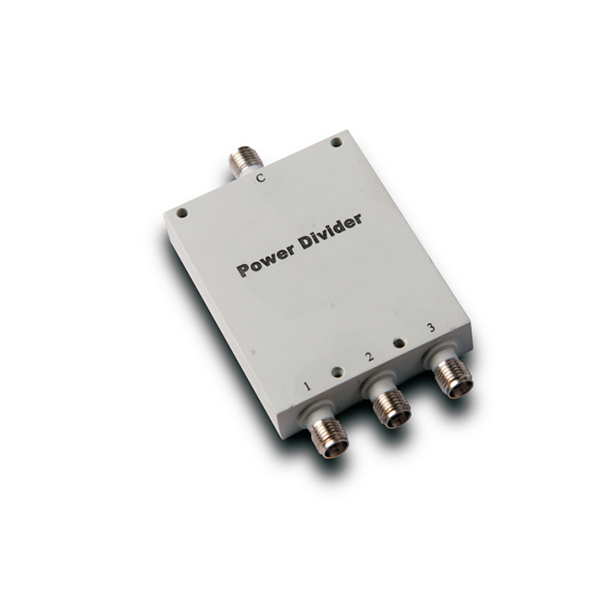

2-4GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Series frequency coverage: 0.5-18GHz
Small size, low loss, low VSWR, high isolation
High batch production consistency
Applications: Electronic countermeasures, radar, navigation, test and measurement, communication systems
Function: 3-way microwave signal distribution and synthesis
Standardized product, customizable designs available
- Description
- Datasheet

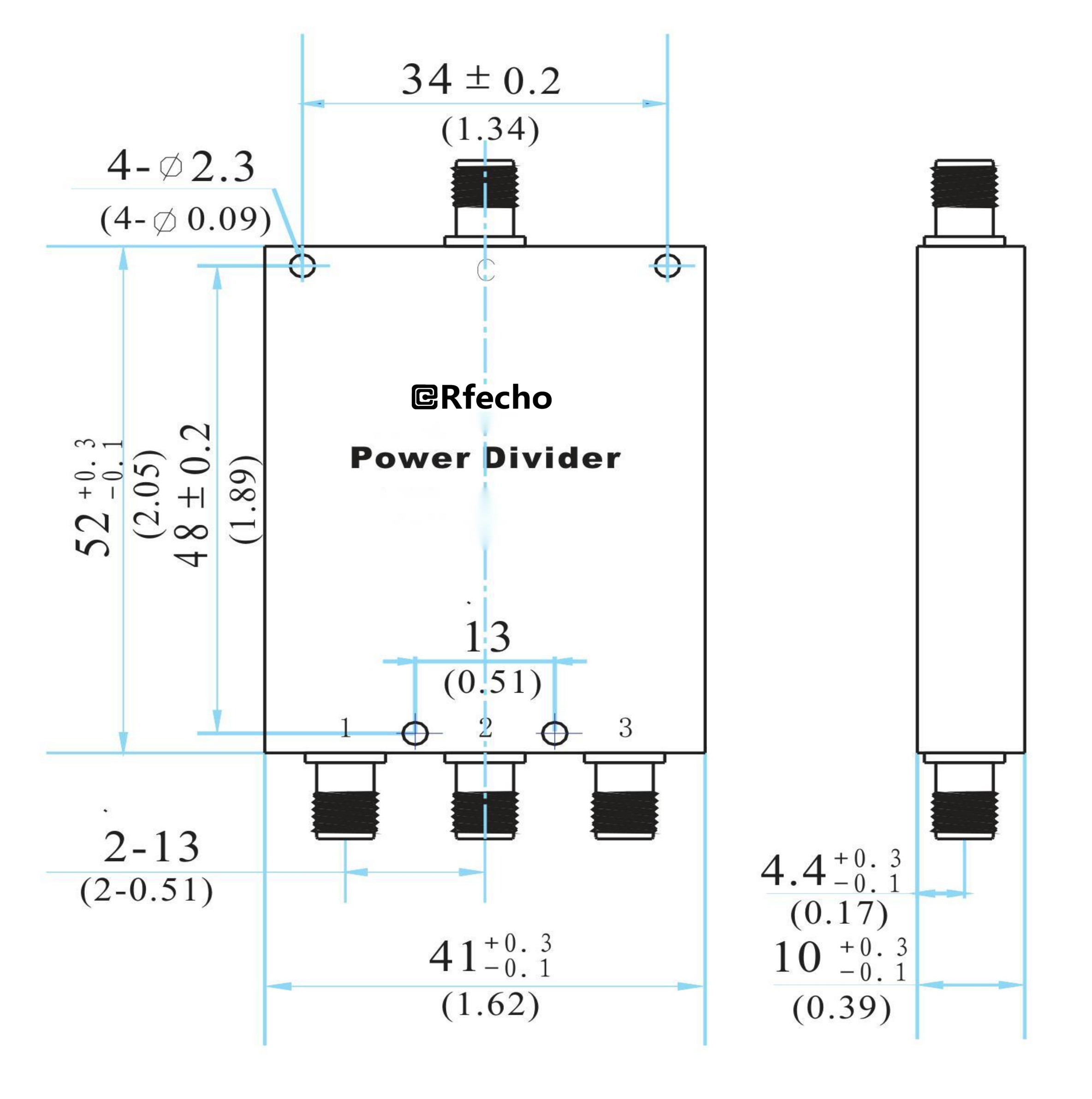

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range. Features in-clude small volume, low loss, low VSWR, and high isolation.This series uses batch production control methods, resulting in high product consistency capable of meeting large-vol-ume supply requirements. The OPD-A0332 is primarily usedin electronic countermeasures, radar, navigation, test andmeasurement, and communication systems for the distribution and synthesis of 3-way microwave signals.
OPD-A0332 | |
| 2-4GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-4GHz |
| Insertion Loss | 0.60dB |
| Isolation | 18dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.30dB |
| Phase Balance | – |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.3 |
| Output VSWR | 1.3 |
| Compliance | Meets ‘GJB-1509-1992’ test items and requirements |
Features | |
| SMA connector 0° power divider | |
| Series frequency coverage: 0.5-18GHz | |
| Small size, low loss, low VSWR, high isolation | |
| High batch production consistency | |
| Applications: Electronic countermeasures, radar, navigation, test and measurement, communication systems | |
| Function: 3-way microwave signal distribution and synthesis | |
| Standardized product, customizable designs available | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
