OHP-2600-6000:

  • Cut Off Frequency: 2.6GHz,
  • Pass Band Frequency:  2.6-6GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥50 dB @ DC -2.3 GHz.
SKU: OHP-2600-6000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-2600-6000:

  • Cut Off Frequency: 2.6GHz,
  • Pass Band Frequency:  2.6-6GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥50 dB @ DC -2.3 GHz.

PDF

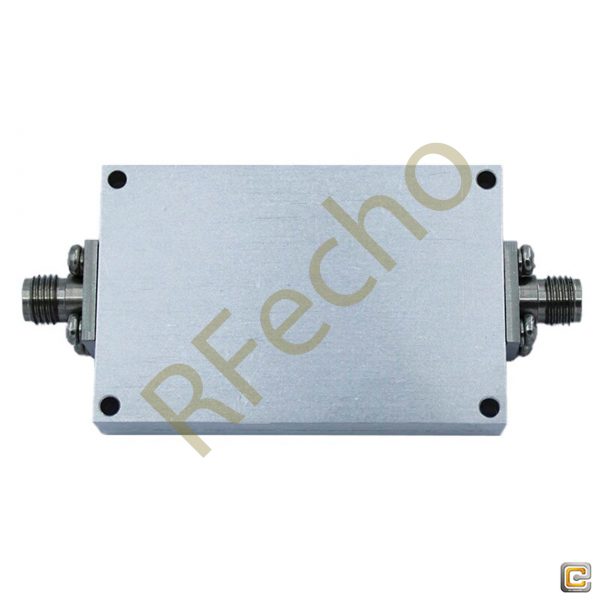

Outline

2.6 GHz to 6 GHz Rejection ≥50 dB @ DC -2.3 GHz High Pass Cavity Filter 01

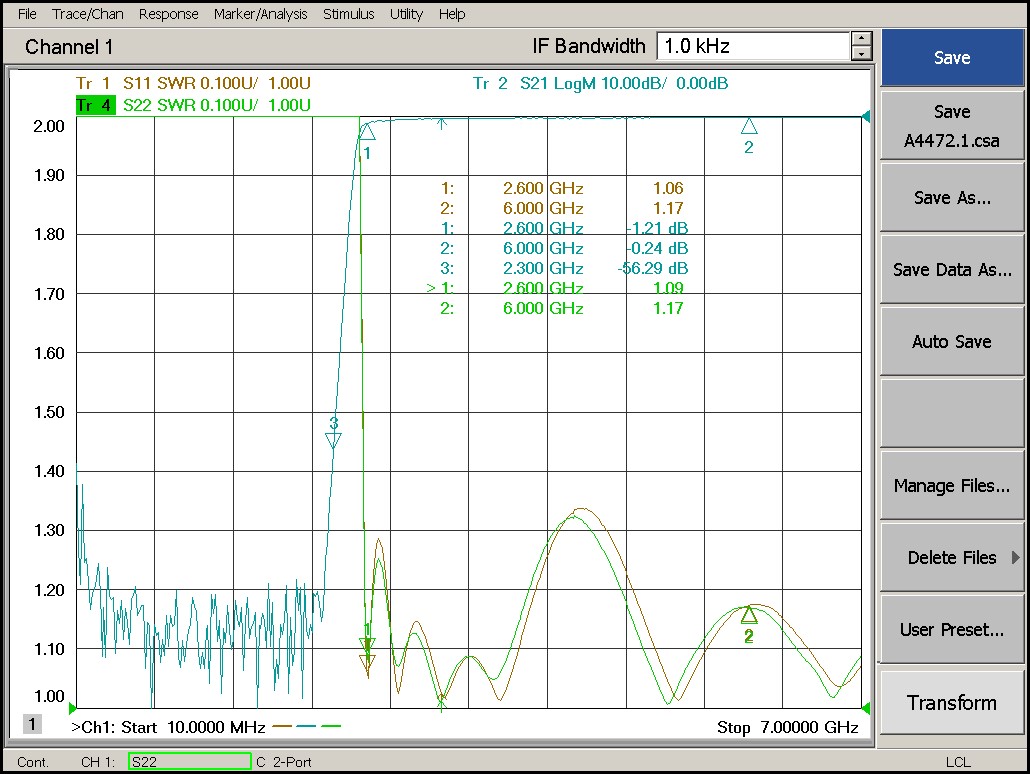

Plot

2.6 GHz to 6 GHz Rejection ≥50 dB @ DC -2.3 GHz High Pass Cavity Filter 02

Additional information

Weight 0.045 kg
Min. Pass Band Frequency (GHz)

2.6

Max. Pass Band Frequency (GHz)

6

Connection Type

SMA-Female

Power Handling (W)

≤5

Insertion Loss

≤2.0dB

VSWR

≤1.6:1

Rejection

≥50 dB @ DC -2.3 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
