2-6GHz 100W Ultra-Wideband Solid-State Power Amplifier
Frequency range: 2-6GHz
Output power: ≥100W (typ. 120W).
Power gain: ≥50dB Typ.
Supply voltage: +28VDC Typ.
Compact size and light weight
Built-in over-temperature, over-voltage and over-current protection
Enable control function for easy system integration
OTY0206P100 Ultra-Wideband Solid-State Power Amplifier also suits electronic countermeasure and jamming systems
This Solid-State Power Amplifier is effective for EMC and test & measurement applications
- Description
- Datasheet

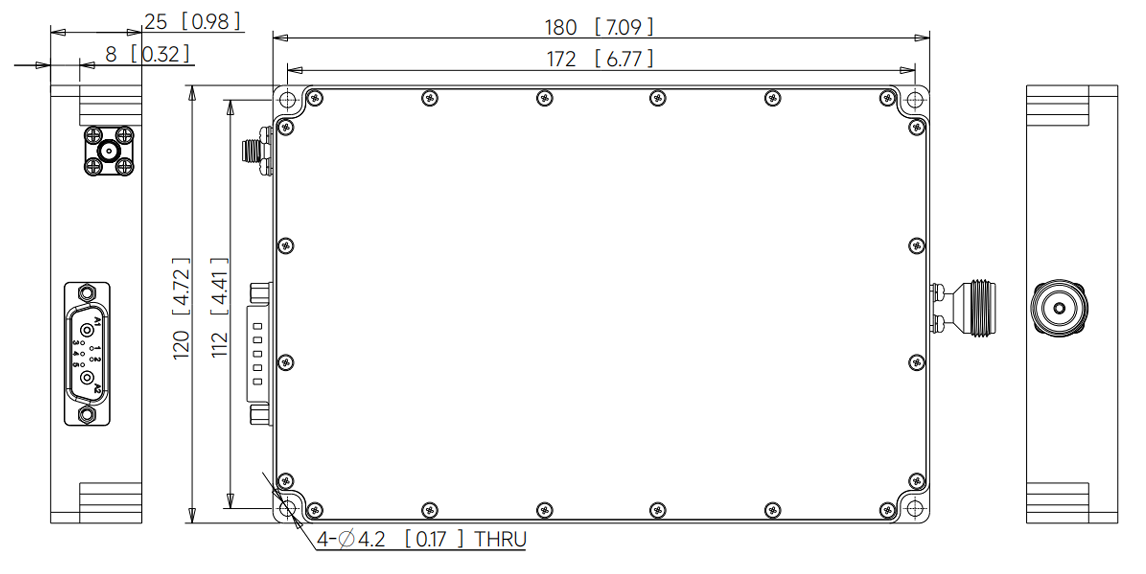

- Outline
- Reviews (0)
Description
Solid-State Power Amplifier Specifications | |
| 2GHz to 6GHz | |
| OTY0206P100 | |
Property | Value |
Electrical Specifications | |
| Frequency Range | 2 GHz ~ 6 GHz |
| Saturated Output Power | ≥ 100 W (typ. 120 W) |
| Power Gain | ≥ 50 dB (typ. 51 dB) |
| Gain Flatness | ±2 dB |
| Input Return Loss | ≤ −10 dB |
| Harmonic Suppression (@100 W) | ≤ −12 dBc |
| Spurious Suppression (@PSAT) | ≤ −60 dBc |
| Input/Output Impedance | 50 Ω |
Physical & Environmental | |
| Dimensions | 180 mm × 120 mm × 25 mm |
| Weight | ≤ 2 kg |
| Operating Temperature | −30 °C ~ +55 °C |
| Storage Temperature | −40 °C ~ +65 °C |
Absolute Maximum Ratings | |
| Input RF Drive Level (without damage) | +10 dBm (max.) |
| Load VSWR (POUT = 100 W) | 3:1 (all load phases and amplitudes continuous) |
| Thermal Overload | 85 °C ±5 °C shutdown (max.) |
Power Supply & Consumption | |
| Supply Voltage | +24 V ~ +32 V DC (typ. +28 V DC) |
| Operating Current | typ. 20 A (@100 W output) |
| Max. Power Consumption | approx. 560 W (typ., +28 V DC × 20 A) |
Interface Definition | |
| X1 — RF IN | SMA-K (Female) / RF Input |
| X2 — RF OUT | N-K (Female) / RF Output |
| X3 — DC/Control | D-Sub 7W2 (Male, Mixed Contact) / Power Supply & Control |
X3 Interface Pin Assignment | |
| A1 — GND | Power Ground / Ground |
| A2 — VDD | +28 V Power Input / Power Positive Terminal |
| 1 — CURR | Current Sense / Current Sense Output |
| 2 — TEMP | Temperature Sense / Temperature Sense Output |
| 3 — Enable | Amplifier Enable / LVTTL 0/+3.3 V, high level (3.3 V) enables the amplifier, low level (0 V) disables it, disabled by default |
| 4 — GND | Power Ground / Ground |
| 5 — RSVD | Reserved / No Connection (NC) |
Features | |
| Compact size and light weight | |
| Instantaneous ultra-wideband operation (2000 MHz ~ 6000 MHz) | |
| 50 Ω input and output matched | |
| Built-in over-temperature, over-voltage and over-current protection | |
| Enable control function | |
The OTY0206P100 solid-state power amplifier covers 2 GHz to 6 GHz with a saturated output power of ≥100 W (typ. 120 W) and power gain of ≥50 dB (typ. 51 dB) into a 50 Ω input/output match, with gain flatness of ±2 dB. It operates from +24 V to +32 V DC (typ. +28 V DC, typ. 20 A at 100 W output) and includes an enable control input plus built-in protection against over-temperature, over-voltage and over-current, shutting down at 85°C ±5°C. Housed in a compact 180 x 120 x 25 mm, ≤2 kg module with SMA-K RF input, N-K RF output and a D-Sub 7W2 power/control connector, it is well suited to jamming, EMC, and test and measurement applications.
