2-8GHz Insertion Loss 1.60dB SMA Connector 0° Power Divider
A-series power dividers are 0° power dividers with SMA connectors
Full series coverage from 0.5-18GHz
Small size, low loss, low VSWR, high isolation
High product consistency suitable for large-volume delivery
Used for 6-way microwave signal distribution and combination
Applications: Communication, Electronic Warfare, Radar, Navigation, Test & Measurement systems
Standardized product, customizable upon request
- Description
- Datasheet

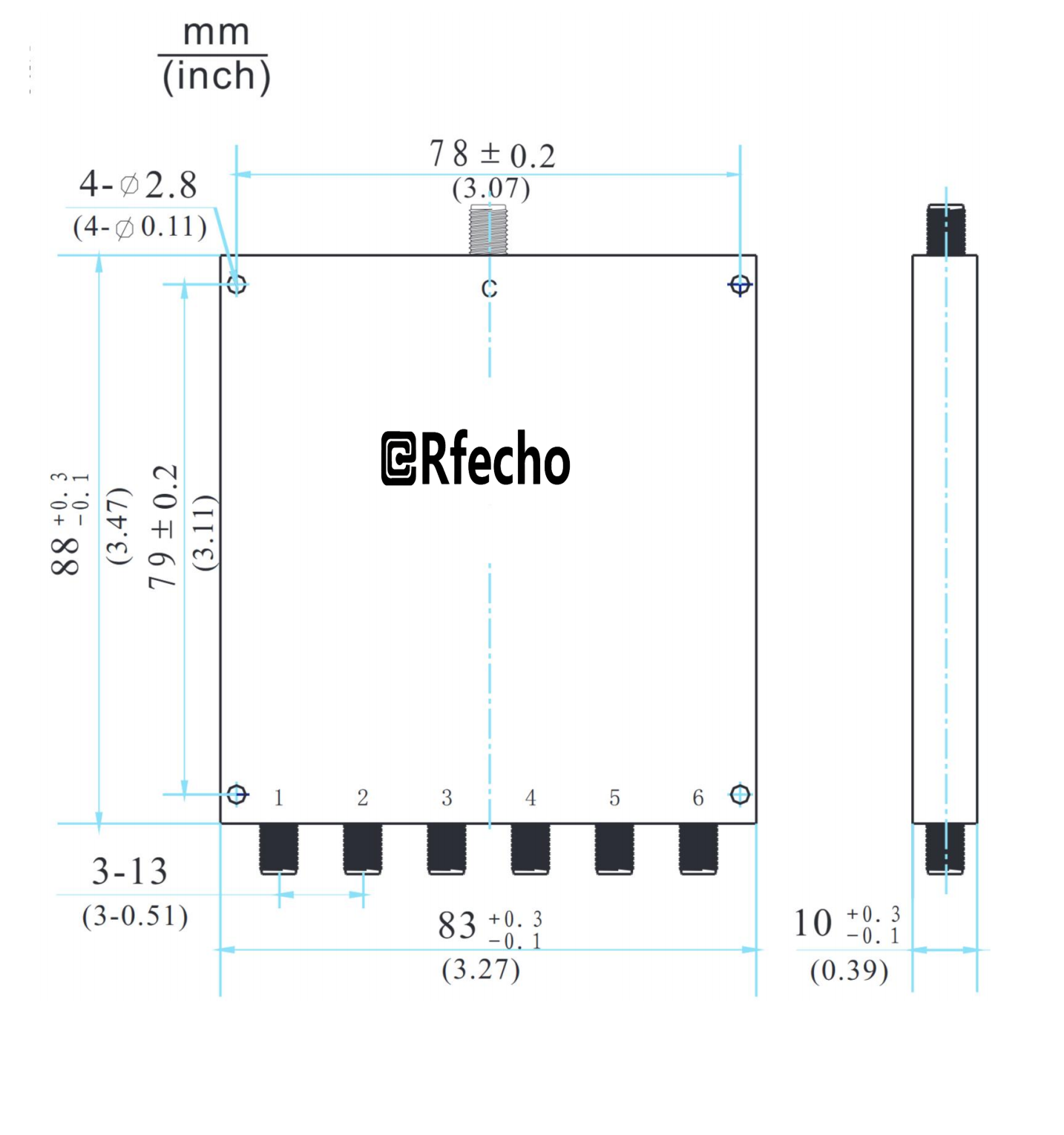

- Outline
- Reviews (0)
Description

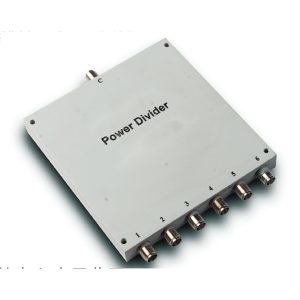

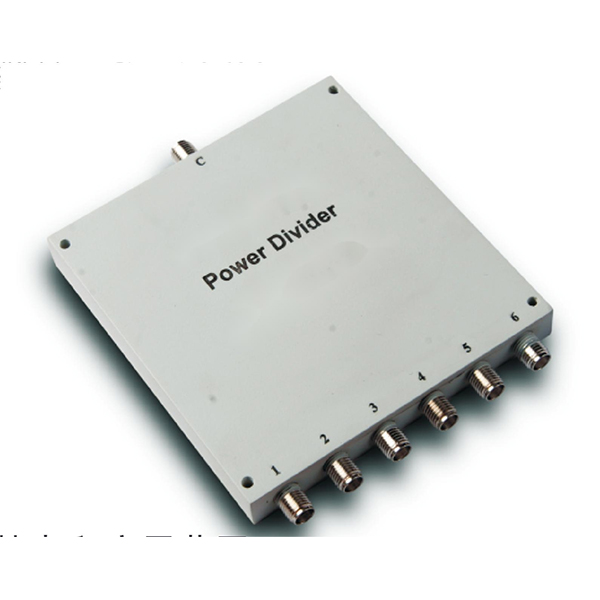

The OPD-A0623 is a 6-way SMA power divider covering the2-8GHz frequency range. It features low insertion loss, highisolation, and excellent amplitude/phase balance. Designedfor high reliability in communication, radar, and electronicwarfare systems, this divider offers consistent performancein a compact form factor.
OPD-A0623 |
|
|
2-8GHz Insertion Loss 1.60dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
1.60dB |
|
Isolation |
17dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±1.00dB |
|
Phase Balance |
±8° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.4 |
|
Output VSWR |
1.3 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
A-series power dividers are 0° power dividers with SMA connectors |
|
|
Full series coverage from 0.5-18GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
High product consistency suitable for large-volume delivery |
|
|
Used for 6-way microwave signal distribution and combination |
|
|
Applications: Communication, Electronic Warfare, Radar, Navigation, Test & Measurement systems |
|
|
Standardized product, customizable upon request |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
