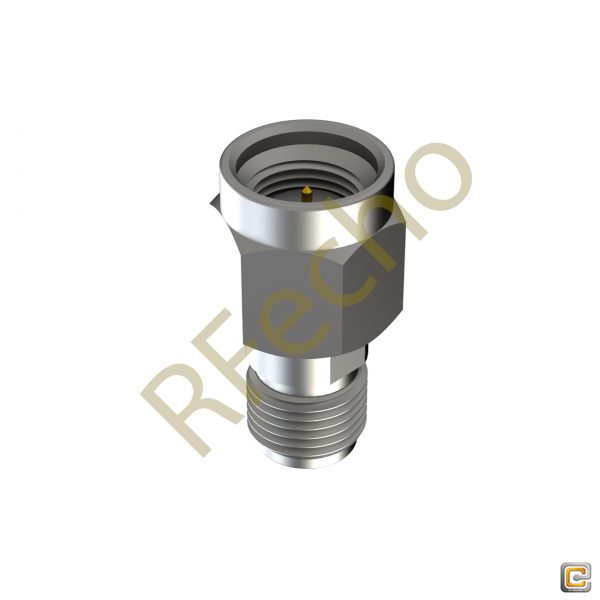

2.92mm 40 GHz, 0.012″ Accept Pin Diameter, Thread In Male Connector

2.92mm 40 GHz, 0.012″ Accept Pin Diameter, Thread In Male Connector

This Model D361-P12-Y02 is a Male connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.

2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is Thread In mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.012″inches.

Description

SPEC

2.92mm (K) Connectors

2.92mm 40 GHz, 0.012″ Accept Pin Diameter, Thread In NA Mounting Flange Male Connector

D361-P12-Y02

This Model D361-P12-Y02 is a Male connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.

2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is Thread In mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.012″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

Flange (inch)

NA

Mounting

Thread In

Accept Pin Diameter (inch)

0.012″

Gender

Male

Features

Low VSWR

Free through 40 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

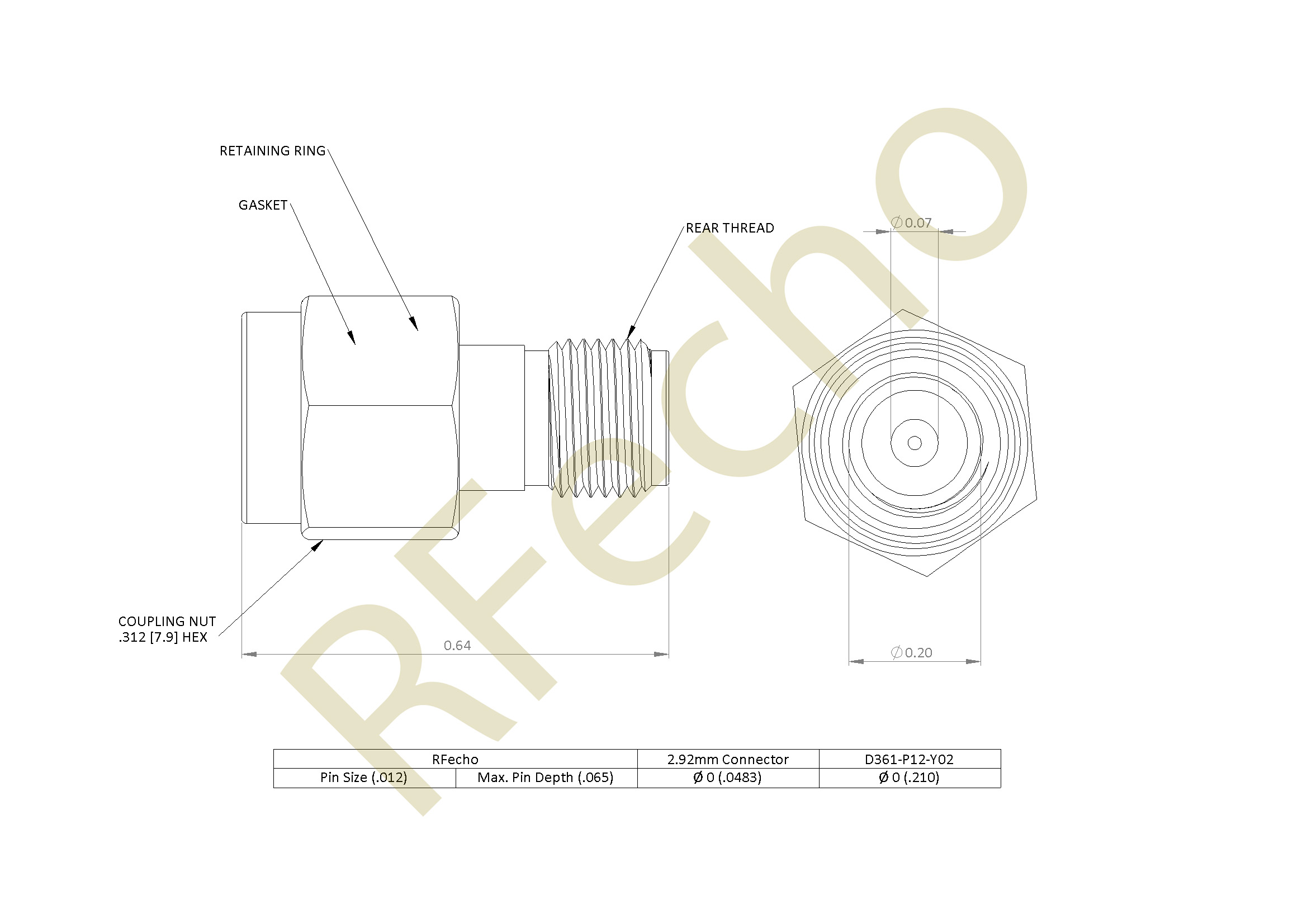

Outline

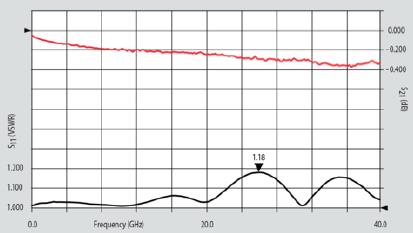

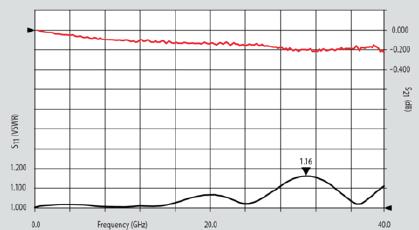

Plot

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

Flange (inch)

NA

Mounting

Thread in

Accept Pin Diameter (inch)

0.012″

Gender

Male
