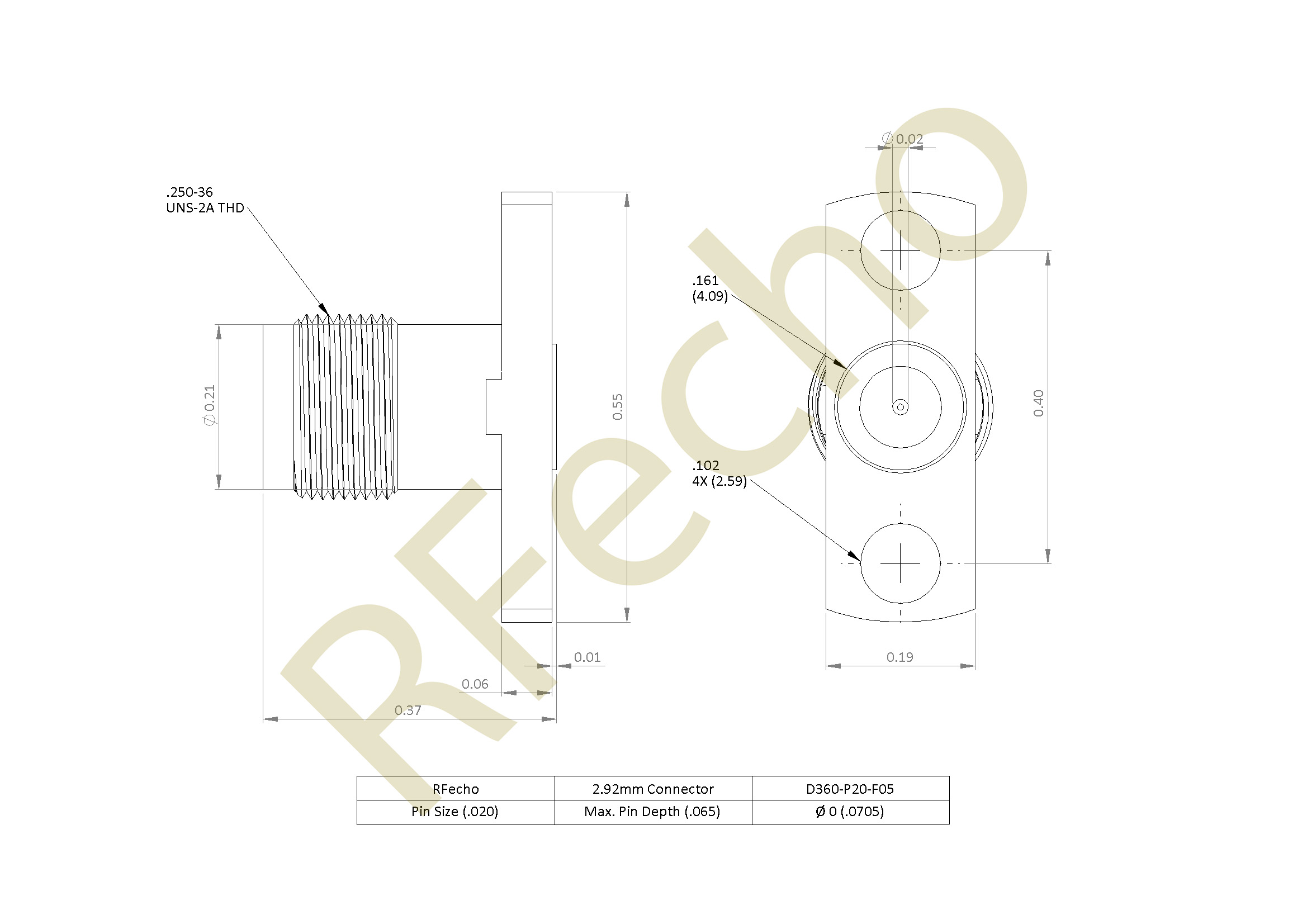

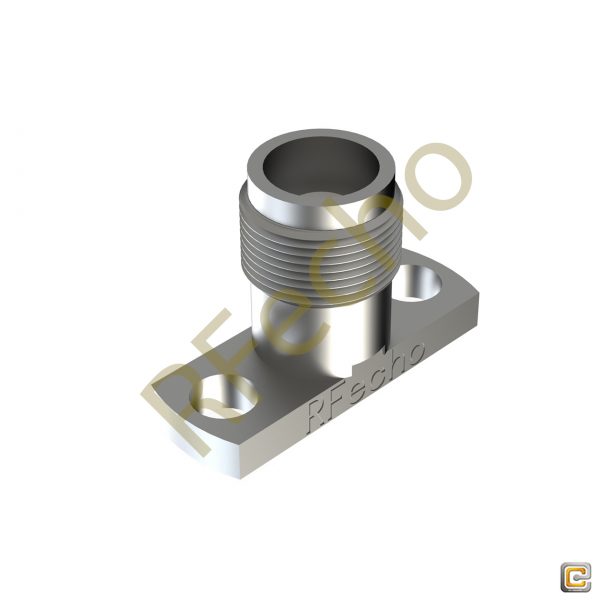

2.92mm 40 GHz, 0.02″ Accept Pin Diameter, 2 Hole .550″ Long Mounting Flange Female Connector

This Model D360-P20-F05 is a Female connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.

2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is 2 Hole .550″ Long mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.02″inches.

Description

2.92mm (K) Connectors

2.92mm 40 GHz, 0.02″ Accept Pin Diameter, 2 Hole .550″ Long Mounting Flange Female Connector

D360-P20-F05

This Model D360-P20-F05 is a Female connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.

2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is 2 Hole .550″ Long mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.02″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

Flange (inch)

.550″ Long

Mounting

2 Hole

Accept Pin Diameter (inch)

0.02″

Gender

Female

Features

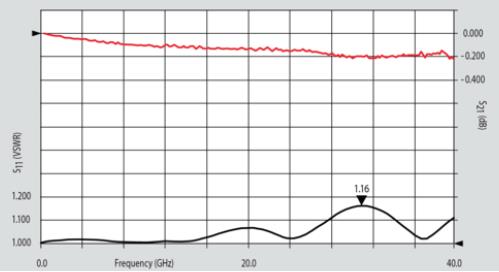

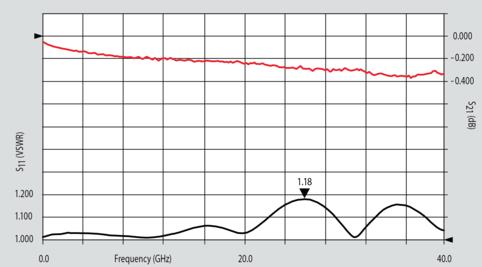

Low VSWR

Free through 40 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

Flange (inch)

.550″ Long

Mounting

2 Hole

Accept Pin Diameter (inch)

0.02″

Gender

Female
