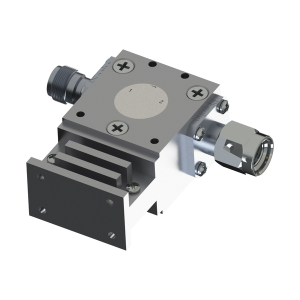

2 GHz to 4 GHz, 0.8 dB Insertion Loss, 15.0 dB Isolation, SMA Waveguide Series Isolator-OH2A104-2
Wide frequency coverage from 5.5GHz to 110GHz
Bandwidth options: 10%, 20%, 30%, 40%, 2 times
Peak power: 1W to 40MW
Average power: 1W to 100KW
Applications include civil, military, aviation, and space technology
Customizable according to customer requirements
High performance and high reliability
- Description
- Datasheet

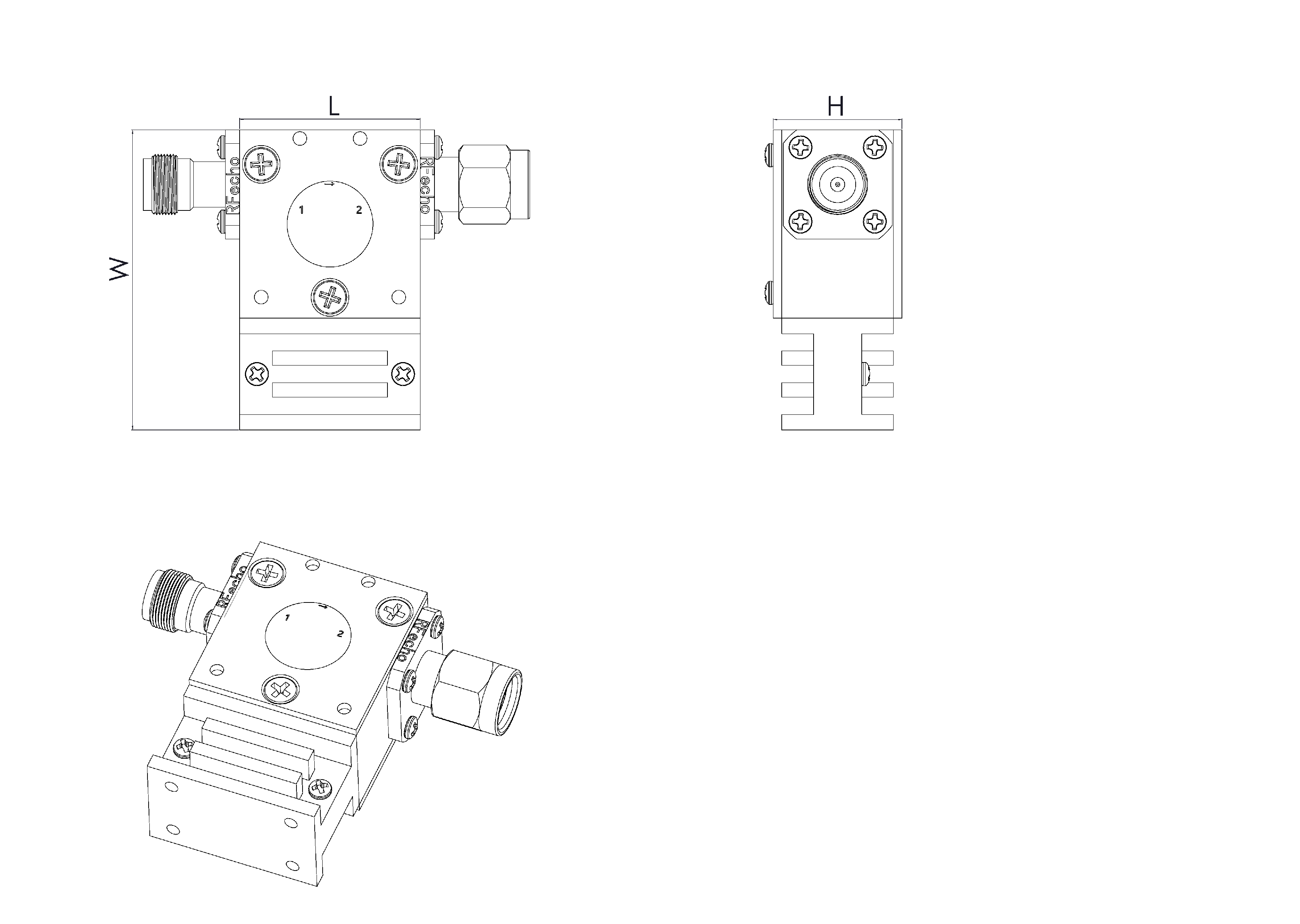

- Outline
- Reviews (0)
Description
The product named OH2A104 is highperformance A06 wideband product user guide variant, offering wide frequency coverage and robust performance for various technological applications.
OH2A104-2 | |
| 2 GHz to 4 GHz, 0.8 dB Insertion Loss, 15.0 dB Isolation, SMA Waveguide Series Isolator-OH2A104-2 | |
Property | Value |
| Frequency (MHz) | 2000-4000 |
| Isolation (dB) | 15 |
| Insertion Loss (dB) | 0.8 |
| VSWR | 1.5 |
| Power (W) | 100 |
| Reverse Power (W) | 100 |
| Connector | SMA |
| Operating Temp ( degC) | 34 |
Features | |
| Wide frequency coverage from 5.5GHz to 110GHz | |
| Bandwidth options: 10%, 20%, 30%, 40%, 2 times | |
| Peak power: 1W to 40MW | |
| Average power: 1W to 100KW | |
| Applications include civil, military, aviation, and space technology | |
| Customizable according to customer requirements | |
| High performance and high reliability | |
Applications | |
| Offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors. | |
