20 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna
$1435
Frequency: 140-220GHz
Gain: 20dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 18° / V 18°
Waveguide: WR-05
Material: Cu
High Return Loss
This is a Millimeter SGH Antenn
OLB-05-20 Millimeter SGH Antenna supports linear polarized waveforms Linear.
- Description
- Datasheet

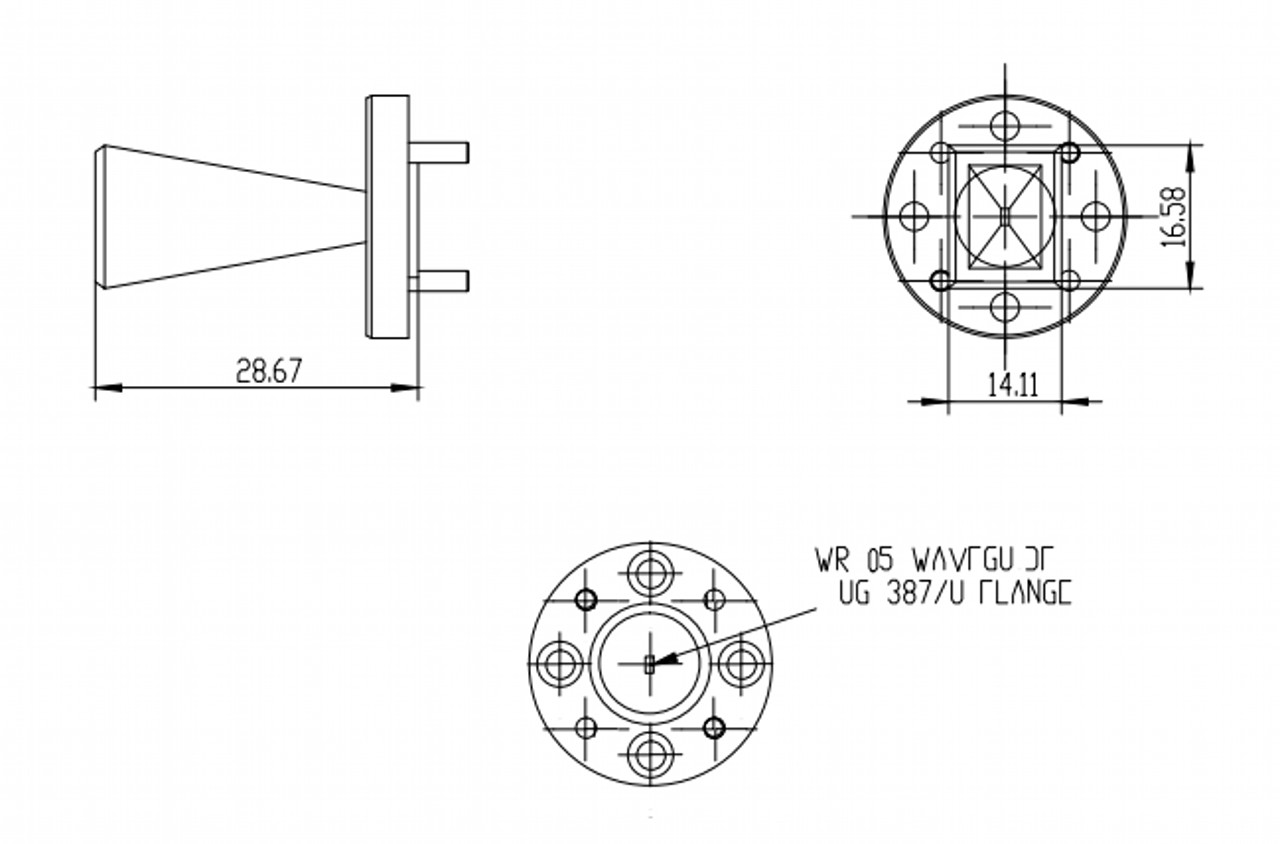

- Dimensions

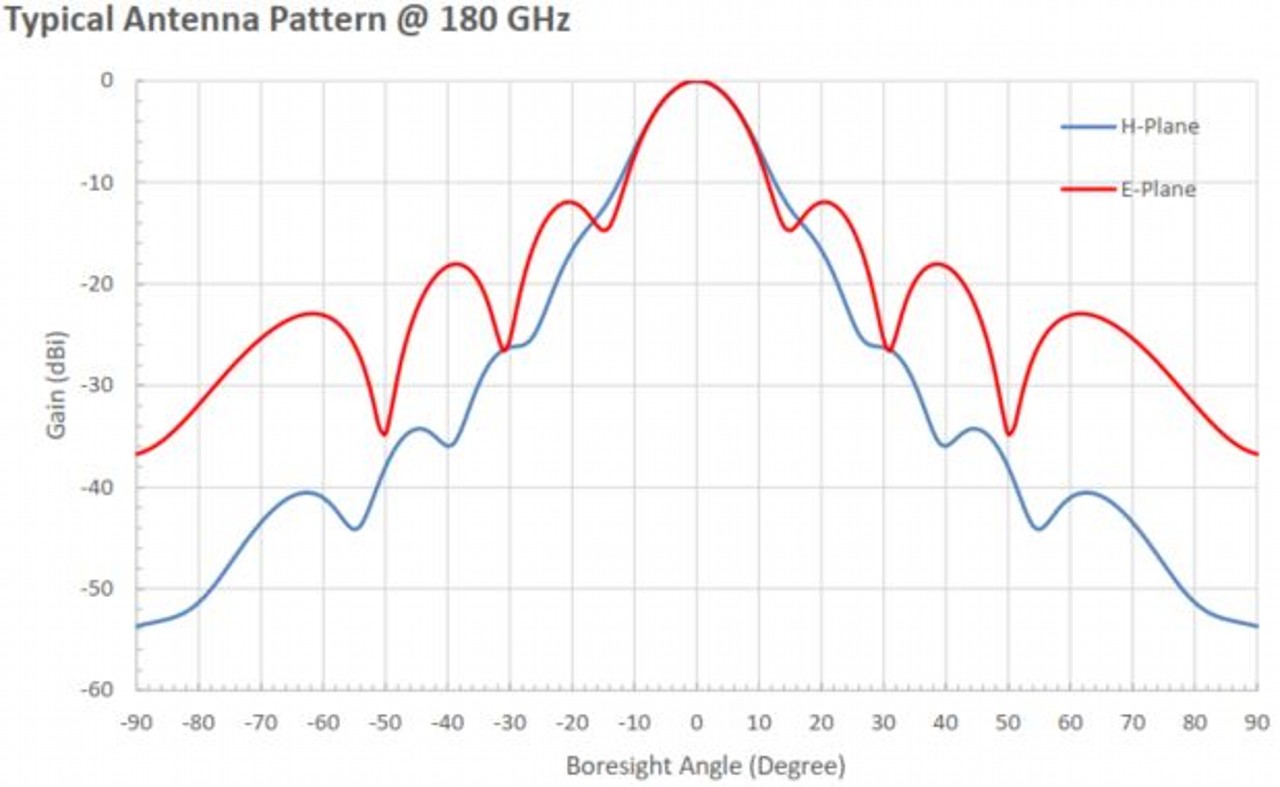

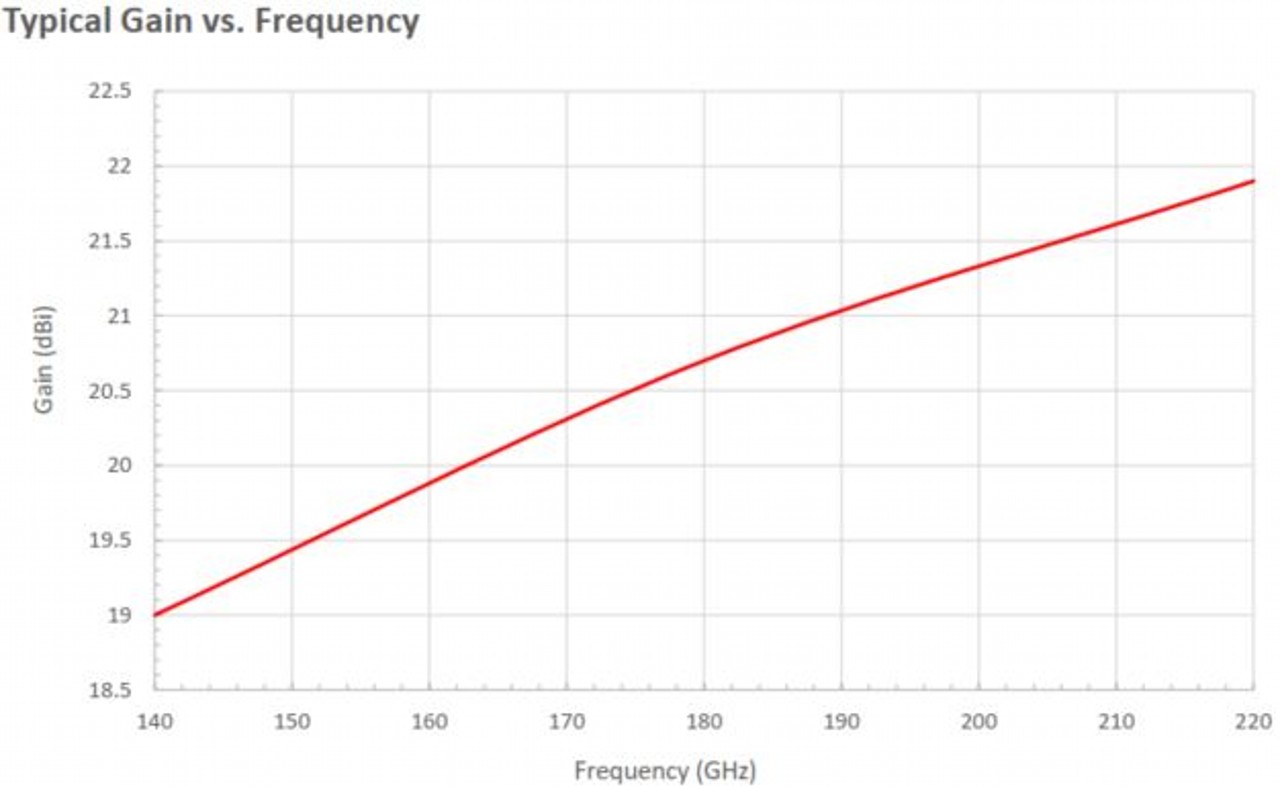

- Plot
- Additional information
- Reviews (0)
Description
Millimeter SGH Antenna |
|
20 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna |
|
OLB-05-20 |
|
This model OLB-05-20 is a Millimeter SGH Antenna, operating frequency range is 140 GHz to 220 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-05 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
Property |
Value |
Min. Frequency (GHz) |
140 |
Max. Frequency (GHz) |
220 |
Gain(dBi) |
20 |
HPBW 3 dB Beamwidth |
H 18° / V 18° |
Waveguide |
WR-05 |
Flange |
UG-387/U-M Flange |
Material |
Cu |
Polarization |
Linear |
Impedance (Ω) |
50 |
Features |
|
Rectangular Waveguide Interface |
|
Precisely Machined and Gold Plated |
|
Linear Polarization |
|
High Return Loss |
|
Applications |
|
Antenna Ranges |
|
Antenna Gain Measurements |
|
System Setup |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 26 × 11.5 × 14.5 cm |
Min. Frequency (GHz) | 140 |
Max. Frequency (GHz) | 220 |
Gain (dBi) | 20 |
Flange | |
HPBW 3 dB Beamwidth | |
Waveguide | |
Material | |
Polarization | |
Impedance (Ω) |
