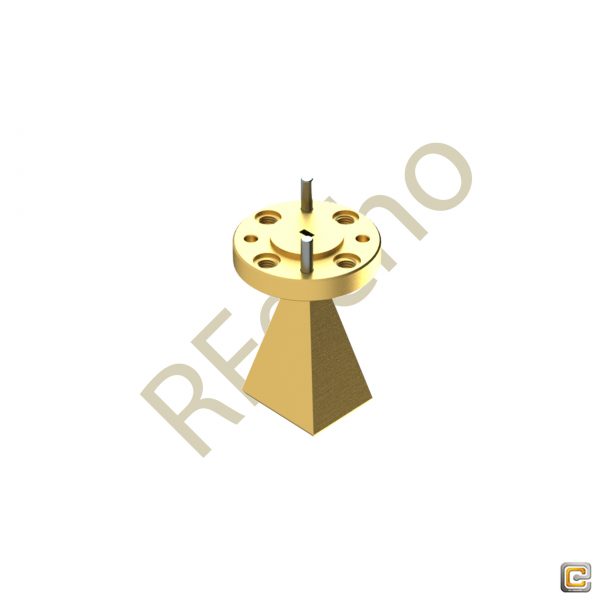

20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

$655 $557

This model OLB-10-20 is a Millimeter SGH Antenna, operating frequency range is 75 GHz to 110 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-10 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

OLB-10-20

This model OLB-10-20 is a Millimeter SGH Antenna, operating frequency range is 75 GHz to 110 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-10 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

75

Max. Frequency (GHz)

110

Gain(dBi)

20

HPBW 3 dB Beamwidth

H 18° / V 18°

Waveguide

WR-10

Flange

UG-387/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Rectangular Waveguide Interface

Precisely Machined and Gold Plated

Linear Polarization

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

Outline

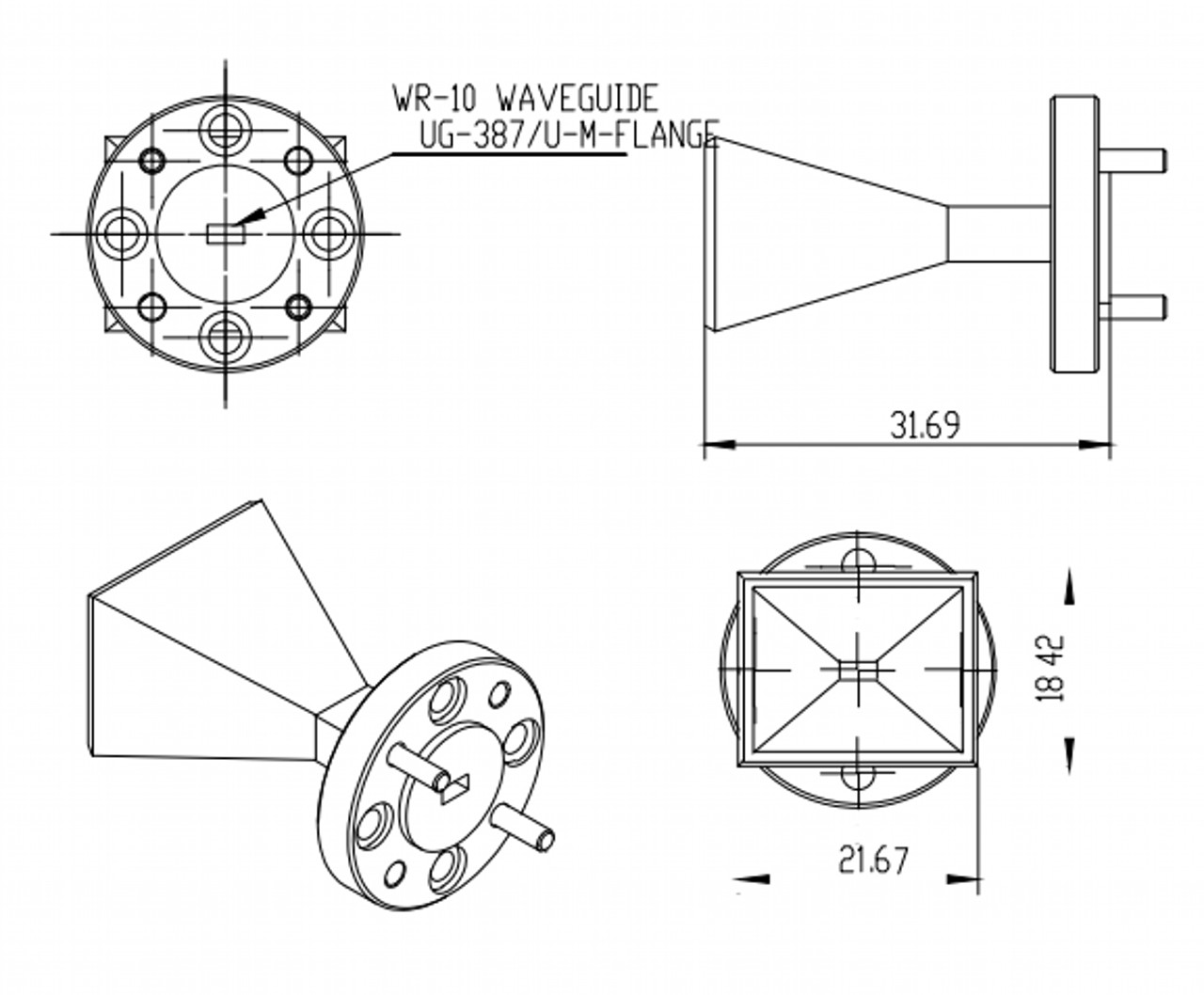

OLB 10 20 outline 20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

Plot

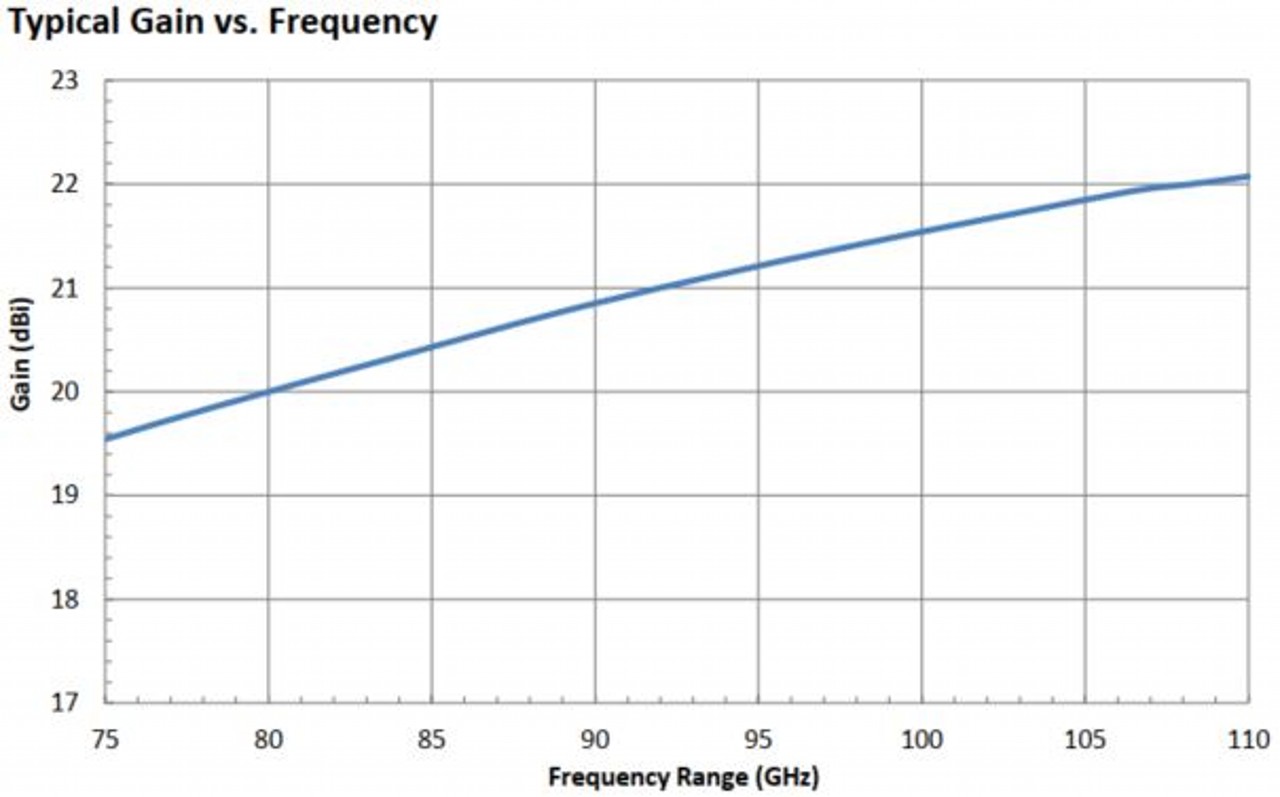

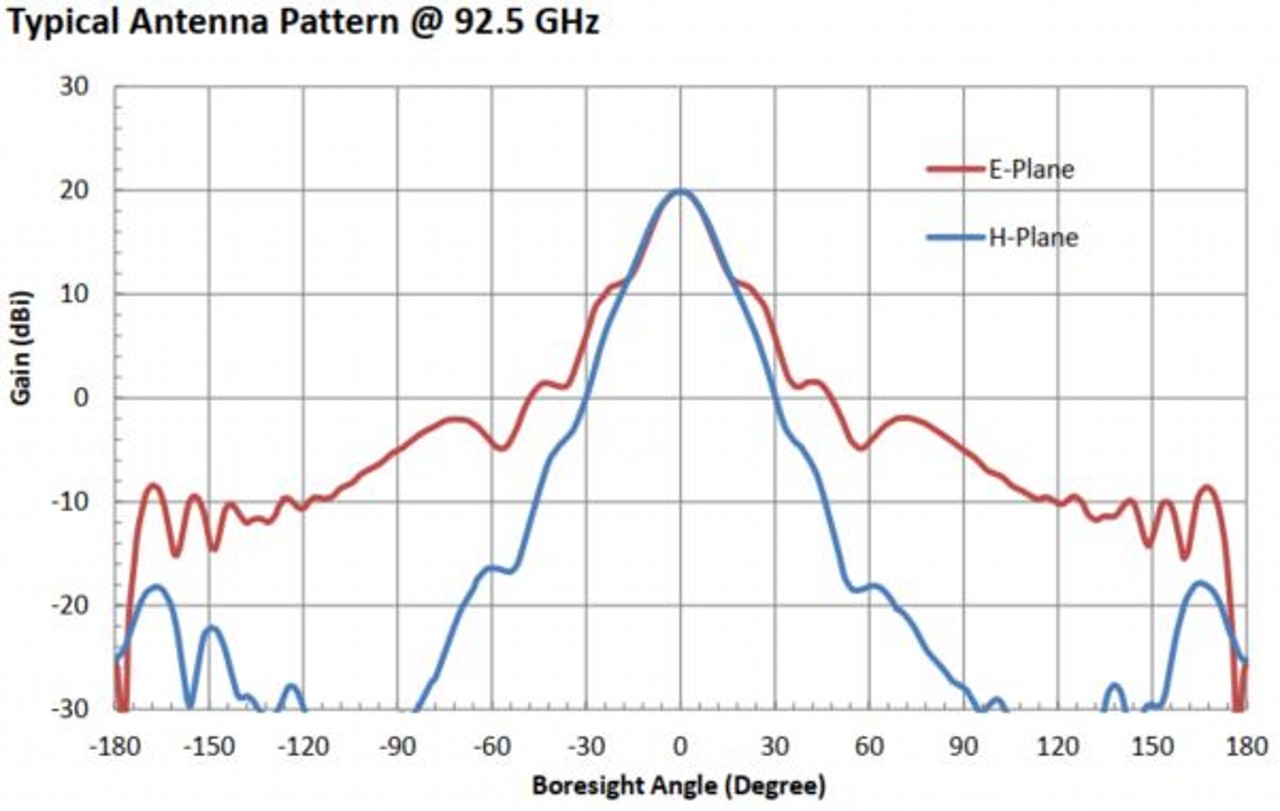

OLB 10 20 plot1 20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH AntennaOLB 10 20 plot2 20 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna

Additional information

Min. Frequency (GHz)

75

Max. Frequency (GHz)

110

Gain (dBi)

20

Flange

HPBW 3 dB Beamwidth

Waveguide

Material

Polarization

Impedance (Ω)
