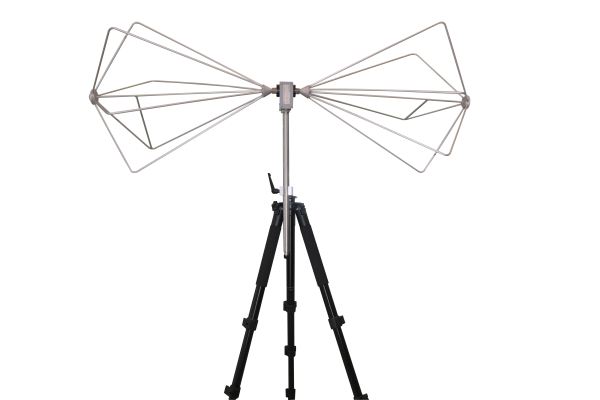

The OBC-022-1KW-4 is a versatile, vertically polarized omnidirectional antenna, covering a wide frequency range from 20 MHz to 200 MHz. One of the key advantages of this antenna is its pattern stability, which provides reliable performance in demanding EMC environments. Constructed from durable aluminum alloy and powder-coated for enhanced corrosion resistance, this model is built to last, making it suitable for both laboratory and field-testing scenarios. With its broadband nature, the antenna eliminates the need for time-consuming tuning of antenna elements to half-wavelengths, a significant improvement over traditional half-wave dipole antenna. This feature allows for an enormous reduction in measurement time, making it an ideal solution for both scanning and automatic measurement systems in EMC testing environments.

The OBC-022-1KW-4 is essential for various applications, particularly in mid-frequency EMC testing. Firstly, this antenna is ideal for testing radiated emissions and susceptibility in devices operating in the HF (High Frequency) and VHF (Very High Frequency) bands. It is widely used to assess products like consumer electronics, automotive systems, and telecommunications devices, ensuring they meet EMC standards. This model is also well-suited for VHF signal monitoring, covering most of the VHF band. It is crucial for FM radio broadcasting, television broadcasting, two-way radio communication, and air traffic control systems, making the antenna perfect for monitoring and testing broadcast and communication systems. Additionally, the antenna is vital for telecommunication and broadcasting. Its broad frequency coverage allows for testing broadcast transmitters (such as FM and TV stations) and receivers, ensuring they comply with regulatory standards for radiated emissions and electromagnetic immunity. Lastly, the OBC-022-1KW-4 is often employed in broadband measurement applications. It is ideal for testing environments that involve multiple signal sources or need to evaluate a broad spectrum, making it a versatile tool for comprehensive EMC testing and broadband signal monitoring.https://www.rfecho.com/product-category/emc-antenna/

Description

The OBC-022-1KW-4 is a versatile, vertically polarized omnidirectional antenna, covering a wide frequency range from 20 MHz to 200 MHz. One of the key advantages of this antenna is its pattern stability, which provides reliable performance in demanding EMC environments. Constructed from durable aluminum alloy and powder-coated for enhanced corrosion resistance, this model is built to last, making it suitable for both laboratory and field-testing scenarios. With its broadband nature, the antenna eliminates the need for time-consuming tuning of antenna elements to half-wavelengths, a significant improvement over traditional half-wave dipole antenna. This feature allows for an enormous reduction in measurement time, making it an ideal solution for both scanning and automatic measurement systems in EMC testing environments.

The OBC-022-1KW-4 is essential for various applications, particularly in mid-frequency EMC testing. Firstly, this antenna is ideal for testing radiated emissions and susceptibility in devices operating in the HF (High Frequency) and VHF (Very High Frequency) bands. It is widely used to assess products like consumer electronics, automotive systems, and telecommunications devices, ensuring they meet EMC standards. This model is also well-suited for VHF signal monitoring, covering most of the VHF band. It is crucial for FM radio broadcasting, television broadcasting, two-way radio communication, and air traffic control systems, making the antenna perfect for monitoring and testing broadcast and communication systems. Additionally, the antenna is vital for telecommunication and broadcasting. Its broad frequency coverage allows for testing broadcast transmitters (such as FM and TV stations) and receivers, ensuring they comply with regulatory standards for radiated emissions and electromagnetic immunity. Lastly, the OBC-022-1KW-4 is often employed in broadband measurement applications. It is ideal for testing environments that involve multiple signal sources or need to evaluate a broad spectrum, making it a versatile tool for comprehensive EMC testing and broadband signal monitoring.https://www.rfecho.com/product-category/emc-antenna/

Antenna Specs

20 MHz to 200 MHz, N Female

OBC-022-1KW-4

Property

Value

Min. Frequency (MHz)

20

Max. Frequency (MHz)

200

Impedance (?)

50

Power Handling (W)

1000

Balun Type Transform Ratio

4:1

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

Biconical Antenna 20 MHz to 200 MHz for EMI/EMC Testing

Additional information

Min. Frequency (MHz)

20

Max. Frequency (MHz)

200

Impedance (Ω)

50

Power Handling (W)

1000

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

4:01

Connection Type

N Female
