20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY21-CV-UT

100 kHz to 40 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY11-BH-ML
100 kHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY21-CH-UT
0 out of 5
( There are no reviews yet. )

$5303.03

  • Frequency range: 20 MHz to 8 GHz
  • Maximum real-time bandwidth: 80 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45)

The OZY21-CV-UT combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet. Its maximum real-time bandwidth is 80 MHz, and its panorama scan speed is better than 100 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.

SKU: OZY21-CV-UT Category: Digitized RF Receiver Modules
Add to Wishlist

Description

The OZY21-CV-UT combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet. Its maximum real-time bandwidth is 80 MHz, and its panorama scan speed is better than 100 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.

OZY21-CV-UT
20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY21-CV-UT

Property Value
Frequency Range 20 MHz to 8 GHz
Maximum Real-Time Bandwidth 80 MHz
Primary Functions FFM, PSCAN, FSCAN, MULTN, DPS
Frequency Accuracy Better than 0.5 ppm; better than 0.005 ppm (with GPS connected)
Phase Noise -95 dBc/Hz at 10 kHz offset (1 GHz carrier frequency)
Noise Figure ≤13 dB (20 MHz to 5999.99 MHz) ≤14 dB (5999.99 MHz to 8000 MHz)
Second-Order Intercept Point (IP2) Better than 45 dBm
Third-Order Intercept Point (IP3) Better than 10 dBm
IF Rejection Better than 85 dB
Image Rejection Better than 85 dB
Panorama Scan Speed Better than 100 GHz/s (RBW=25 kHz)
DDC Channel Configuration 1 wideband channel (80 MHz) + 4 narrowband channels (500 kHz each), standard
I/Q Data Acquisition Single-packet mode: continuous I/Q data within each packet; 8 to 250,000,000 complex samples. 32 bits per complex sample: 16-bit I and 16-bit Q. Continuous mode: with Gigabit Ethernet output only, I/Q data continuity is guaranteed at 10 MHz bandwidth.
Minimum Signal Duration for 100% Probability of Intercept (POI) 500 ns
Communication Interfaces Gigabit Ethernet (RJ45)
Power Consumption ≤17 W
Dimensions 110 × 85 × 26 mm
Operating Temperature -35 °C to +60 °C
Storage Temperature -40 °C to +70 °C
Features
  • Frequency range: 20 MHz to 8 GHz
  • Maximum real-time bandwidth: 80 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45)
Typical Applications
  • Radio spectrum management
  • General spectrum analysis
  • Electromagnetic environment support for low-altitude applications
  • Signal reconnaissance and analysis
  • Satellite navigation monitoring
  • OEM integration into customer systems
Product-Family Overview

The operating principle and features describe the overall product family. The listed performance figures do not apply to every model. For the specifications of this model, refer to the technical specifications on pages 2-3 of its datasheet.

See page 4 of the datasheet for the operating principle and product-family highlights.

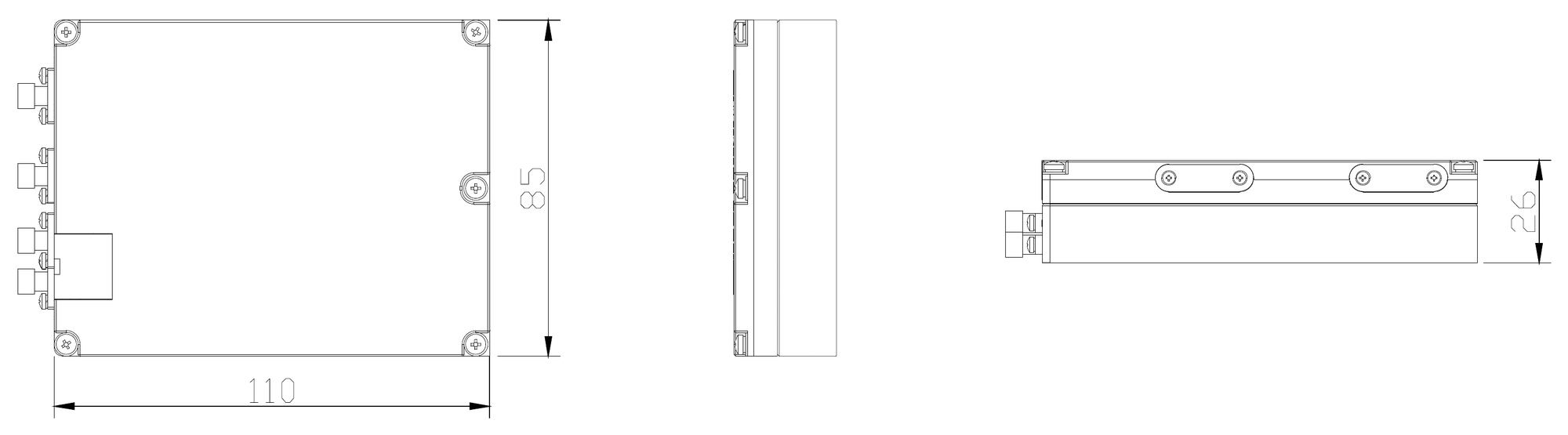

20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY21-CV-UT-Outline
