200 MHz to 40 GHz, RS-232 Low Phase Noise Frequency Synthesizer – OLFS11-0240L-M
- Output frequency range: 200 MHz–40 GHz
- Frequency step: 0.2 Hz
- Frequency switching time: ≤200 µs; communication time excluded
- Output power: -40 to +10 dBm
The OLFS11-0240L-M is a low phase noise frequency synthesizer with an output frequency range of 200 MHz to 40 GHz. Control interface: RS-232. The frequency step is 0.2 Hz. Frequency switching time: ≤200 µs; communication time excluded. Output power: -40 to +10 dBm. Dimensions: ≤146.1 × 95 × 21 mm; 3U PXI single-slot dimensions. Weight: ≤0.8 kg. Operating temperature: -40 to +70 °C.
- Description
- Datasheet

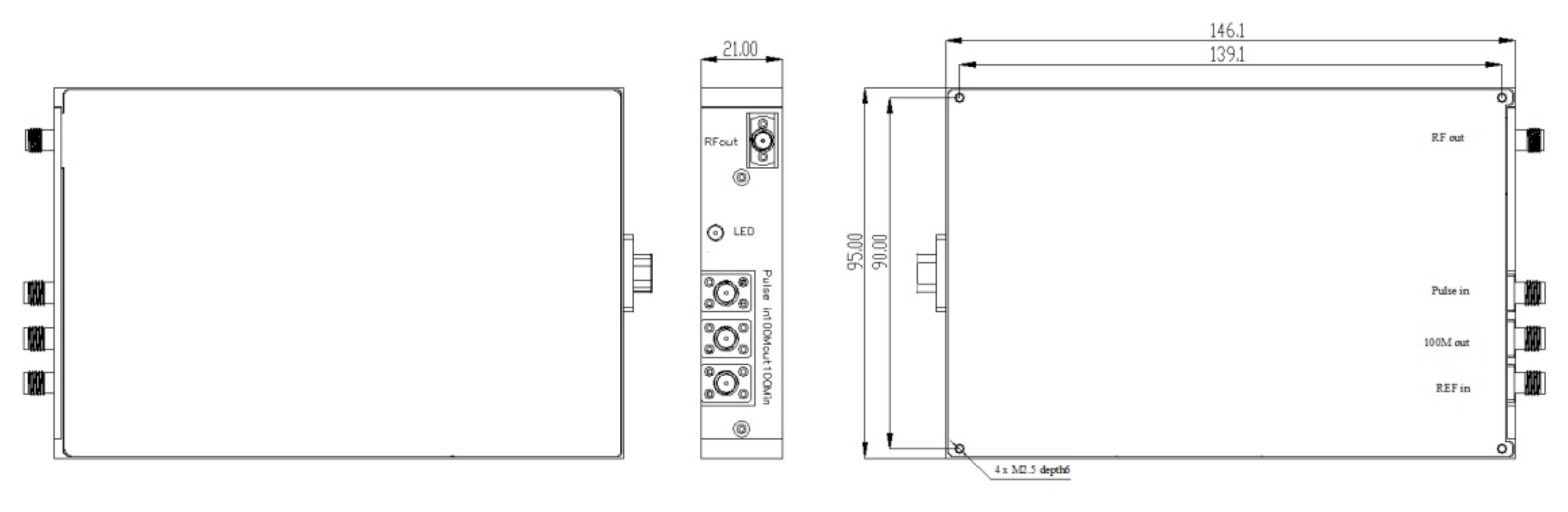

- Outline
- Reviews (0)
Description
The OLFS11-0240L-M is a low phase noise frequency synthesizer with an output frequency range of 200 MHz to 40 GHz. Control interface: RS-232. The frequency step is 0.2 Hz. Frequency switching time: ≤200 µs; communication time excluded. Output power: -40 to +10 dBm. Dimensions: ≤146.1 × 95 × 21 mm; 3U PXI single-slot dimensions. Weight: ≤0.8 kg. Operating temperature: -40 to +70 °C.
| OLFS11-0240L-M | |
| 200 MHz to 40 GHz, RS-232 Low Phase Noise Frequency Synthesizer – OLFS11-0240L-M | |
| Property | Value |
|---|---|
| Output frequency range | 200 MHz–40 GHz |
| Frequency step | 0.2 Hz |
| Frequency switching time | ≤200 µs; communication time excluded |
| Output power | -40 to +10 dBm |
| Output power stability | ±1 dB (0 to +10 dBm); ±2 dB (-40 to 0 dBm) |
| Frequency stability | 2 × 10^-7; follows external reference when connected |
| Frequency accuracy | 2 × 10^-7; follows external reference when connected |
| Spurious level | ≤-70/-65 dBc (typical/maximum; 0.2–20 GHz); ≤-65/-60 dBc (typical/maximum; 20–40 GHz); at 0 dBm |
| Harmonic level | ≤-20 dBc at 0 dBm |
| Supply voltage | +12 V |
| Supply current | 2 A startup; 1.6 A steady state |
| Control interface | RS-232 |
| Operating temperature | -40 to +70 °C |
| Storage temperature | -55 to +85 °C |
| Dimensions | ≤146.1 × 95 × 21 mm; 3U PXI single-slot dimensions |
| Weight | ≤0.8 kg |
| Reference connector | SMA-KFD |
| RF output connector | 2.92 mm female |
| Power/control connector | J30J-9ZKP |
| Pulse modulation | Internal/external; depth ≥60 dBc at +10 dBm |
| Pulse width | 100 ns–10 ms |
| Pulse period | 500 ns–10 ms |
| Pulse rise/fall time | ≤50 ns / ≤100 ns |
| Phase Noise (dBc/Hz) | |
| 0.5 GHz | 100 Hz offset: -114; 1 kHz offset: -133; 10 kHz offset: -142; 100 kHz offset: -142; 1 MHz offset: -142 |
| 1 GHz | 100 Hz offset: -108; 1 kHz offset: -127; 10 kHz offset: -137; 100 kHz offset: -137; 1 MHz offset: -137 |
| 5 GHz | 100 Hz offset: -98; 1 kHz offset: -116; 10 kHz offset: -125; 100 kHz offset: -125; 1 MHz offset: -125 |
| 10 GHz | 100 Hz offset: -92; 1 kHz offset: -112; 10 kHz offset: -120; 100 kHz offset: -120; 1 MHz offset: -120 |
| 20 GHz | 100 Hz offset: -85; 1 kHz offset: -105; 10 kHz offset: -114; 100 kHz offset: -114; 1 MHz offset: -114 |
| 40 GHz | 100 Hz offset: -79; 1 kHz offset: -99; 10 kHz offset: -108; 100 kHz offset: -108; 1 MHz offset: -108 |
