23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

HOT

23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

$1,259

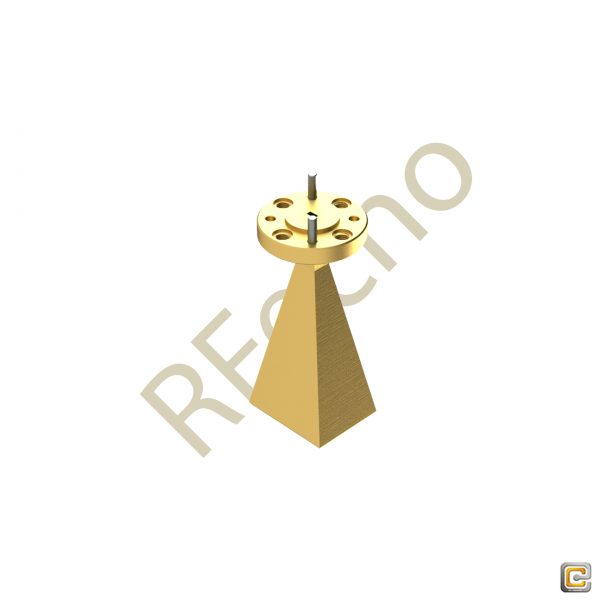

This model OLB-08-23 is a Millimeter SGH Antenna, operating frequency range is 90 GHz to 140 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-08 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

OLB-08-23

This model OLB-08-23 is a Millimeter SGH Antenna, operating frequency range is 90 GHz to 140 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-08 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

90

Max. Frequency (GHz)

140

Gain(dBi)

23

HPBW 3 dB Beamwidth

E 11° / H 13°

Waveguide

WR-08

Flange

UG-387/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Inline Configuration

Linear Polarization

DC Short Circuit at Input

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

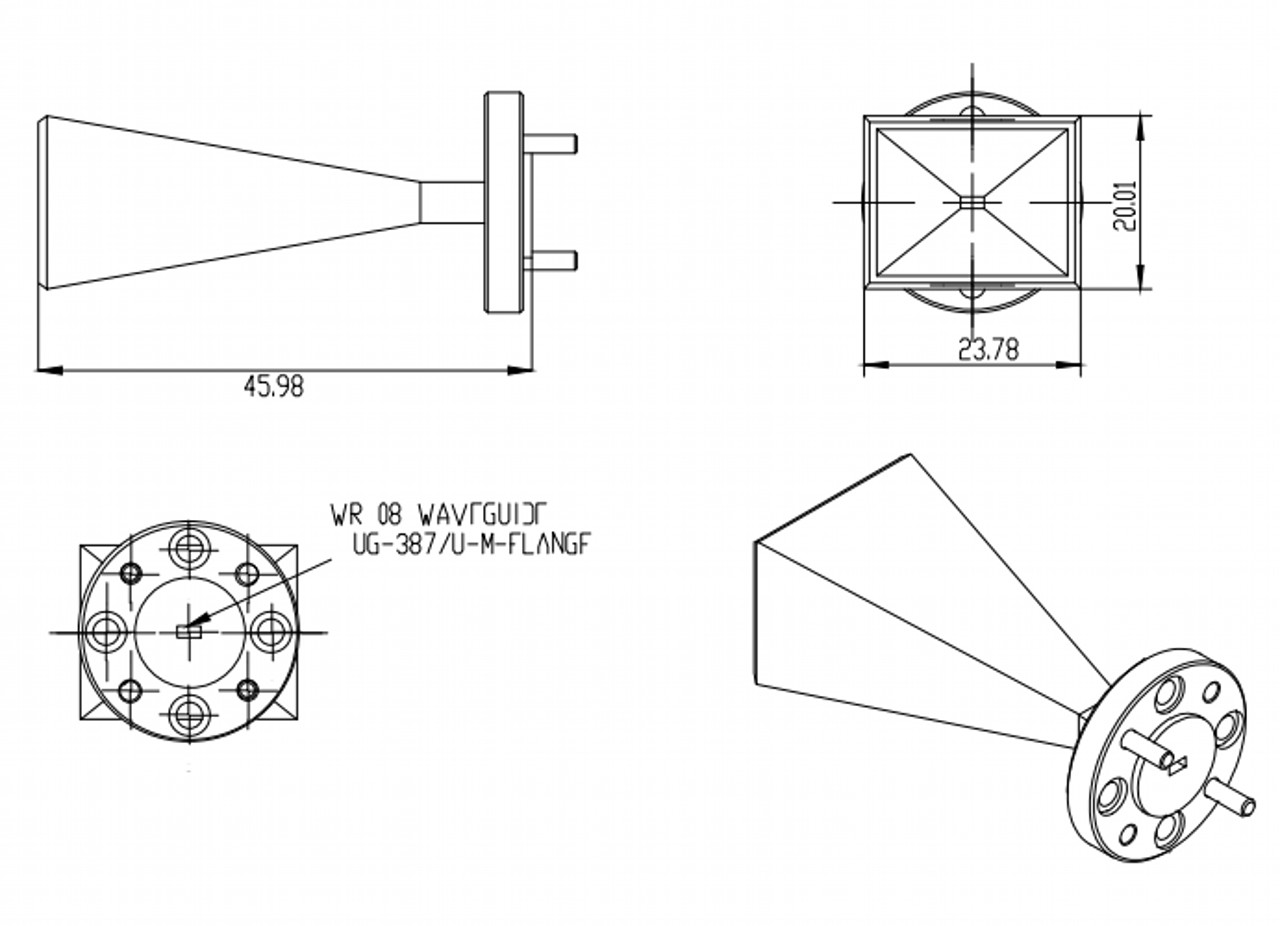

Outline

23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

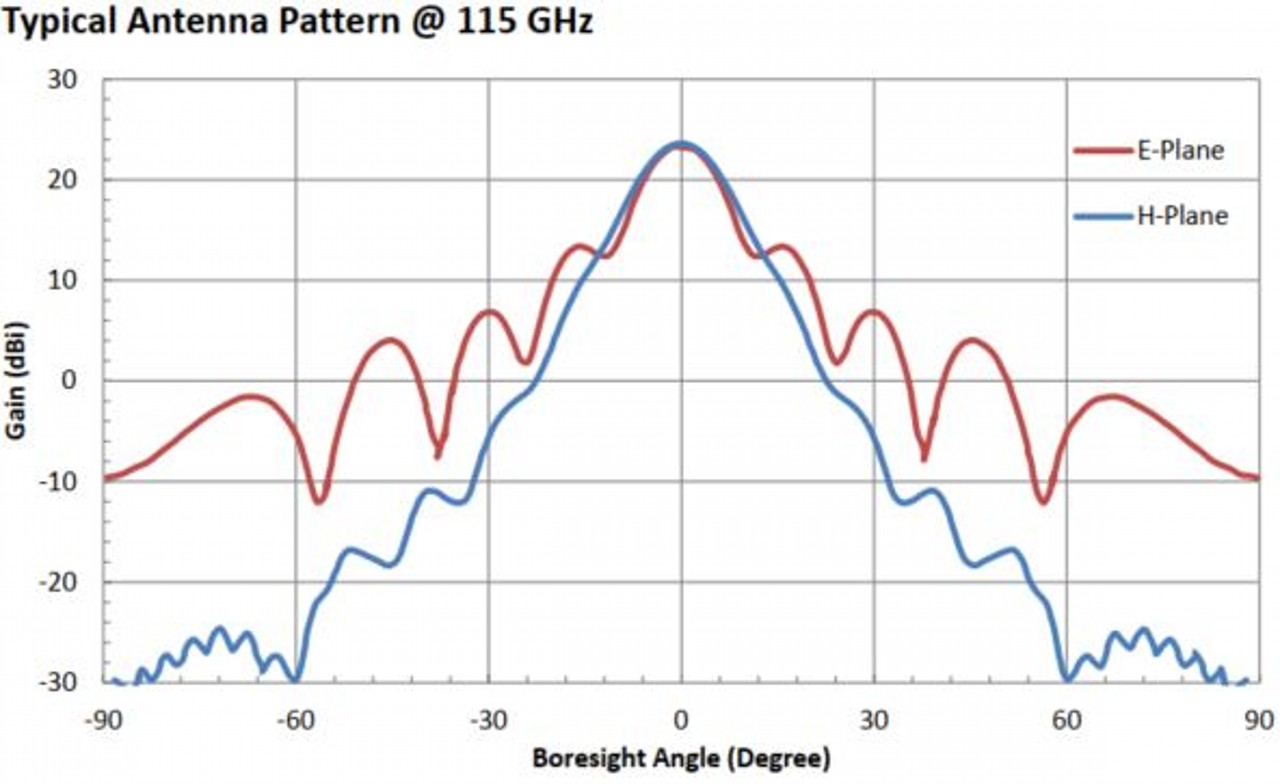

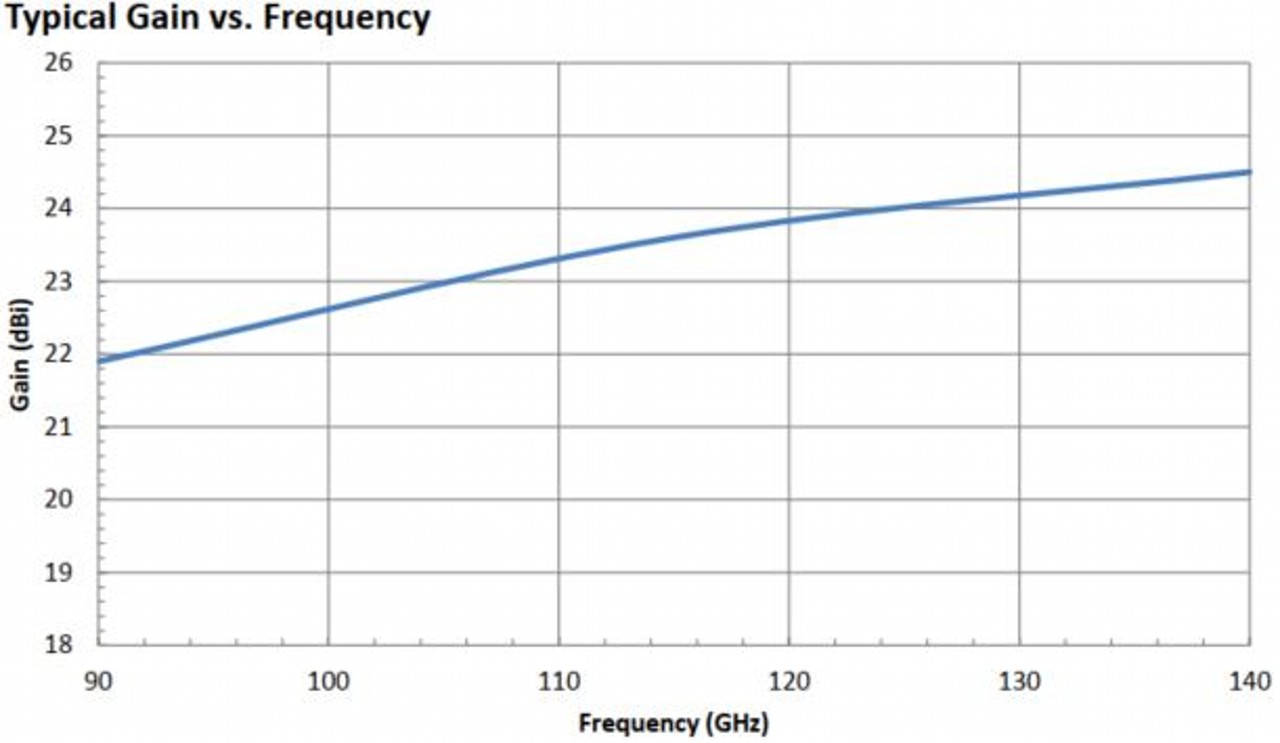

Plot

23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna23 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Millimeter SGH Antenna

Additional information

Min. Frequency (GHz)

90

Max. Frequency (GHz)

140

Gain (dBi)

23

Flange

UG-387/U-M Flange

HPBW 3 dB Beamwidth

E 11° / H 13°

Waveguide

WR-08

Material

Cu

Polarization

Linear

Impedance (Ω)

50
